Enamelled Wire Double Twist Copper Wire Bunching Machine/Equipment 7.5Kw

上架时间：2022-03-14

浏览次数：236

产品类型：

产品颜色：

产品价格：￥

Color:	Sky Blue	Fit For Bobbin:	Diameter 630mm
Fit Copper Wire:	0.12mm-0.52mm	Wire:	Core Wire,bare Copper Wire,tinned Wires,silver Jacketed Wires
Control Type:	Computer Control	Twist Direction:	S Or Z
High Light:	automatic wire twister , wire twist machine

DAHETEC Enamelled Wire Double Twist Copper Wire Bunching Machine/Equipment 7.5Kw

Quick Details:

Series for Model B normal wire high speed bunching machine and double twist bunching machine

Apply for twisting aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires),double twisting for core wires.

Characteristics:

Japan Technology, product in China

New arrival, mainly apply for stranding the electrical wire and automobile wire and other small section area conductor.

Characteristics:

1. High rotation speed, max up to 2600rpm, is the 1.6 times than normal (1600rpm);

2. Use PLC, hysteresis clutch take-up device imported from German, tension sensor ensure the stable tension and high quality stranding wire, especially for high quality tight line.

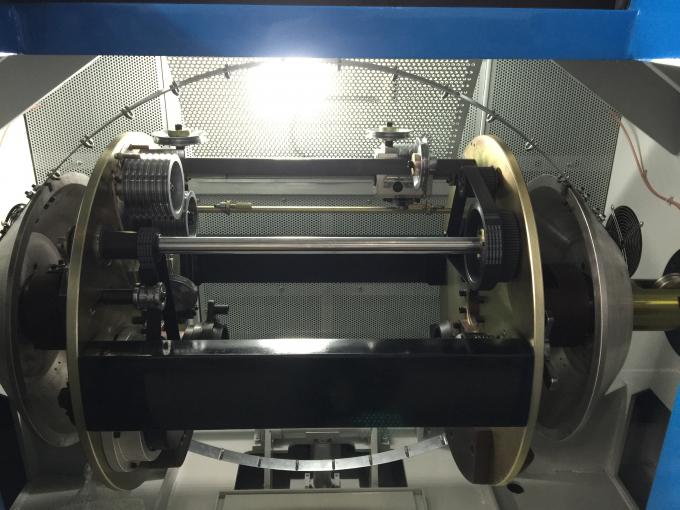

3. Use carbon fiber bow, strong rigidity, uneasy-transformation, small shock, light weight, reduce air friction for high quality of conductors;

4. Use synchronous belt drive, just to replace the guide wheel to change the lay distance, easy to operate.

5. Use spindle to calculate meters, only 0.01% error for a certain wire&cable.

6. Use PLC automatically lubricate spindle bearing, avoid injecting too much or too little grease. Get rid of unnormal noise and worn, cost down for maintenance.

Specifications:

Equipment models	DHT-650B-4
Twisting usage	It is applied to the twisting of aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires),double twisting for core wires.
Single wire dia(mm)	φ0.15-φ1.04
Stranding section area (mm²)	0.35-6.0
Core wire single wire dia	φ0.5-φ3.0
Core wire stranding outer dia	φ1.0-φ6.0
Pitch(mm)	11.6-100(34zones)
Direction of lay	Optional for right or left
Outer diaboreouter width	φ630φ56475 φ630φ127475
Max rotating speed	2000(4000twist)
Main motor power	7.5KW
Inverter power	7.5KW
Tension control method	Touch screen +PLC+ magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin
Magnetic powder clutch	5kgf
Protection	Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived.
Brake mode	Electromagnetic brake
Traversing method	Rolling ring drive units, winding pitch and breadth are adjustable
