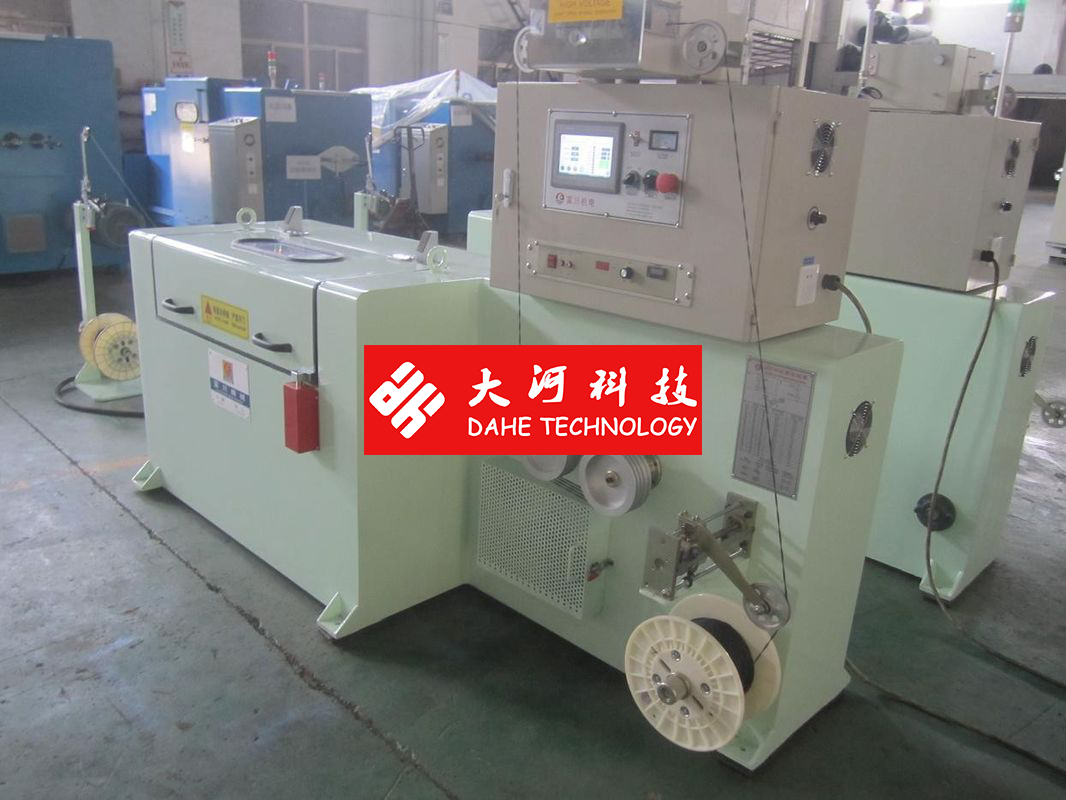

2500RPM Bare Copper Wire Twisting Machine 3.7Kw For High Frequency Data Cable

上架时间：2022-03-14

浏览次数：496

产品类型：

产品颜色：

产品价格：￥

Color:	Sky Blue	Fit For Bobbin:	Diameter 300mm
Fit Wire:	0.5-1.50mm	Wire:	Core Wire
Power:	3.7kw
High Light:	wire twister machine , metal twisting machine

DAHETEC 2500RPM Bare Copper Wire Buncher Machine Twisting Machine / Equipment 3.7Kw For High Frequency Data Cable

Quick Details:

Series for on-twist double twist machine

A. Parameter of DHT-300E high speed double twist bunching machine:

It is applied to produce the high frequency date cable.Lan cable(CAT6 cable),USB2.0

USB3.0,Cate-6e,Cate-7E,HDMI and other high speed date cable.

Characteristics:

1. Applied for wire :core wire φ0.5～φ1.5mm

2. Max outerside twisted wire: core wire φ1.0～φ3.0mm

3. Pay off bobbin:φ300*φ30* 160

4. Outer pay off type: active pay off

5. Max speed of bow:2500RPM

6. Double twist pitch:5～50mm

7. Main power:3.7KW inverter motor+inverter

8. Brake:adopt electromagnetic break, when meters arrived it will automatically stopped.

9. Tension control: PLC+magnetic powder clutch,with stable tension.

Specifications:

Equipment Models	DHT-200B	DHT-250B	DHT-300B		DHT-400B
Twisting Usage	Apply for the bunching of aerospace, medical instrument, cellphone,notebook PC and ultra fine conductor(above seven pcs of alloy wires, tinned wires, silver jacketed wires and enamelled wires).
Single Wire Dia(mm)	0.016～0.08	0.03～0.18	0.05～0.28		0.05～0.32
Stranding Section Area(mm²)	0.0014～0.035	0.0049～0.3	0.0137～0.45		0.0137～1.0
Pitch(mm)	0.8～4.0(14 classes)	0.8~10.8(24classes)	1.6～21.6(24classes)		3.1～33.3(24classes)
Direction of Lay	Free to right or left
Take-up Bobbin(mm) Outer diaboreouter width	20031135	30030185	25030185 30030185		30030185 40056300
Max Rotating Speed(rpm)	5000rpm(10000tpm)	4000rpm(8000tpm)	3500rpm(7000tpm)		3500rpm(7000tpm)
Main Motor Power	2.2KW	3.7KW	3.7KW		3.7KW
Inverter Power	2.2KW	3.7KW	3.7KW		3.7KW
Tension Control	Touch screen+ PLC+ magnetic powder clutch, ensure the constant tension from empty to full bobbin
Magnetic Powder Clutch	0.05kgf	0.3kgf		0.6kgf	0.6kgf
Protection	automatically brake/stop 1)wire inside and outside is broken 2)the preset length is arrived
Brake Mode	Electromagnetic brake
Traversing Method	Rolling wire with ring drive units, winding pitch and breadth are adjustable
Operation Mode	Touch Screen Operation
Dimension LWH	20009601100	230011001330		230011001330	285011501350

Other Information

FOB SHENZHEN

Payment

TT, L/C

Delivery

FOB SHENZHEN

Origin

China

Minimum Order

1 set

Package

with container
