Dahe 0.2mm - 1.70mm automatic wire twisting machine With Mechanism Friction Control

Certification
Customer Reviews

Dahe Technology is an enterprise with excellent service and technical strength.

—— Abbey

I'm Online Chat Now

Dahe 0.2mm - 1.70mm automatic wire twisting machine With Mechanism Friction Control

Dahe 0.2mm - 1.70mm automatic wire twisting machine With Mechanism Friction Control

Large Image :  Dahe 0.2mm - 1.70mm automatic wire twisting machine With Mechanism Friction Control

Product Details:
Place of Origin: China Shenzhen
Brand Name: DAHETEC
Certification: CE
Model Number: DHT-800A
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: DISCUSSABLE
Packaging Details: normal packing
Delivery Time: 45days
Payment Terms: T/T, L/C
Supply Ability: 500SET/PER MONTH

Dahe 0.2mm - 1.70mm automatic wire twisting machine With Mechanism Friction Control

Description
Color: Sky Blue Fit For Bobbin: Diameter 800mm
Fit Wire: 0.2-1.70mm Wire: Wire, Core Wire
Power: 11kw
High Light:

metal twisting machine

,

automatic wire twisting machine

DAHETEC 0.2mm - 1.70mm Wire Twisting Machine With Mechanism Friction Control





Quick Details:



Series for Model A normal wire high speed bunching machine and double twist bunching machine



Apply for twisting of above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires,double twisting for core wires.



Characteristics:



Japan Technology, product in China

1. High speed, good stability

2. Wire from the spindle guide wheel directly over the line to the bow belt, avoid scratching, strand jumping for the aluminum plate rotation wheel failure

3. Shaft: use grease lubrication

4. many safety protection, each enabling gate contact is not in place, unable to start or automatic braking

5. Shaft and aluminum plate after high speed dynamic balance treating

6. Twisted bow: Use Japan high-speed spring steel, after heat treatment.

7. Noise is lower than the 75 dB



Specifications:



Equipment models DHT-300A DHT-500A DHT-630A DHT-800A
Twisting usage Apply for twisting of above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires,double twisting for core wires.
Single wire dia(mm) 0.08-0.28 0.10-0.64 0.15-1.04 0.2-1.70
Stranding section area (mm²) 0.035-0.45 0.05-2.5 0.50-6.0 1.0-16
Core wire single wire dia 0.25-0.8 0.75-1.5 0.5-2.0 1.0-4.0
Core wire stranding outer dia 0.5-1.6 1.5-3.0 1.0-4.0 2.0-8.0
Pitch(mm) 4.5-17.5(10zones) 5.82-53.73(34zones) 11.48-100(36zones) 19.8-200(30zones)
Direction of lay Optional for right or left
Outer dia*bore*outer width 300*30*160

500*70*320

400*56*300



630*56*475

630*125*475

800*80*600



Max rotating speed 3000(6000twist) 2200(4400twist) 1600(3200twist) 1200(2400twist)
Main motor power 3.7KW 5.5KW 7.5KW 11KW
Inverter power 3.7KW 5.5KW 7.5KW 11KW
Tension control method Mechanism friction
Magnetic powder clutch 1.2kgf 5kgf 2.5kgf 10kgf
Protection Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived.
Brake mode Electromagnetic brake
Traversing method Rolling ring drive units, winding pitch and breadth are adjustable
Operation mode Push-button control
Dimension(mm) 2300L*1000W*1150H 2800L*1280W*1300H 3280L*1600w*1600H 3600L*1850W*1800H



Other Information

FOB SHENZHEN

Payment

TT, L/C

Delivery

FOB SHENZHEN

Origin

China

Minimum Order

1 set

Package

with container

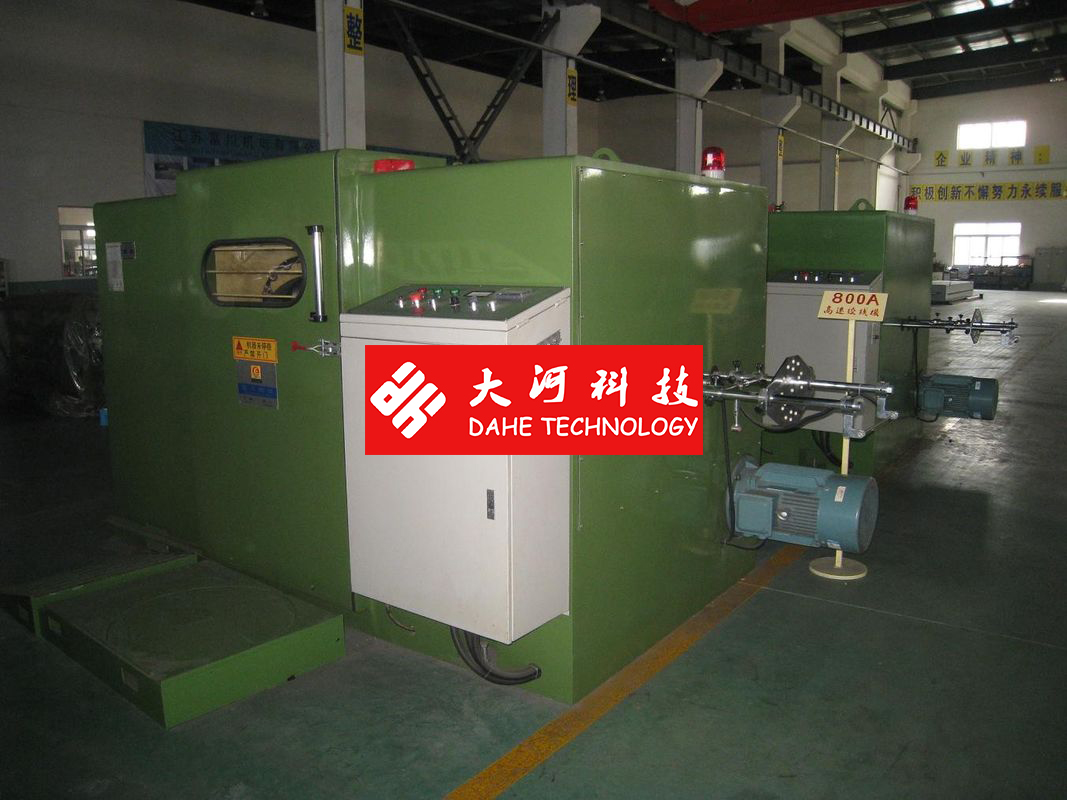

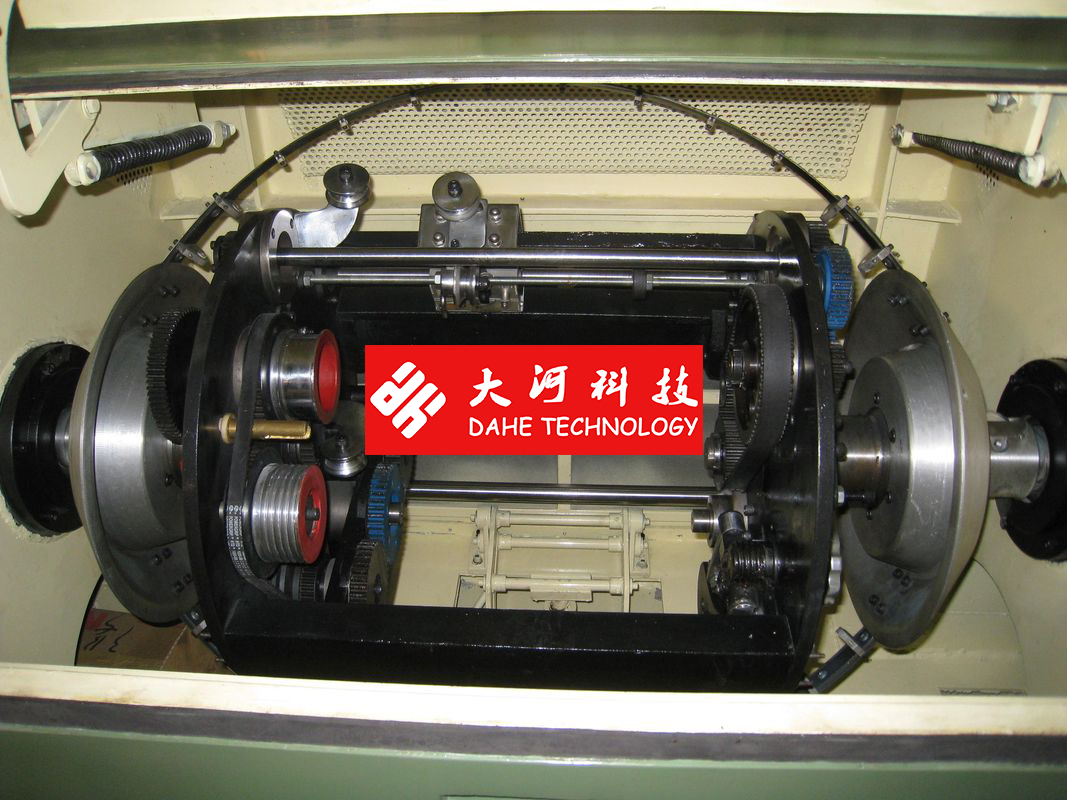

DAHETEC 0.2mm - 1.70mm automatic wire twisting machine With Mechanism Friction Control 0

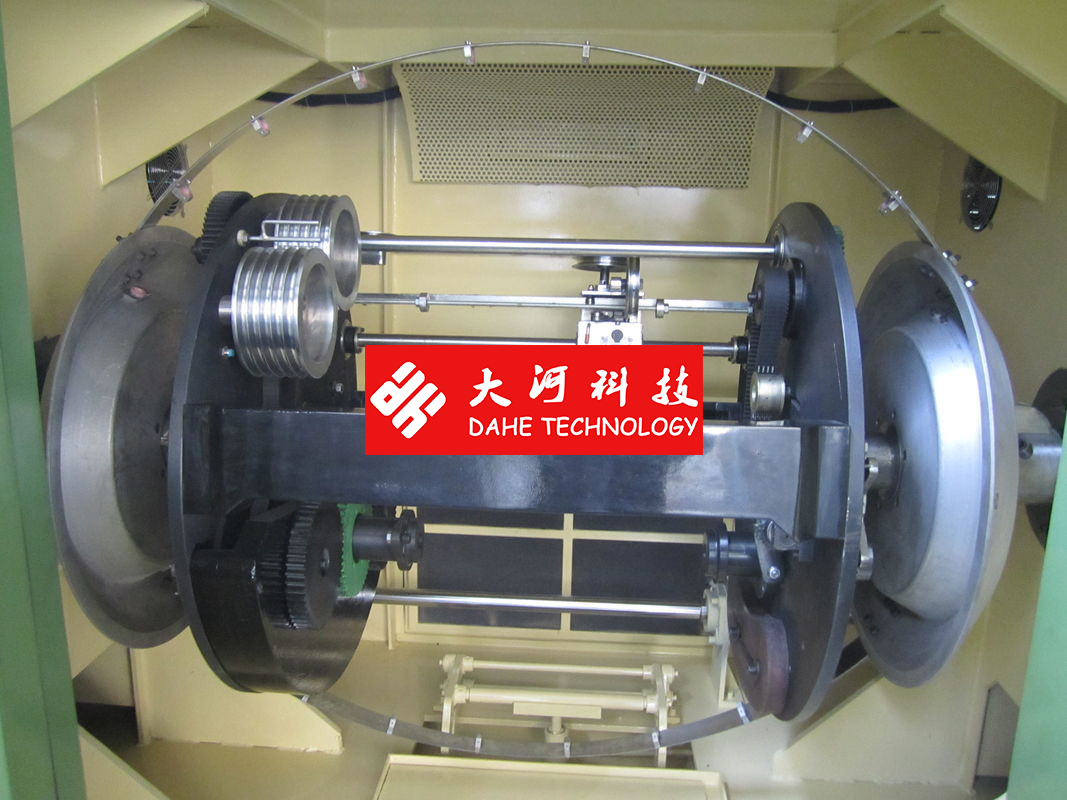

DAHETEC 0.2mm - 1.70mm automatic wire twisting machine With Mechanism Friction Control 1

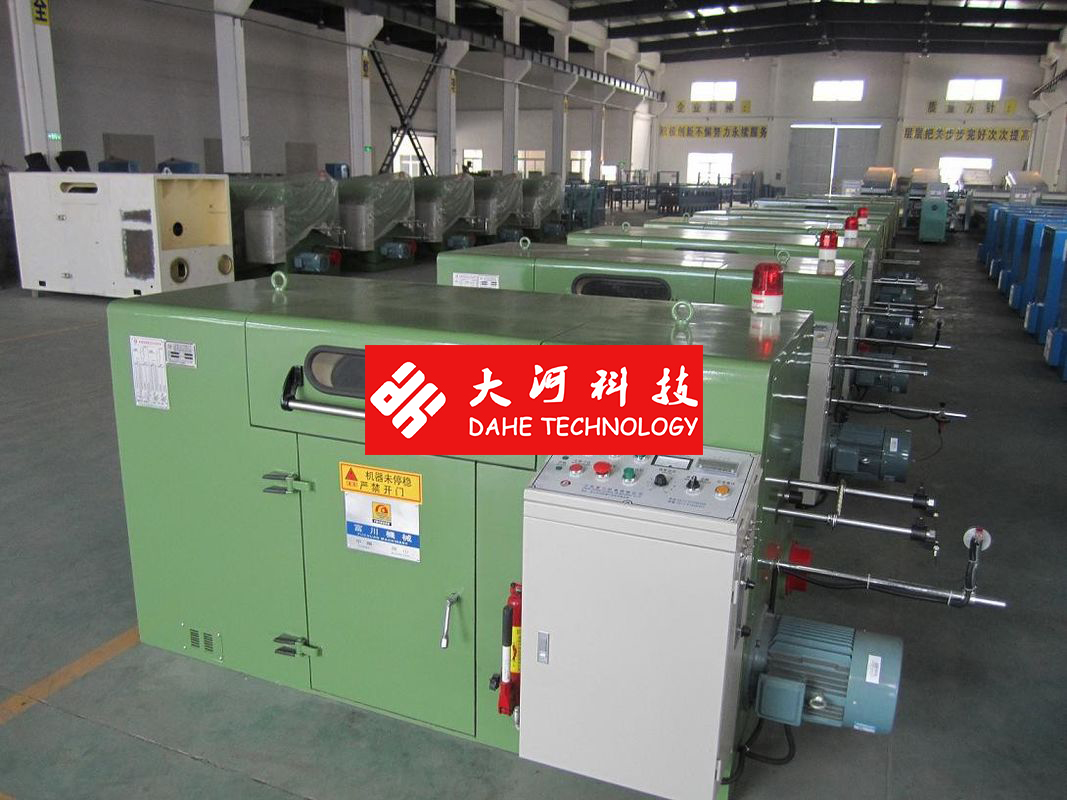

DAHETEC 0.2mm - 1.70mm automatic wire twisting machine With Mechanism Friction Control 2
