| Color: | Sky Blue/apple Green | Fit For Bobbin: | Diameter 800mm |
|---|---|---|---|
| Wire: | PE/PVC Core Wire Or Copper Wire | Fit For Wire: | Dia0.6mm-3.0mm |
| Max Speed: | 500rpm | Direction Of Lay: | Righ Or Left |
| Pitch: | 30-200 | Max Twist Diameter: | 16mm |
| High Light: | electric wire manufacturing machine,wire buncher machine | ||

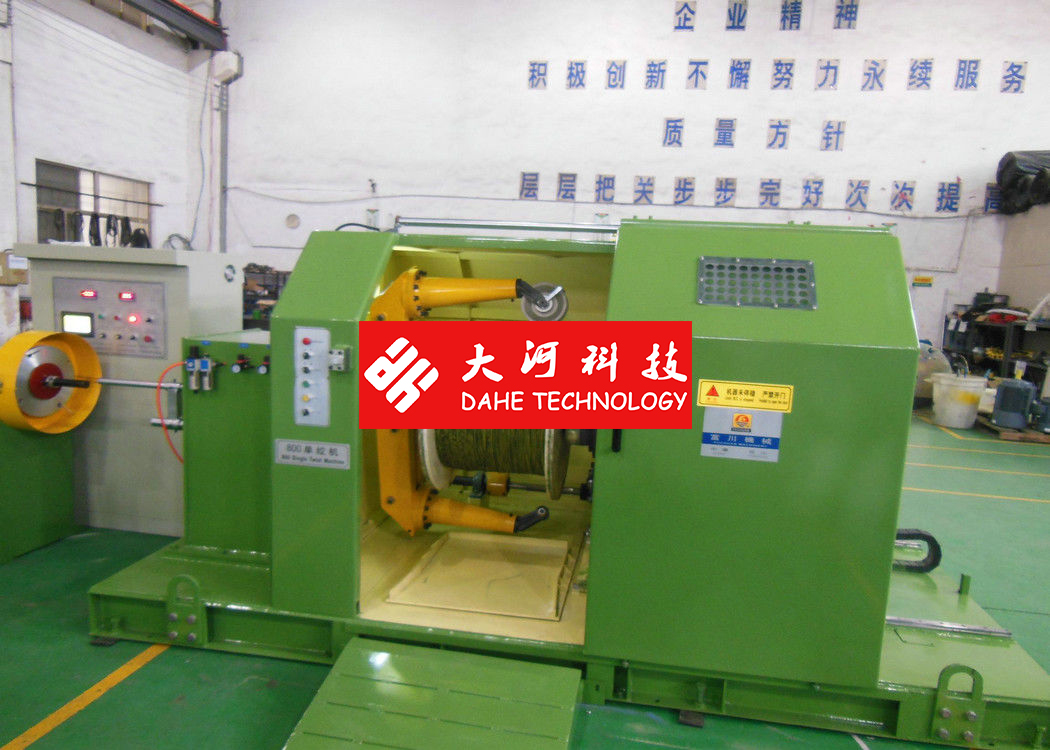

Single Twist Copper Wire Twisting Machine 30MM - 200MM Cable Laying Equipment
Quick Details:

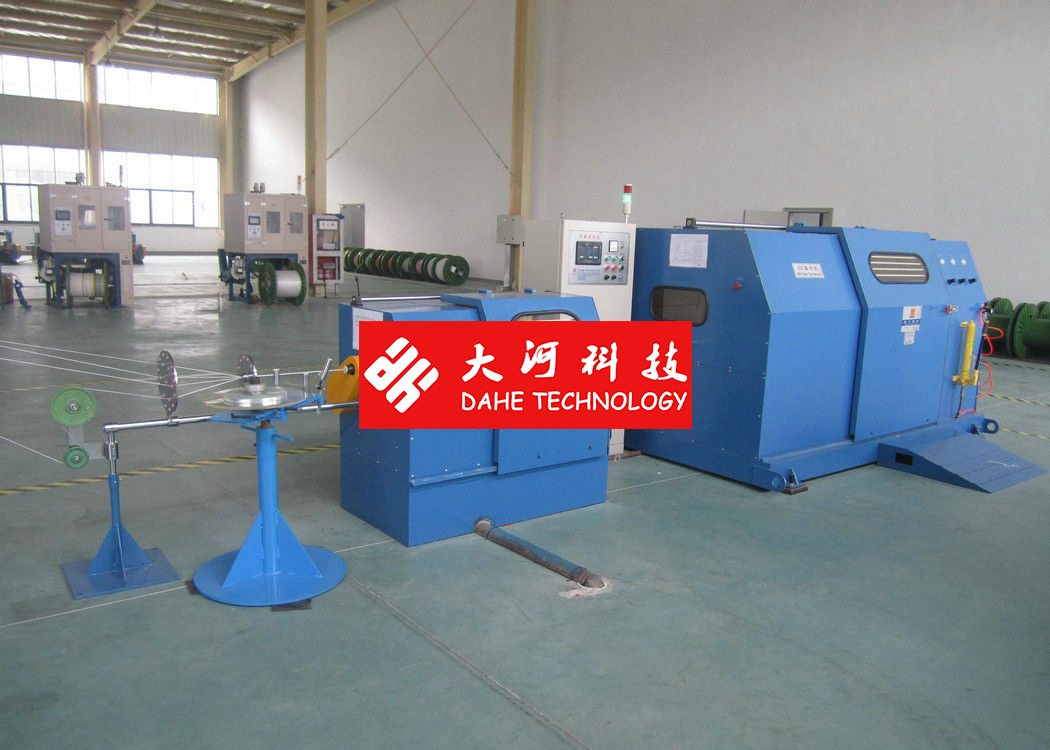

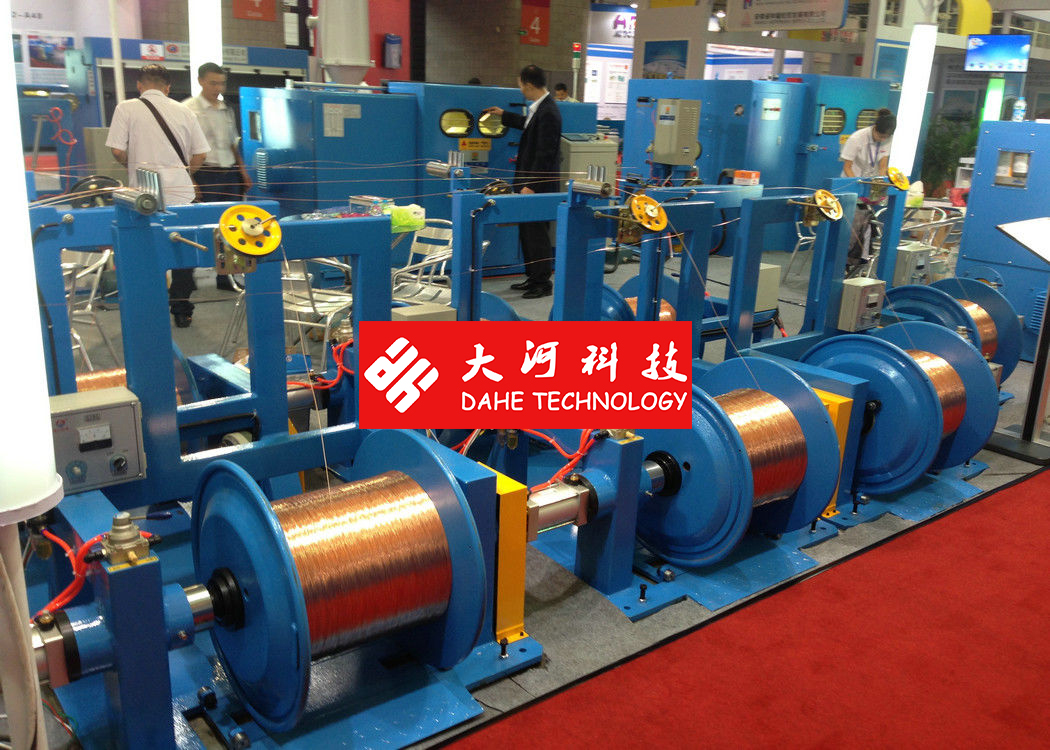

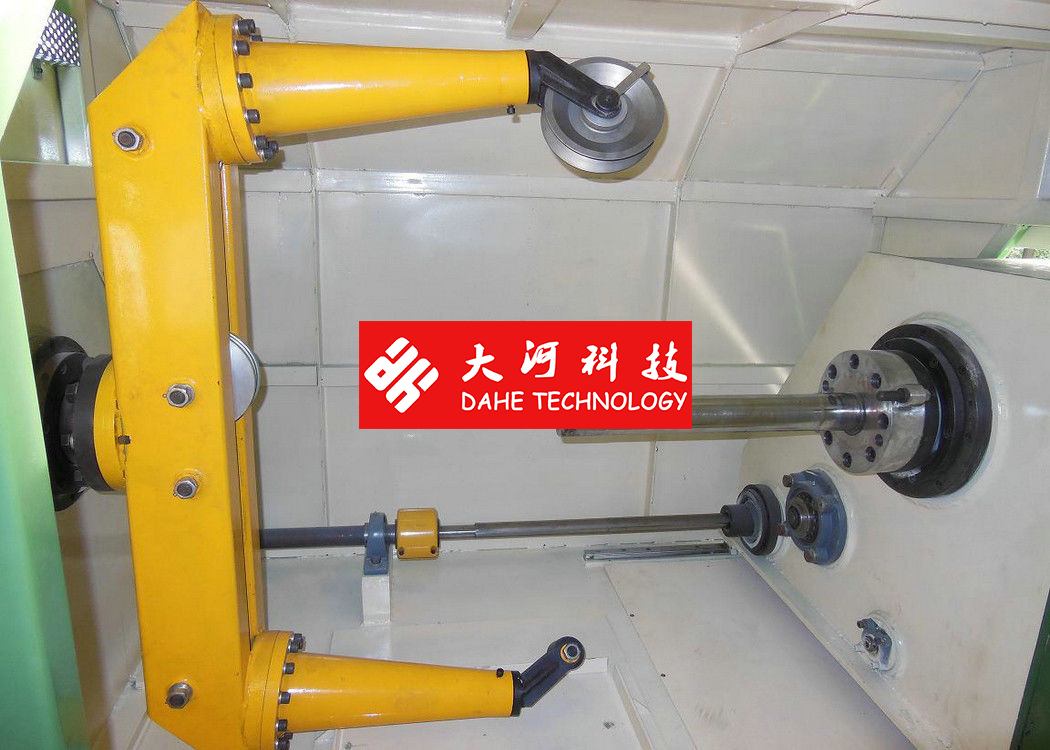

Applied for cable laying of computer wires, such as data cable and control cable. It may synchronize central coil tapping and side coil tapping. The entire machine is consists of pay off rack, central bundler, side pay off rack for the central coil tapping set, single twist(cable-laying)machine and electrical control cabinet.
Characteristics:
1. High production speed, constant tension from empty to full bobbin, especially for high quality stranding wire.
2. Especially for twisting small cross-section area.
3. Use synchronous belt drive,
4. Change guide wheel to change lay distance, easy to operate.
Specifications:
| Equipment models | DHT-500B | DHT-650B | DHT-650C | DHT-800B | |
| Twisting usage | Apply for twisting aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires),double twisting for core wires. | ||||
| Single wire dia(mm) | 0.08-0.45 | 0.15-1.04 | 0.12-0.52 | 0.38-1.70 | |
| Stranding section area (mm²) | 0.05-2.5 | 0.35-6.0 | 0.30-4.0 | 1.0-16 | |
| Core wire single wire dia(mm) | 0.5-1.5 | 0.5-3.0 | 0.5-2.0 | 1.0-4.0 | |
| Core wire stranding outer dia(mm) | 1.0-3.5 | 1.0-6.0 | 1.0-4.0 | 2.0-8.0 | |
| Pitch(mm) | 6.3-52.3(24classes) | 11.6-100(34classes) | 11.6-100(34classes) | 23-147(20classes) | |
| Direction of lay | Optional for right or left | ||||
| Outer dia*bore*outer width | OD500 ID56 H375 | OD630 ID56 H475 | OD630 ID56 H475 OD630 ID127 H475 | OD800 ID80 H600
| |
| Max rotating speed | 3000rpm(6000twist) | 2000rpm(4000twist) | 2400rpm(4800twist) | 1500rpm(3000twist) | |
| Main motor power | 5.5KW | 7.5KW | 11KW | 15KW | |
| Inverter power | 5.5KW | 7.5KW | 11KW | 15KW | |
| Tension control method | Touch screen +PLC+ magnetic powder clutch, ensure the constant tension from empty to full bobbin | ||||
| Magnetic powder clutch | 1.2kgf | 5kgf | 2.5kgf | 10kgf | |
| Protection | automatically brake/stop 1)wire inside and outside is broken 2)the preset length is arrived | ||||
| Brake mode | Electromagnetic brake | ||||
| Traversing method | Rolling wire with ring drive units, winding pitch and breadth are adjustable | ||||
| Operation mode | Touch screen operation | ||||
| Dimension(mm) | 2680L 1250W 1500H | 3300L 1550W 1800H | 3300L 1550w 1800H | 4600L 2000W 2000H | |
