Dahe 0.64mm Copper Wire Bunching Machine With 7.5Kw Take Up Motor Power

Dahe 0.64mm Copper Wire Bunching Machine With 7.5Kw Take Up Motor Power

Large Image :  Dahe 0.64mm Copper Wire Bunching Machine With 7.5Kw Take Up Motor Power

Product Details:

Place of Origin:China Kunshan
Brand Name:DAHETEC
Certification:CE
Model Number:DHT-1+6(250)+12

Payment & Shipping Terms:

Minimum Order Quantity:1set
Price:USD49330
Packaging Details:with container
Delivery Time:45 DAYS
Payment Terms:T/T, L/C

Dahe 0.64mm Copper Wire Bunching Machine With 7.5Kw Take Up Motor Power

Description
Fit For Wire:19pcs Copper Wires φ0.16mm - φ0.64mm In One TimeFit For Bobbin:Diameter 630 Or 250mm
Wire:19pcs Of Copper WireMax Speed:2000(4000twist)
Pay Off Motor Power:5.5kwTake Up Motor Power:7.5kw
Mainly:0.41/0.52/0.64mm
High Light:

automatic wire twister

,

wire twist machine


DAHETEC 0.64mm Copper Wire Bunching Machine With 7.5Kw Take Up Motor Power





Quick Details:



Apply for bunching 19pcs copper wires synchronous



Characteristics:



New arrival, instead of 200 tube bunching machine, have high productivity(4.5times than normal tube machine for regular 1+6+12 conductors ),energy-saving, small size, low noise, etc.



Specifications:



Equipment models1+6+12(200 and 250bobbin)1+6+12(630bobbin)
Twisting usageApply for bunching 19pcs copper wires synchronous
Single wire dia(mm)0.16~0.64
Stranding section area (mm²)0.38~6.0
Pitch(mm)11.6-100(34classes)
Direction of layFree to right or left
Pay-off bobbin size8inch,9inchOD630 ID125 H475
Pay-off typeMechanical frictionMagnetic powder tension
Take-up bobbin size

OD630 ID127 H475 or OD630 ID56 H475

(Customized)

OD630 ID127 H475 or OD630 ID56 H475

(Customized)

Max rotating speed2000rpm(4000twist)2000rpm(4000twist)
Pay-off machine power5.5KW7.5KW
Take-up motor power7.5KW7.5KW
Tension controlTouch screen+PLC+magnetic powder clutch, ensure the constant tension from empty to full bobbin
Magnetic powder clutch5kgf5kgf
Protection

automatically brake/stop 1)wire inside and outside is broken

2)the preset length is arrived

Brake modeElectromagnetic brake
Traversing methodRolling wire with ring drive units, winding pitch and breadth are adjustable
OperationTouch screen
Dimension(mm)10000L 2500W 1650H10000L 2500W 1650H



Other Information



FOB SHENZHEN

Payment

TT, L/C

Delivery

FOB SHENZHEN

Origin

China

Minimum Order

1 set

Package

with container

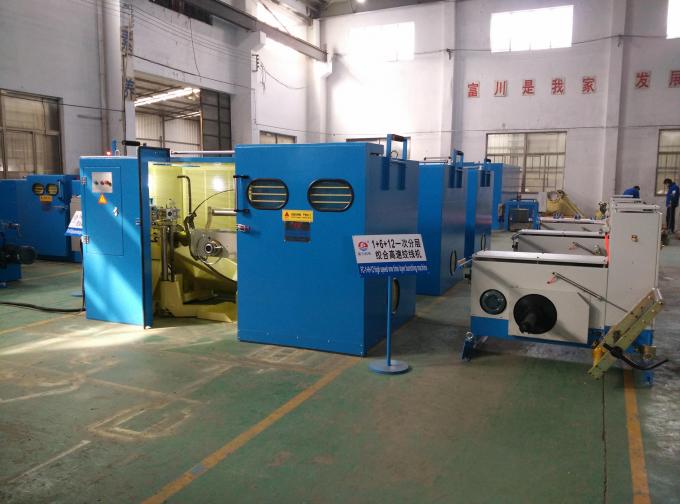

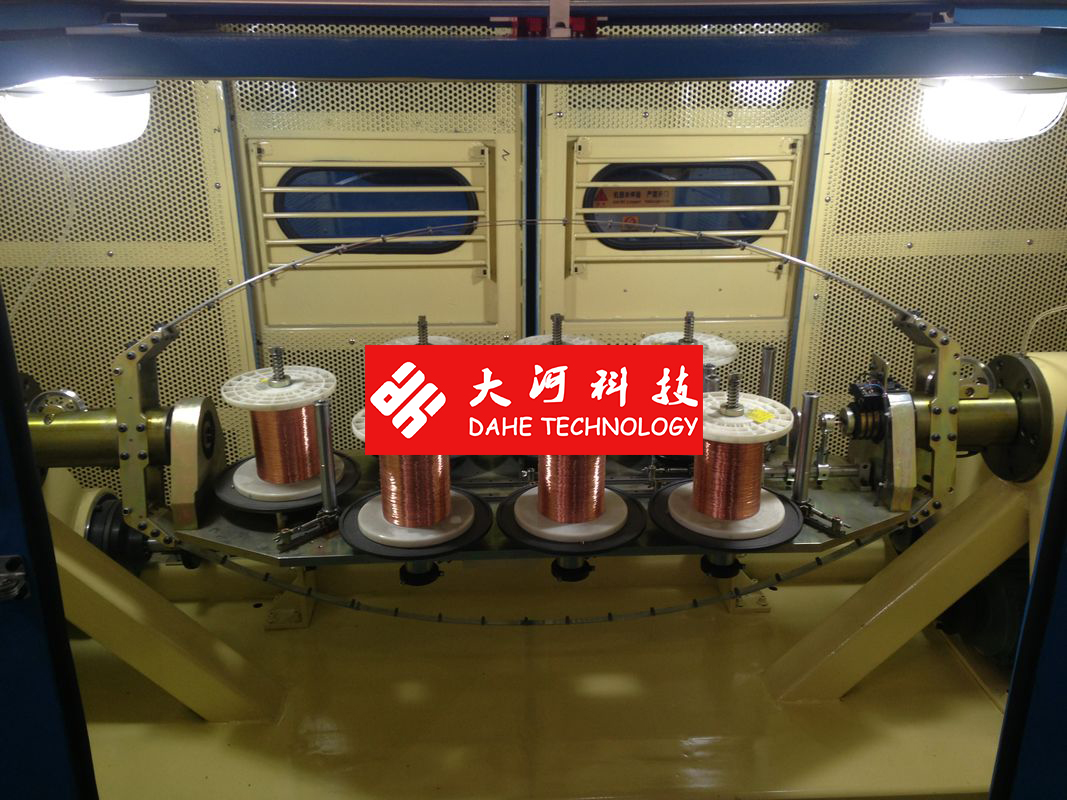

DAHETEC 0.64mm Copper Wire Bunching Machine With 7.5Kw Take Up Motor Power 0

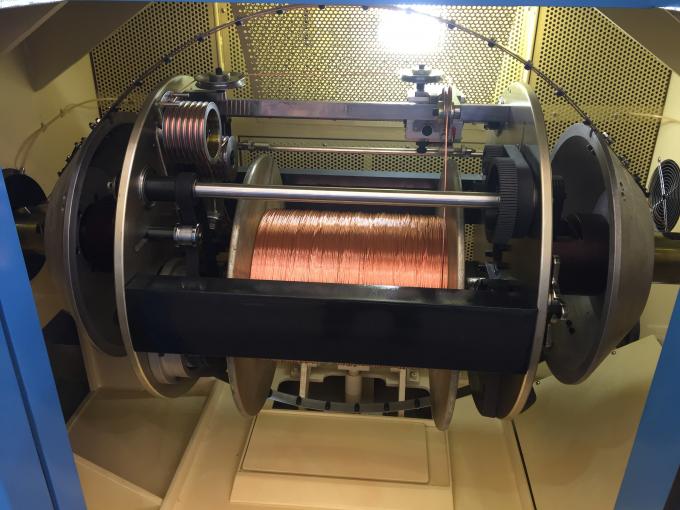

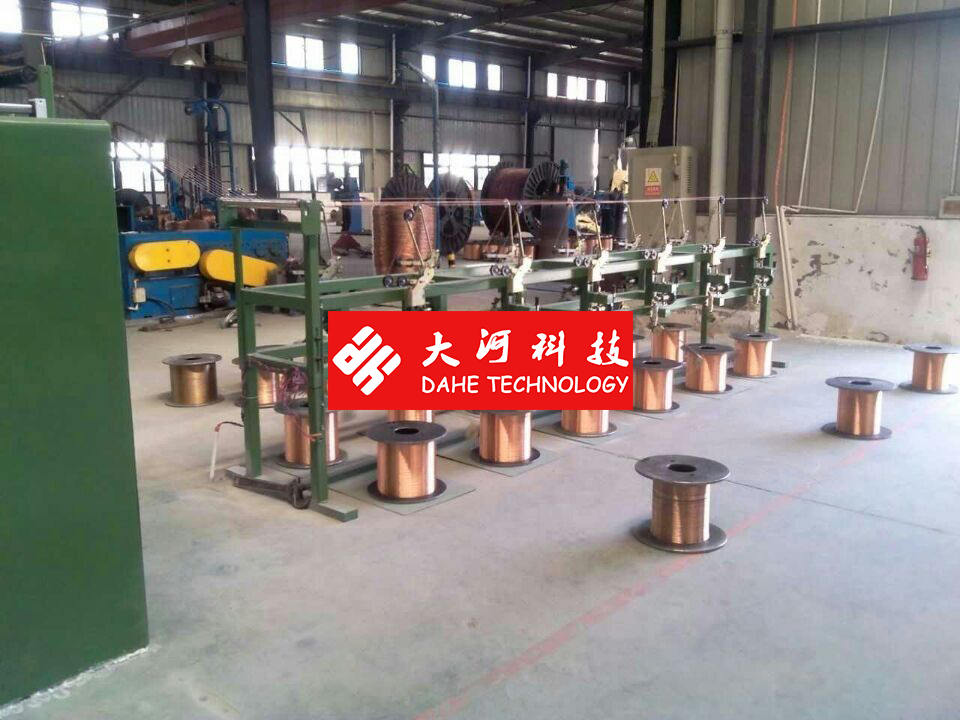

DAHETEC 0.64mm Copper Wire Bunching Machine With 7.5Kw Take Up Motor Power 1

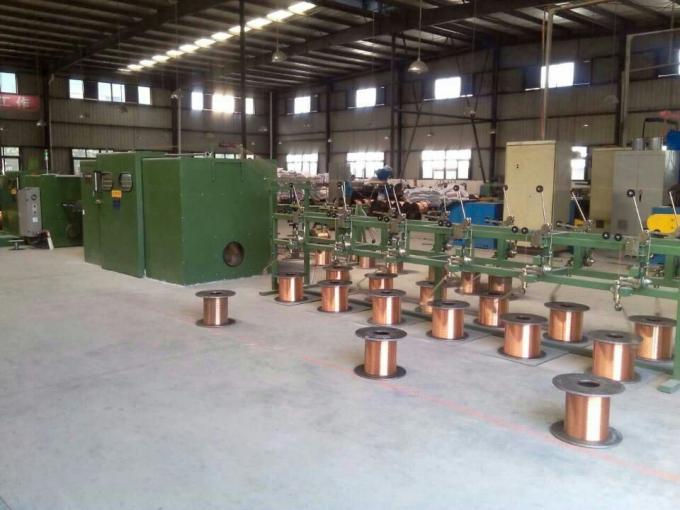

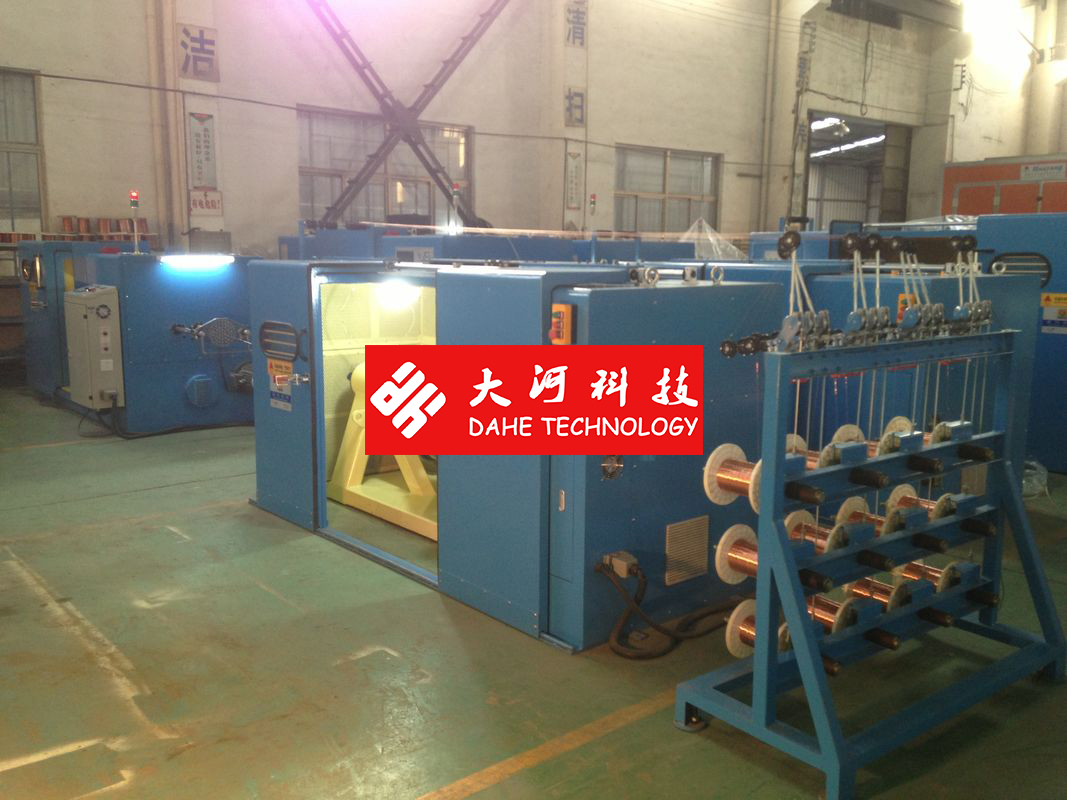

DAHETEC 0.64mm Copper Wire Bunching Machine With 7.5Kw Take Up Motor Power 2
