Dahe 7.5Kw Wire Twisting Machine , 2.5Kgf Sky Blue Wire Buncher Machine

上架时间：2022-03-14

浏览次数：687

产品类型：

产品颜色：

产品价格：￥

Color:	Sky Blue Cable Stranding Machine	Fit For Bobbin:	Diameter 630mm
Fit Wire:	0.15-1.04mm	Power:	7.5kw
High Light:	metal twisting machine , automatic wire twisting machine

Color:

Sky Blue Cable Stranding Machine

Fit For Bobbin:

Diameter 630mm

Fit Wire:

0.15-1.04mm

Power:

7.5kw

High Light:

metal twisting machine

automatic wire twisting machine

DAHETEC 7.5Kw Wire Twisting Machine , 2.5Kgf Sky Blue Wire Buncher Machine

Quick Details:

Apply for twisting of above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires,double twisting for core wires.

Series for Model A normal wire high speed bunching machine and double twist bunching machine

Characteristics:

Japan Technology, product in China

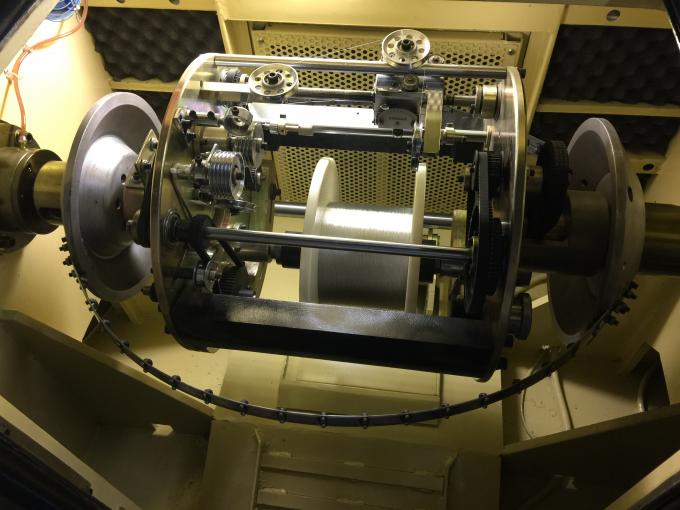

1. Wire from the spindle guide wheel directly over the line to the bow belt, avoid scratching, strand jumping for the aluminum plate rotation wheel failure

2. High speed, good stability

3. Shaft: use grease lubrication

4. many safety protection, each enabling gate contact is not in place, unable to start or automatic braking

5. Shaft and aluminum plate after high speed dynamic balance treating

6. Noise is lower than the 75 dB

7. Twisted bow: Use Japan high-speed spring steel, after heat treatment.

Specifications:

Equipment models	DHT-630A
Twisting usage	It is applied to the twisting of above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires, double twisting for core wires.
Single wire dia(mm)	φ0.15-φ1.04
Stranding section area (mm²)	0.50-6.0
Core wire single wire dia	φ0.5-φ2.0
Core wire stranding outer dia	φ1.0-φ4.0
Pitch(mm)	11.48-100(36zones)
Direction of lay	Optional for right or left
Outer diaboreouter width	φ630φ56475 φ630φ125475
Max rotating speed	1600(3200twist)
Main motor power	7.5KW
Inverter power	7.5KW
Tension control method	Mechanism friction
Magnetic powder clutch	2.5kgf
Protection	Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived.
Brake mode	Electromagnetic brake
Traversing method	Rolling ring drive units, winding pitch and breadth are adjustable
Operation mode	Push-button control
Dimension(mm)	3280L1600w1600H
