Product Details:
|
| Fit Wire: | 0.2-1.70mm | Color: | Sky Blue |
|---|---|---|---|
| Wire: | Electric Cable Manufacturing Machinery | Power: | 11kw |
| Brake Mode: | Electromagnetic Brake | Fit For Bobbin: | Diameter 800mm |
| High Light: | wire twister machine,metal twisting machine | ||

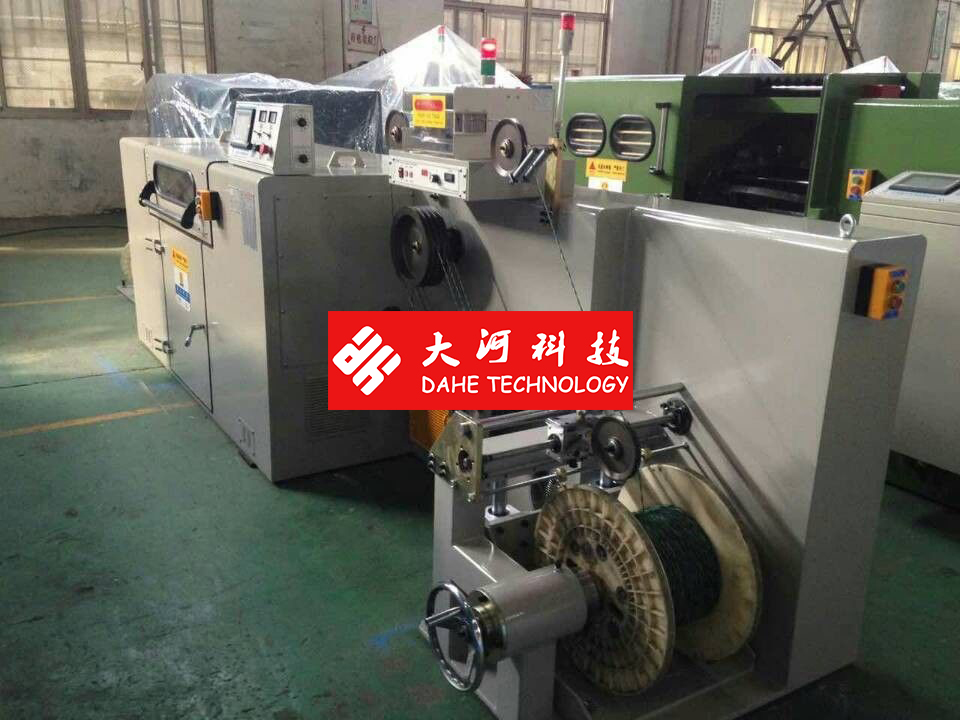

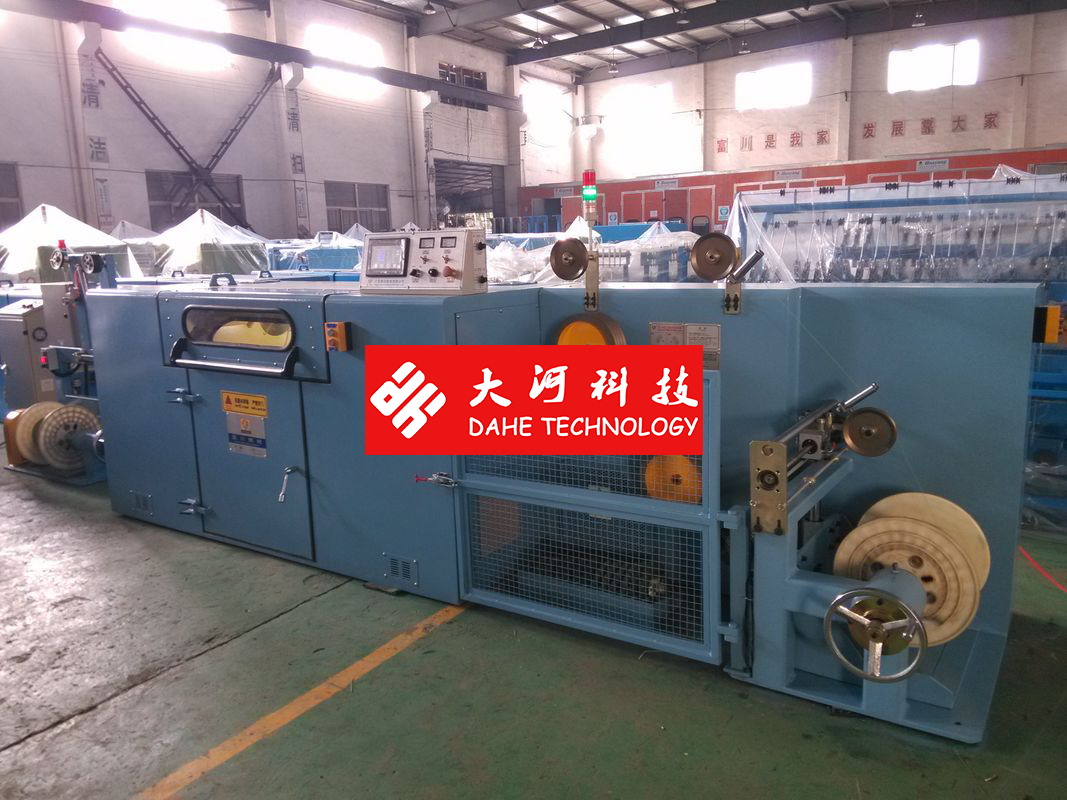

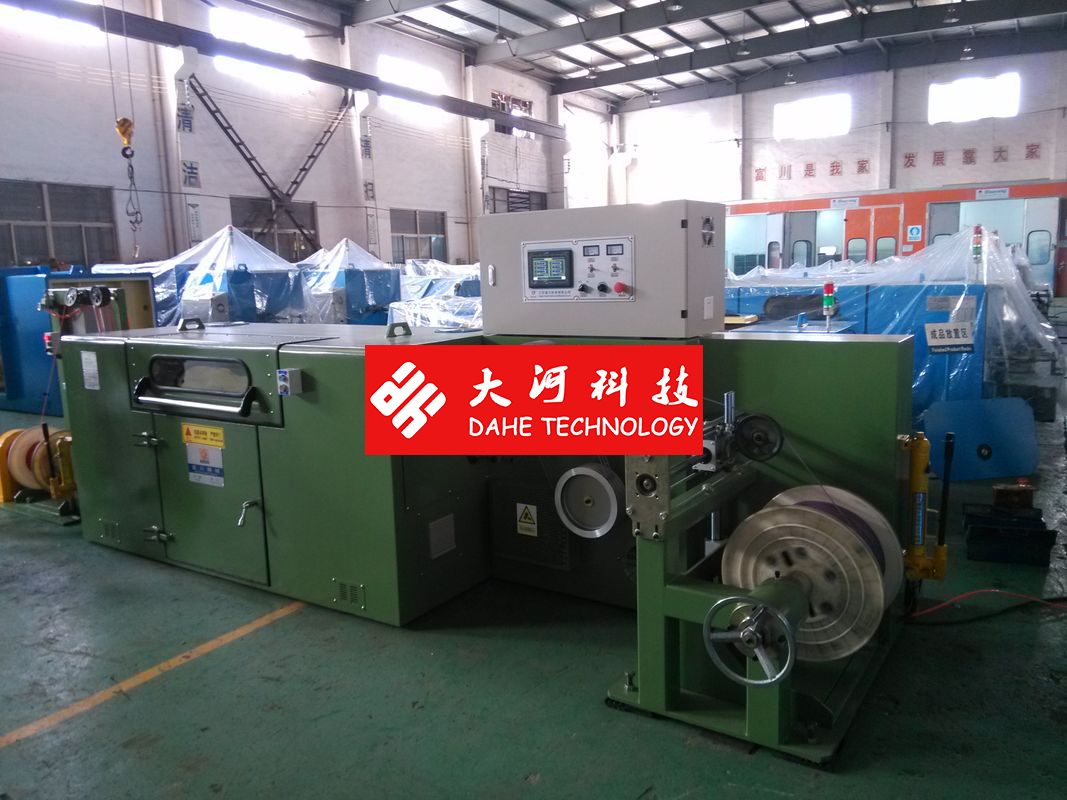

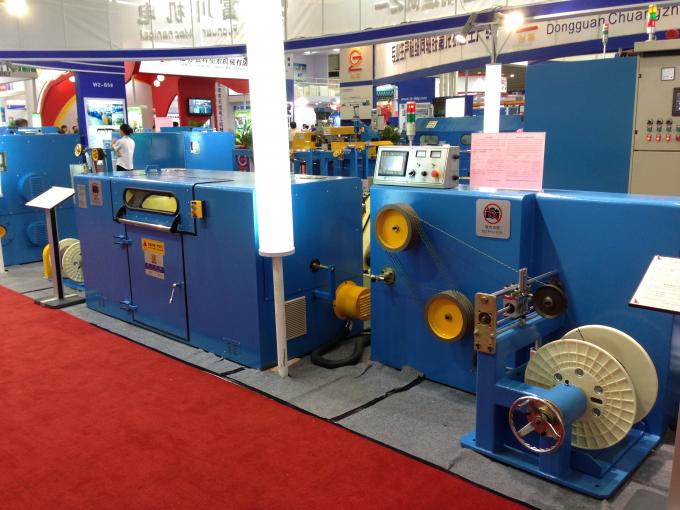

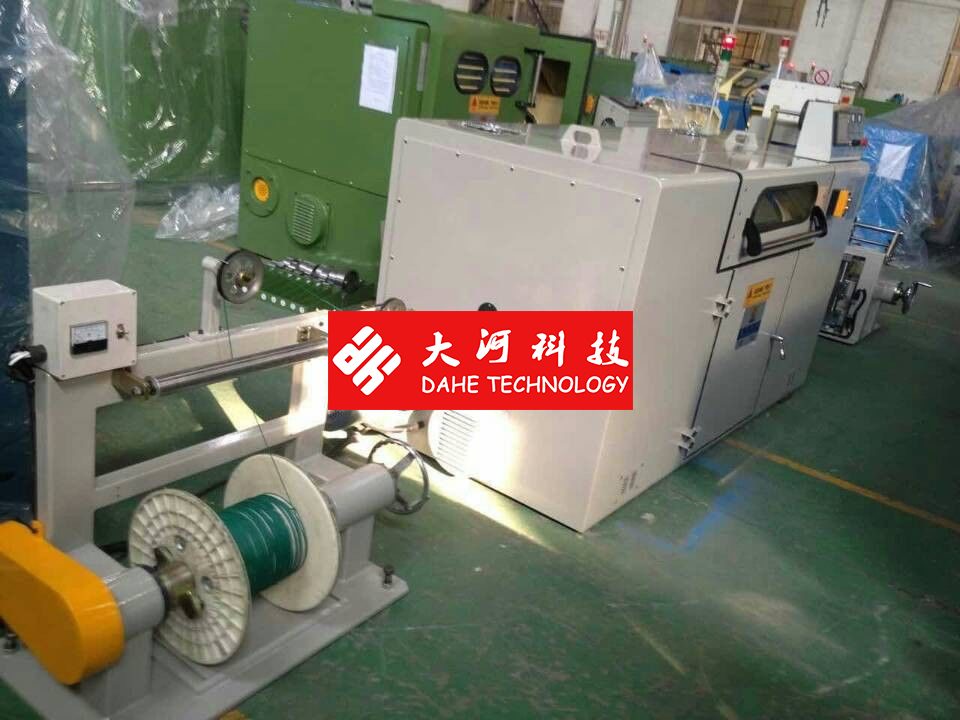

DAHETEC Wire Twisting Machine , LAN CABLE double twisting machine
Quick Details:

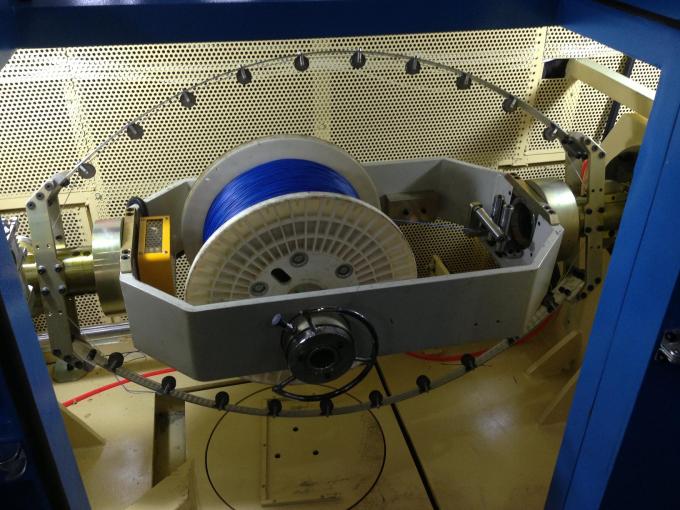

Series for on-twist double twist machine
Apply for producing the high frequency data cable, Lan cable(cat6 cable),USB2.0,USB3.0,Cate-6e,Cate-7e,HDMI and other high speed data cable.
Characteristics:
Apply for high frequency data cable, Lan cable(cat6 cable).Non twist after double twisting, make the insulated core wire interlace uniformly,
1. Avoid the nonuniform twist force, thus make the finished wire with the uniform, precision pitch.
2. This machine is adopted for the high speed data wire&cable(contain the USB2.0,USB3.0,CATE-6E,HDMI and other wire),combined the functions and merits of no-twist stranding machine and high speed wrapping machine.
3. The two machine can operate separately and simultaneously.
4. Device structure: active pay off, no-twist stranding machine, high frequency spark tester, wrapping machine, take up and other parts.
Specications:
| Equipment models | DHT-300E | DHT-400E | DHT-500E | DHT-630E |
| Usage | Apply for producing the high frequency data cable, Lan cable(cat6 cable),USB2.0,USB3.0,Cate-6e,Cate-7e,HDMI and other high speed data cable. | |||
| Core wire single wire dia | 0.5-1.5 | 0.5-2.0 | 1.0-4.0 | 2.0-5.0 |
| Core wire stranding outer dia | 1.0-3.0 | 1.0-4.0 | 2.0-8.0 | 4.0-10.0 |
| Pitch(mm) | 5-50(24zones) | 10-90(24zones) | 15-120(34zones) | 20-160(24zones) |
| Direction of lay | Optional for right or left | |||
| Outer dia*bore*outer width | 300*30*160 | 400*56*300 | 500*56*300
| 630*56*475
|
| Outer pay off type | active pay off | |||
| Inner pay off type | magnetic tension pay off | |||
| take up bobbin(mm) | 300*30*160 | 500*56*375 | 630*56*475
| 800*80*600
|
| Max rotating speed | 2500(5000twist) | 2500(5000twist) | 2000(4000twist) | 1500(3000twist) |
| pay off motor power | 0.75KW | 1.5KW | 1.5KW | 2.2KW |
| main motor power | 3.7KW | 5.5KW | 5.5KW | 7.5KW |
| Tension control method | Touch screen +PLC+ magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin | |||
| Inner magnetic powder clutch | 0.6kgf | 1.2kgf | 2.5kgf | 5kgf |
| take up magnetic clutch | 2.5kgf | 5kgf | 5kgf | 10kgf |
| Brake mode | Electromagnetic brake | |||
| Traversing method | Rolling ring drive units, winding pitch and breadth are adjustable | |||
| Operation mode | Touch screen operation | |||
