Product Details:
Payment & Shipping Terms:
|
| Fit For Wire: | 19pcs Copper Wires φ0.16mm - φ0.64mm In One Time | Fit For Bobbin: | Diameter 630 Or 250mm |
|---|---|---|---|
| Wire: | 19pcs Of Copper Wire | Mainly For Wire: | BV,BVR,bare Copper Wire |
| Color: | Sky Blue Or Apple Green | Pay Off Type: | Magnetic Tension |
| Fit For Bobbin: | Dia630mm | ||
| High Light: | metal twisting machine,automatic wire twisting machine | ||

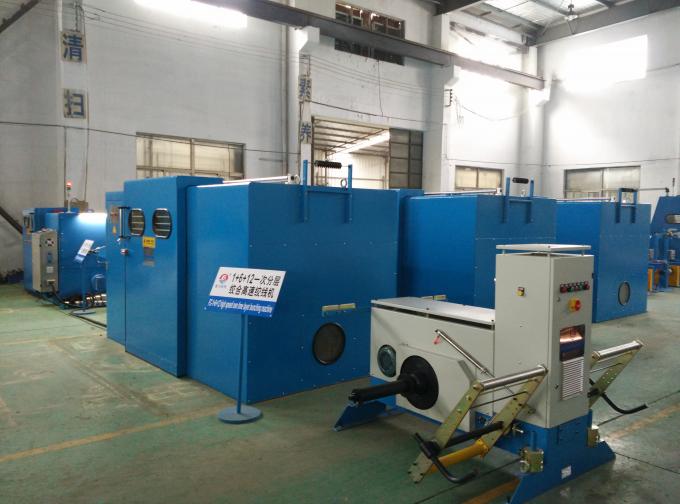

PLC Control Bare Copper Wire Twisting Machine Magnetic Tension Pay Off
Series for 1+6+12 bunching machine 19pcs copper wires φ0.16mm - φ0.64mm in one time
Merits: It is the latest developed machine. This machine replace the model 200 tube bunching machine with the high productivity(It is 4.5times than tube machine for the 1+6+12 conductors normal bunching)low power, small floor place, low noise and other merits.
Equipment models | 1+6+12(200bobbin) | DHT-1+6+12(500bobbin) |
Twisting usage | It is applicable to bunching 19pcs copper wires in one time | |
Single wire dia(mm) | φ0.16-φ0.64 | |
Stranding section area (mm²) | 0.38-6.0 | |
Pitch(mm) | 11.6-100(34zones) | |
Direction of lay | Optional for right or left | |
Pay off bobbin size | 8inch,9inch | φ500*φ125*475 |
Max rotating speed | 2000(4000twist) | 2600(5200twist) |
Pay off type | Mechanical friction | Magnetic tension |
Pay off machine power | 5.5KW | 7.5KW |
Take up bobbin size | φ630*φ125*475 | φ500*φ125*375 |
Pay off Inverter power | 7.5KW | 7.5KW |
Main motor power | 7.5KW | 7.5KW |
Take up inverter power | 7.5KW | 7.5KW |
Tension control method | Touch screen+PLC+magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin | |
Magnetic powder clutch | 5.0kgf | 5.0kgf |
Protection | Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived. | |
Brake mode | Electromagnetic brake | |
Traversing method | Rolling ring drive units, winding pitch and breadth are adjustable | |
Operation mode | Touch screen operation | |
Dimension(mm) | 10000L*2500W*1650H | 10000L*2500W*1650H |
