| Color: | Blue | Fit For Bobbin: | Max Diameter 250mm |
|---|---|---|---|
| Fit Copper Wire: | 0.08mm-0.45mm | Wire: | Core Wire/bare Copper Wire,tinned Wire,silver Jacketed Wires |
| Used: | Working With Buncher | Type: | Passive Type Or Active Type |
| High Light: | metal twisting machine,automatic wire twisting machine | ||
DAHETEC Blue Normal Wire Twisting Machine Double Twist For Bunched Copper Wire Pay Off
Quick Details:

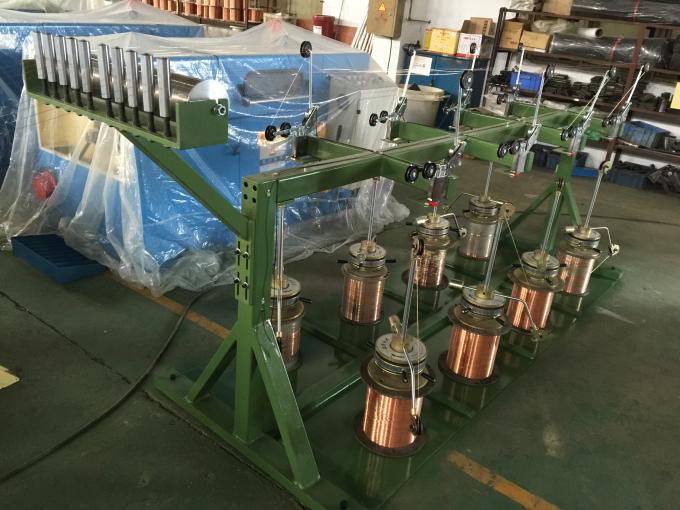

DHT-250-1 passive type or active pay off machine
1. Fit for wire:dia0.08mm-0.45mm
2. Fit for ABS bobbin Φ250*φ20*120 and Φ200*φ30*180
3. Brake: when wire is break, the belt will stopped automatically.
4. Tension control: spring type tension gun control, when wire is break, the machine will brake.
5. 50heads/set *1set
Characteristics:
Japanese Technology, product in China
1. High production speed, constant tension from empty to full bobbin, especially for high quality stranding wire.
2. Use shaft to calculate meters, less than 0.01% error for a certain wire&cable.
3. With DHT-100 active back-twist pay-off machine to achieve bunching instead of twisting.
4. Especially for twisting small cross-section area.
5. Use synchronous belt drive,
Specifications:
| Equipment Models | DHT-200B | DHT-250B | DHT-300B | DHT-400B | |
| Twisting Usage | Apply for the bunching of aerospace, medical instrument, cellphone,notebook PC and ultra fine conductor(above seven pcs of alloy wires, tinned wires, silver jacketed wires and enamelled wires). | ||||
| Single Wire Dia(mm) | 0.016～0.08 | 0.03～0.18 | 0.05～0.28 | 0.05～0.32 | |
| Stranding Section Area(mm²) | 0.0014～0.035 | 0.0049～0.3 | 0.0137～0.45 | 0.0137～1.0 | |
| Pitch(mm) | 0.8～4.0(14 classes) | 0.8~10.8(24classes) | 1.6～21.6(24classes) | 3.1～33.3(24classes) | |
| Direction of Lay | Free to right or left | ||||
Take-up Bobbin(mm) Outer dia*bore*outer width | 200*31*135 | 300*30*185 | 250*30*185 300*30*185 | 300*30*185 400*56*300 | |
| Max Rotating Speed(rpm) | 5000rpm(10000tpm) | 4000rpm(8000tpm) | 3500rpm(7000tpm) | 3500rpm(7000tpm) | |
| Main Motor Power | 2.2KW | 3.7KW | 3.7KW | 3.7KW | |
| Inverter Power | 2.2KW | 3.7KW | 3.7KW | 3.7KW | |
| Tension Control | Touch screen+ PLC+ magnetic powder clutch, ensure the constant tension from empty to full bobbin | ||||
| Magnetic Powder Clutch | 0.05kgf | 0.3kgf | 0.6kgf | 0.6kgf | |
| Protection | automatically brake/stop 1)wire inside and outside is broken 2)the preset length is arrived | ||||
| Brake Mode | Electromagnetic brake | ||||
| Traversing Method | Rolling wire with ring drive units, winding pitch and breadth are adjustable | ||||
| Operation Mode | Touch Screen Operation | ||||
| Dimension L*W*H | 2000*960*1100 | 2300*1100*1330 | 2300*1100*1330 | 2850*1150*1350 | |
