DAHETEC Bare Copper Wire Bunching Machine / Equipment 6000 Twist 6.3mm - 52.3mm Pitch
Quick Details:
Series for Model B normal wire high speed bunching machine and double twist bunching machine
Apply for twisting aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires),double twisting for core wires.
Characteristics:
Japan Technology, product in China
1. High rotation speed, max up to 2600rpm, is the 1.6 times than normal (1600rpm);
2. Use PLC, hysteresis clutch take-up device imported from German, tension sensor ensure the stable tension and high quality stranding wire, especially for high quality tight line.

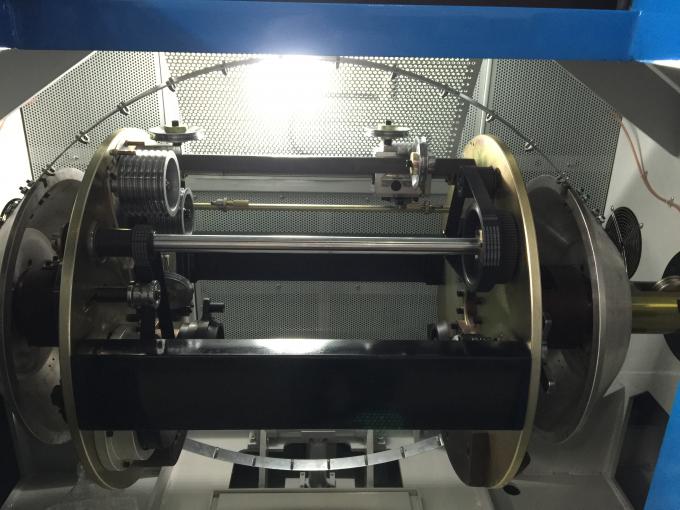

3. Use carbon fiber bow, strong rigidity, uneasy-transformation, small shock, light weight, reduce air friction for high quality of conductors;
4. Use synchronous belt drive, just to replace the guide wheel to change the lay distance, easy to operate.
5. Use spindle to calculate meters, only 0.01% error for a certain wire&cable.
6. Use PLC automatically lubricate spindle bearing, avoid injecting too much or too little grease. Get rid of unnormal noise and worn, cost down for maintenance.
Specifications:
| Equipment models | DHT-500B-3 |
| Twisting usage | It is applied to the twisting of aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires),double twisting for core wires. |
| Single wire dia(mm) | φ0.08-φ0.45 |
| Stranding section area (mm²) | 0.05-2.5 |
| Core wire single wire dia | φ0.5-φ1.5 |
| Core wire stranding outer dia | φ1.0-φ3.5 |
| Pitch(mm) | 6.3-52.3(24zones) |
| Direction of lay | Optional for right or left |
| Outer dia*bore*outer width | φ500*φ56*375 |
| Max rotating speed | 3000(6000twist) |
| Main motor power | 5.5KW |
| Inverter power | 5.5KW |
| Tension control method | Touch screen +PLC+ magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin |
| Magnetic powder clutch | 1.2kgf |
| Protection | Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived. |
| Brake mode | Electromagnetic brake |
| Traversing method | Rolling ring drive units, winding pitch and breadth are adjustable |
