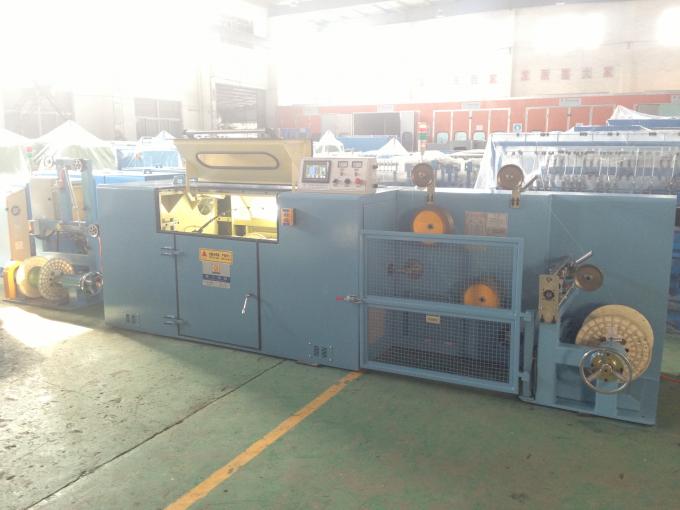

Silver Jacketed Wire Twisting Machine , Diameter 800mm Wire Twister Machine

Silver Jacketed Wire Twisting Machine , Diameter 800mm Wire Twister Machine

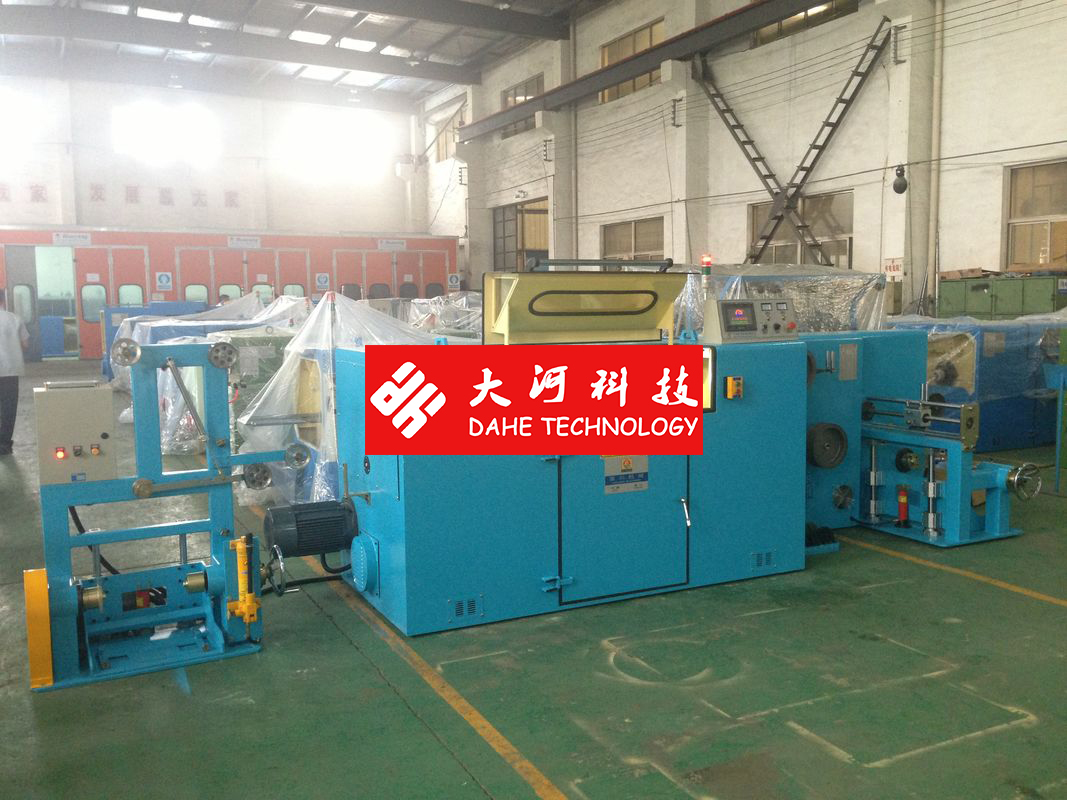

A. Parameter of DHT-500E high speed double twist bunching machine:

Applied for :two pcs of core wire double twist,pitch is precision, thus make the finished wire with the uniform.

1.     Applied for wire :core wire φ1.0～φ3.0mm

2.     Max outerside twisted wire: core wire φ2.0～φ6.0mm

3.     Pay off bobbin:φ400*φ25* 276, position hole φ20 ,centre distance130.  plastic bobbin.

               φ500*φ40* 340, position hole φ20 ,centre distance130.  plastic bobbin

4.     Take up bobbin:φ630mm×φ40mm×420.  position hole φ20 ,centre hole 130 plastic bobbin

5.     Max speed of bow:2000RPM  (with bow traverse guidewheel)

6.     Double twist pitch:20～90mm

7.     Traverse:φ30mm rolling ring drive units, winding pitch and breadth are adjustable

8.     Main power:7.5KW inverter motor+inverter

9.     Direction:can change the direction of left or right,to change the direction is to change the                  gear.easy to operate.

10.  Brake:adopt electromagnetic break, when meters arrived it will automatically stopped.

11.   Tension control: PLC+magnetic powder clutch,with stable tension.
