Product Details:
|
| Color: | Sky Blue/ Apple Green | Fit For Bobbin: | Diameter 630mm |
|---|---|---|---|
| Fit Copper Wire: | 0.12mm-0.52mm | Wire: | Core Wire,bare Copper Wire,tinned Wires,silver Jacketed Wires |
| Operation Mode: | Touch Screen Operation | Also Wire: | Enamelled Wire / Bare Copper Wire |
| High Light: | cable twisting machine,wire twist machine | ||

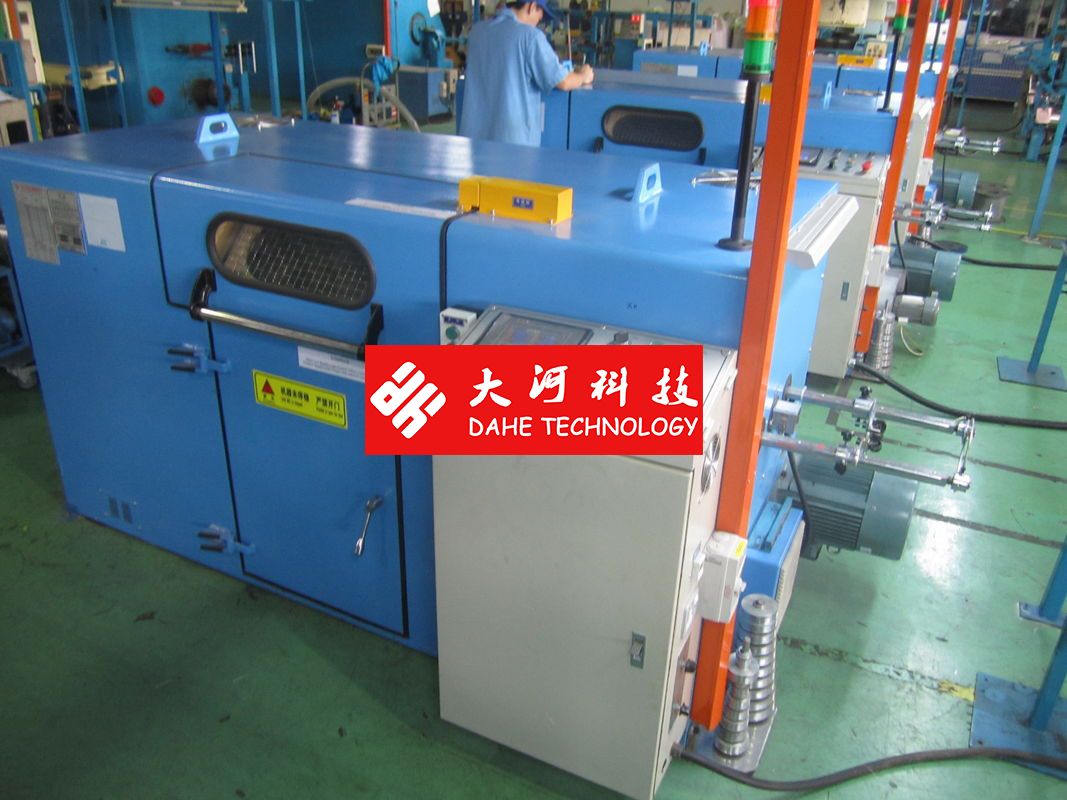

DAHETEC Double Twist Bunching Machine , Copper Wire Bunching Machine
Quick Details:
Japan Technology, product in China
DAHETEC® Series Model B normal wire high speed bunching machine and double twist bunching machine.
New arrival, mainly apply for stranding the electrical wire and automobile wire and other small section area conductor.
Characteristics:
With high rotation speed, with constant tension from empty bobbin to full bobbin, with superior quality for twist wire, Only need to change the capstan wheel to change the pitch. Easy to operate.The machine is driven by synchronization strap.
Specifications:
| Equipment models | DHT-650B-5 |
| Twisting usage | It is applied to the twisting of aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires),double twisting for core wires. |
| Single wire dia(mm) | φ0.15-φ1.04 |
| Stranding section area (mm²) | 0.35-6.0 |
| Core wire single wire dia | φ0.5-φ3.0 |
| Core wire stranding outer dia | φ1.0-φ6.0 |
| Pitch(mm) | 11.6-100(34zones) |
| Direction of lay | Optional for right or left |
| Outer dia*bore*outer width | φ630*φ56*475 φ630*φ127*475 |
| Max rotating speed | 2000(4000twist) |
| Main motor power | 7.5KW |
| Inverter power | 7.5KW |
| Tension control method | Touch screen +PLC+ magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin |
| Magnetic powder clutch | 5kgf |
| Protection | Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived. |
| Brake mode | Electromagnetic brake |
| Traversing method | Rolling ring drive units, winding pitch and breadth are adjustable |
