Product Details:
Payment & Shipping Terms:
|
| Color: | Sky Blue Wire Machinery | Fit For Bobbin: | Diameter 300mm |
|---|---|---|---|
| Wire: | Enamelled Wire,core Wire | Fit Wire: | Copper Wire,silver Jacketed Wire,tinned Wires |
| Control Type: | Knob Control | Tension Control: | Mechaism Friction |
| High Light: | wire twister machine,automatic wire twisting machine | ||

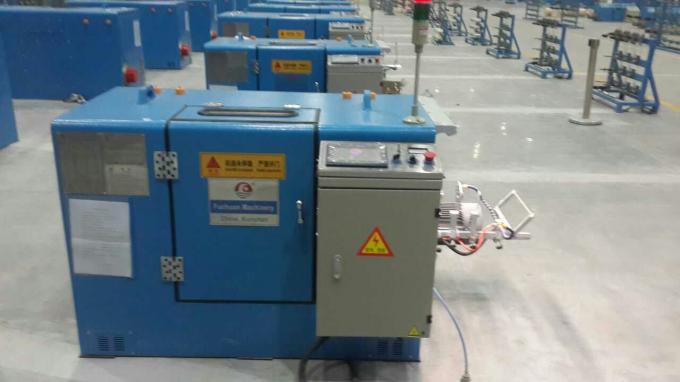

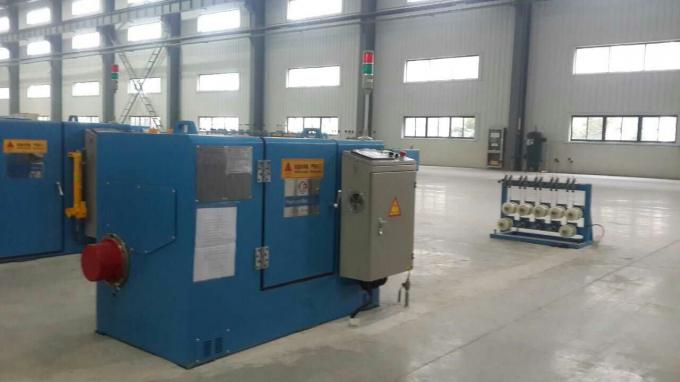

DAHETEC Knob Control Wire Twisting Machine 10 Zones 6000 Twist Rotating Speed
Quick Details:
Apply for twisting of above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires,double twisting for core wires.
Series Model A normal wire high speed bunching machine and double twist bunching machine
Characteristics:
Japan Technology, product in China
Characteristics:
1. High speed, good stability

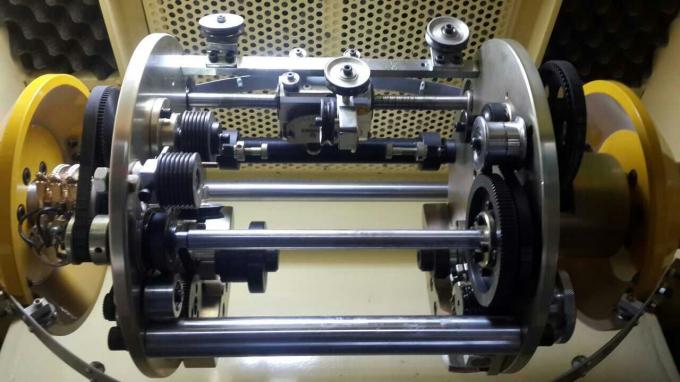

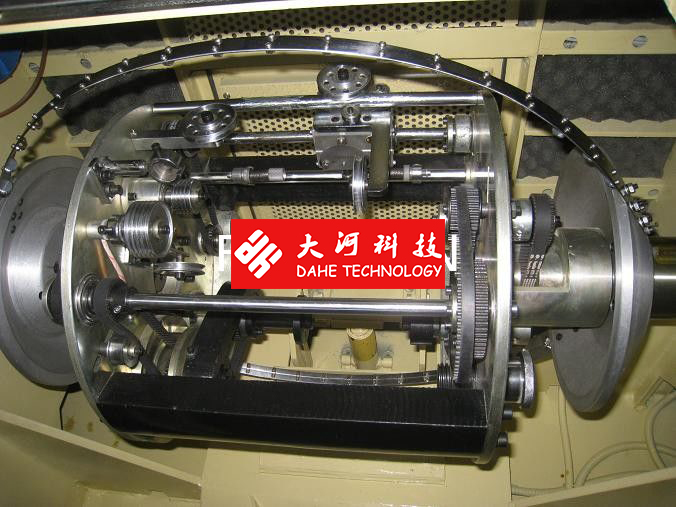

2. Wire from the spindle guide wheel directly over the line to the bow belt, avoid scratching, strand jumping for the aluminum plate rotation wheel failure
3. Shaft: use grease lubrication
4. Shaft and aluminum plate after high speed dynamic balance treating
5. Noise is lower than the 75 dB
6. Twisted bow: Use Japan high-speed spring steel, after heat treatment.
7. many safety protection, each enabling gate contact is not in place, unable to start or automatic braking
Specifications:
| Equipment models | DHT-300A |
| Twisting usage | It is applied to the twisting of above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires,double twisting for core wires. |
| Single wire dia(mm) | φ0.08-φ0.28 |
| Stranding section area (mm²) | 0.035-0.45 |
| Core wire single wire dia | φ0.25-φ0.8 |
| Core wire stranding outer dia | φ0.5-φ1.6 |
| Pitch(mm) | 4.5-17.5(10zones) |
| Direction of lay | Optional for right or left |
| Outer dia*bore*outer width | φ300*φ30*160 |
| Max rotating speed | 3000(6000twist) |
| Main motor power | 3.7KW |
| Inverter power | 3.7KW |
| Tension control method | Mechanism friction |
| Magnetic powder clutch | 1.2kgf |
| Protection | Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived. |
| Brake mode | Electromagnetic brake |
| Traversing method | Rolling ring drive units, winding pitch and breadth are adjustable |
| Operation mode | Push-button control |
| Dimension(mm) | 2300L*1000W*1150H |
