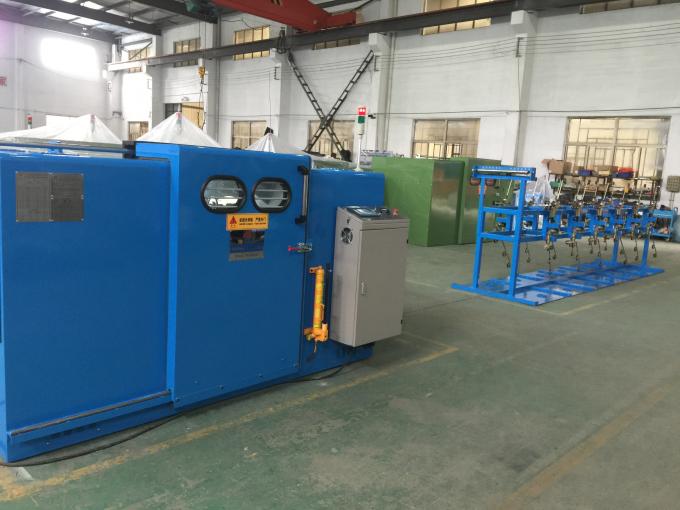

Dahe Standard Double Copper Wire Twisting Machine / Bunching machine Diameter 630Mm Touch Screen Operation

DAHETEC Standard Double Copper Wire Twisting Machine / Bunching machine Diameter 630Mm Touch Screen Operation

Quick Details:

Series for Model B normal wire high speed bunching machine and double twist bunching machine

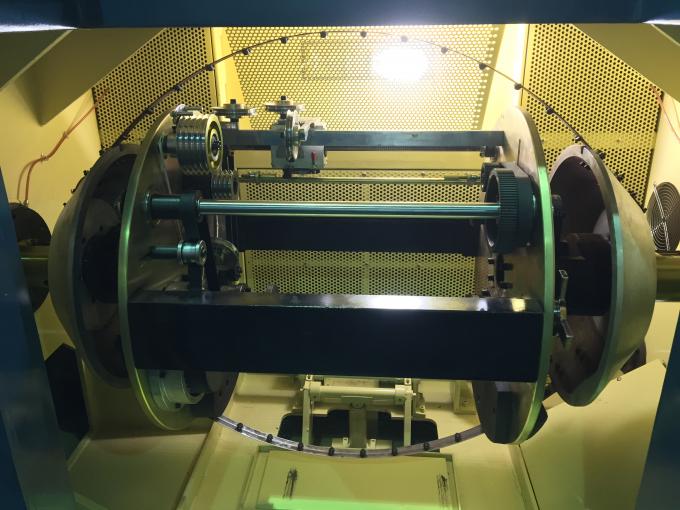

With high rotation speed, with constant tension from empty bobbin to full bobbin, with superior quality for twist wire, The machine is driven by synchronization strap. Only need to change the capstan wheel to change the pitch. Easy to operate.

Characteristics:

It is applied to the twisting of aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires),double twisting for core wires.

Specifications:

Equipment models	DHT-650B-4
Twisting usage	It is applied to the twisting of aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires),double twisting for core wires.
Single wire dia(mm)	φ0.15-φ1.04
Stranding section area (mm²)	0.35-6.0
Core wire single wire dia	φ0.5-φ3.0
Core wire stranding outer dia	φ1.0-φ6.0
Pitch(mm)	11.6-100(34zones)
Direction of lay	Optional for right or left
Outer dia*bore*outer width	φ630*φ56*475 φ630*φ127*475
Max rotating speed	2000(4000twist)
Main motor power	7.5KW
Inverter power	7.5KW
Tension control method	Touch screen +PLC+ magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin
Magnetic powder clutch	5kgf
Protection	Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived.
Brake mode	Electromagnetic brake
Traversing method	Rolling ring drive units, winding pitch and breadth are adjustable



Other Information

FOB SHENZHEN



Payment

TT, L/C



Delivery

FOB SHENZHEN



Origin

China



Minimum Order

1 set



Package



with container
