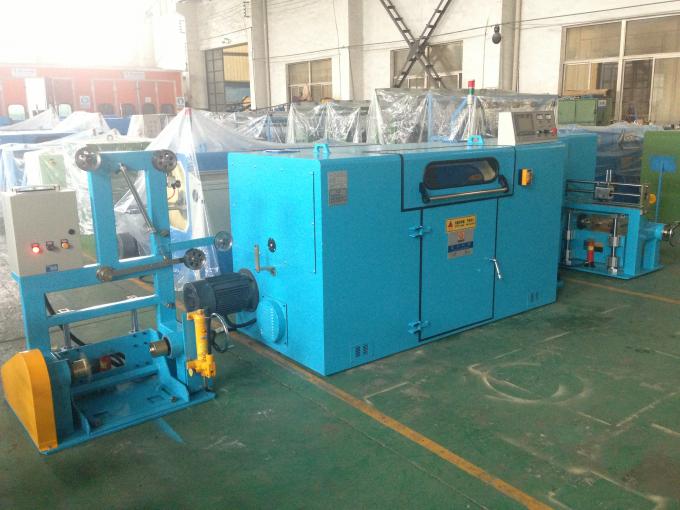

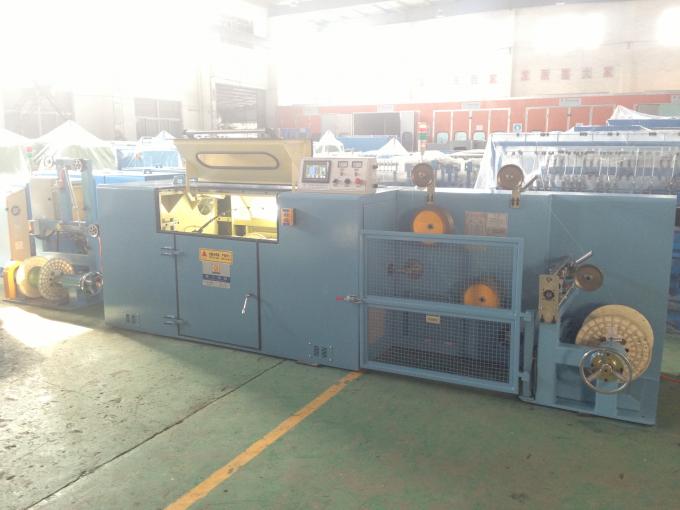

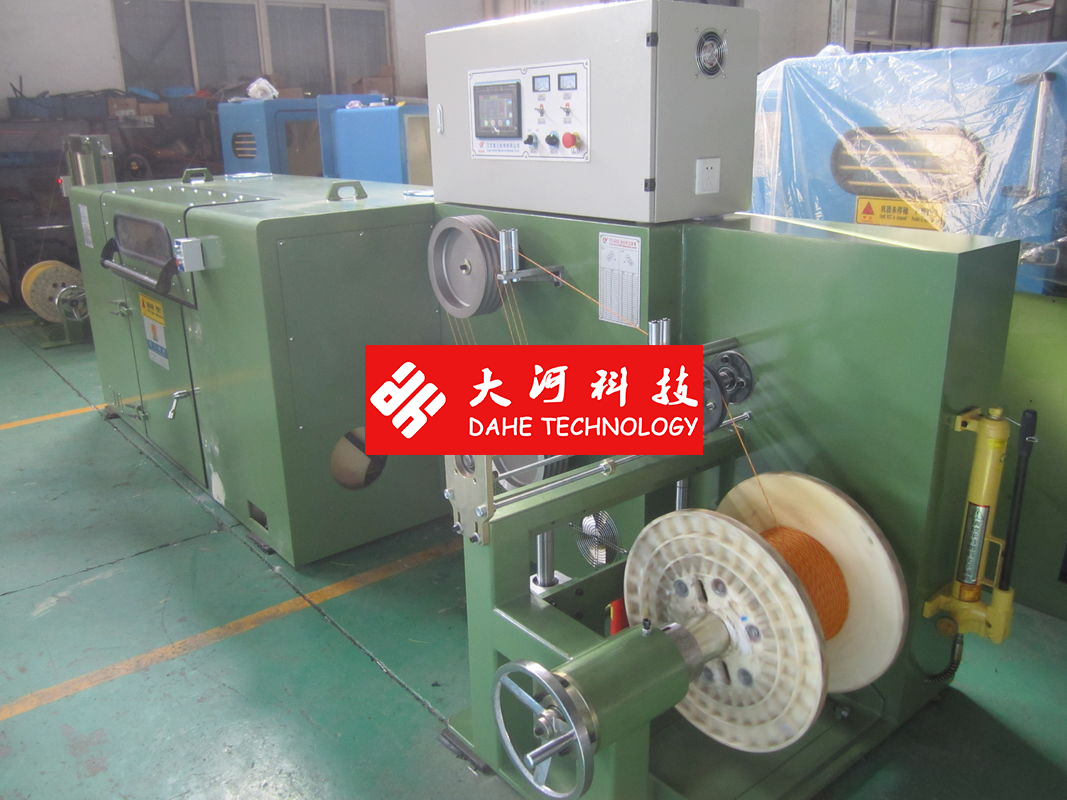

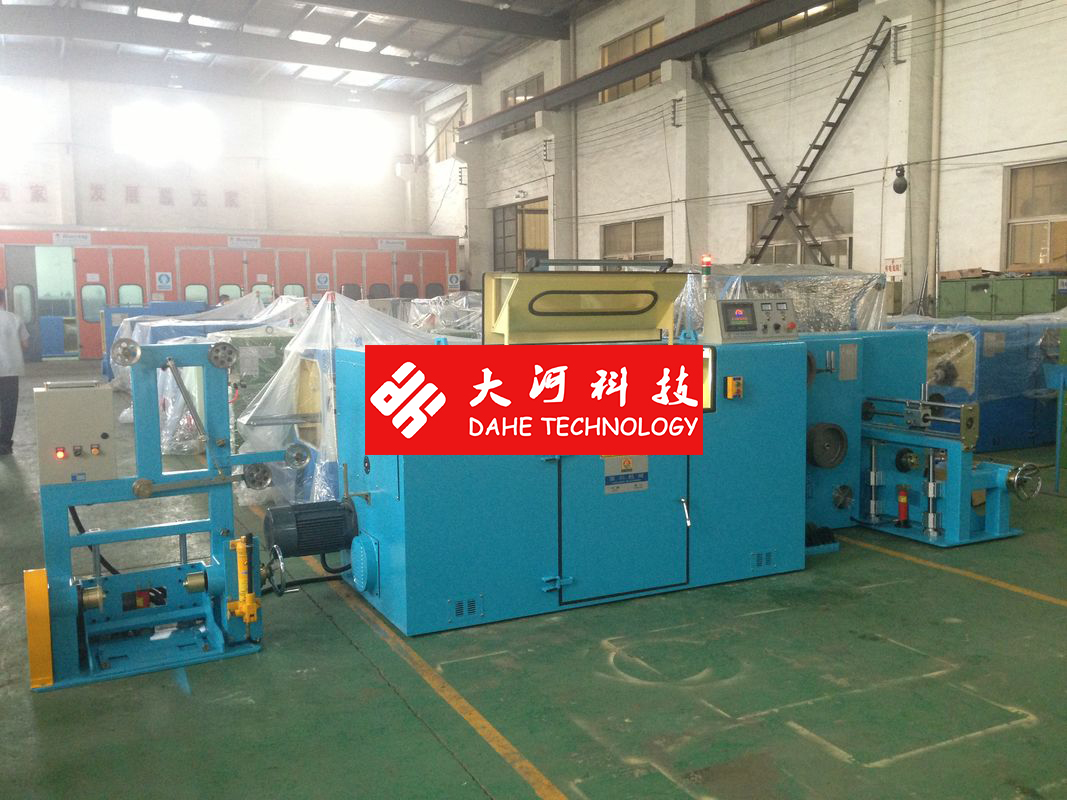

DAHETEC High Speed Wire Twisting Machine / quimpment Sky Blue φ400×φ25×276 Pay Off Bobbin
Quick Details:
A. Parameter of DHT-500E-1 high speed double twist bunching machine:
Apply for producing the high frequency data cable, Lan cable(cat6 cable),USB2.0,USB3.0,Cate-6e,Cate-7e,HDMI and other high speed data cable.
1. Applied for wire :core wire φ1.0～φ3.0mm
2. Max outerside twisted wire: core wire φ2.0～φ6.0mm
3. Pay off bobbin:φ400*φ25* 276, position hole φ20 ,centre distance130. plastic bobbin.
φ500*φ40* 340, position hole φ20 ,centre distance130. plastic bobbin
4. Take up bobbin:φ630mm×φ40mm×420. position hole φ20 ,centre hole 130 plastic bobbin
5. Max speed of bow:2000RPM (with bow traverse guidewheel)
6. Double twist pitch:20～90mm
7. Traverse:φ30mm rolling ring drive units, winding pitch and breadth are adjustable
8. Main power:7.5KW inverter motor+inverter
9. Direction:can change the direction of left or right,to change the direction is to change the gear.easy to operate.
10. Brake:adopt electromagnetic break, when meters arrived it will automatically stopped.
11. Tension control: PLC+magnetic powder clutch,with stable tension.

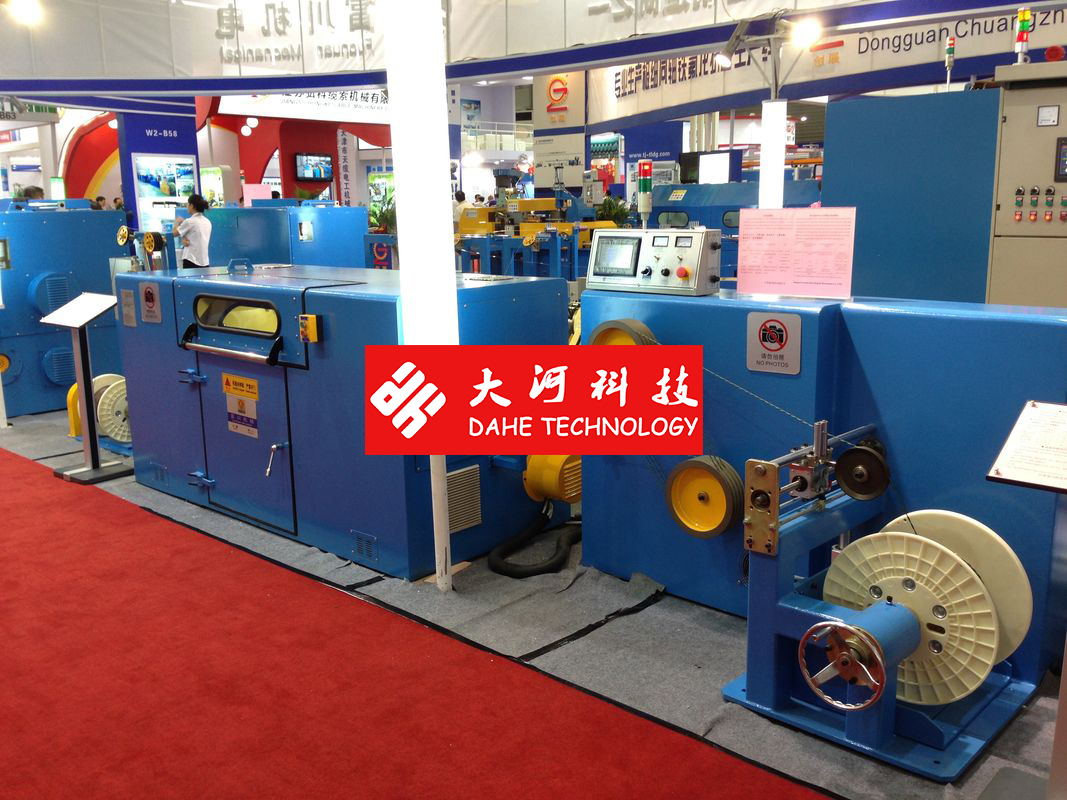

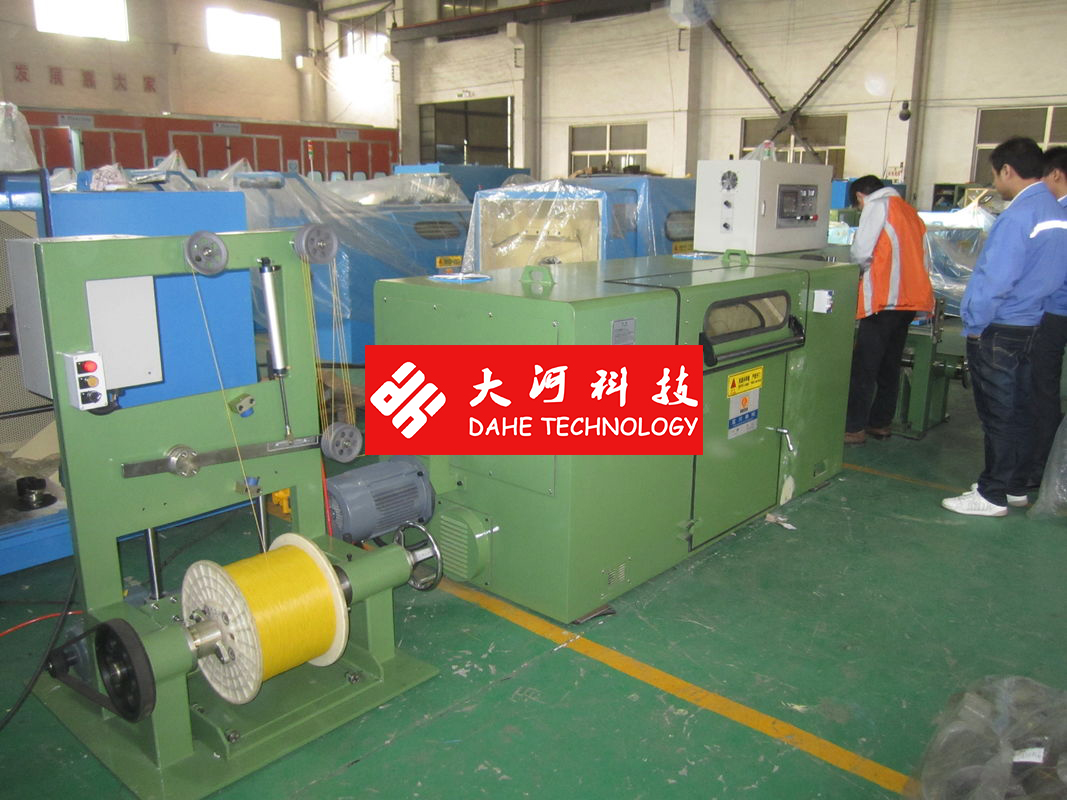

Characteristics
Apply for high frequency data cable, Lan cable(cat6 cable).Non twist after double twisting, make the insulated core wire interlace uniformly, avoid the nonuniform twist force, thus make the finished wire with the uniform, precision pitch. This machine is adopted for the high speed data wire&cable(contain the USB2.0,USB3.0,CATE-6E,HDMI and other wire),combined the functions and merits of no-twist stranding machine and high speed wrapping machine. The two machine can operate separately and simultaneously. Device structure: active pay off, no-twist stranding machine, high frequency spark tester, wrapping machine, take up and other parts.
Specifications:
| Equipment models | DHT-300E | DHT-400E | DHT-500E | DHT-630E |
| Usage | Apply for producing the high frequency data cable, Lan cable(cat6 cable),USB2.0,USB3.0,Cate-6e,Cate-7e,HDMI and other high speed data cable. | |||
| Core wire single wire dia | 0.5-1.5 | 0.5-2.0 | 1.0-4.0 | 2.0-5.0 |
| Core wire stranding outer dia | 1.0-3.0 | 1.0-4.0 | 2.0-8.0 | 4.0-10.0 |
| Pitch(mm) | 5-50(24zones) | 10-90(24zones) | 15-120(34zones) | 20-160(24zones) |
| Direction of lay | Optional for right or left | |||
| Outer dia*bore*outer width | 300*30*160 | 400*56*300 | 500*56*300
| 630*56*475
|
| Outer pay off type | active pay off | |||
| Inner pay off type | magnetic tension pay off | |||
| take up bobbin(mm) | 300*30*160 | 500*56*375 | 630*56*475
| 800*80*600
|
| Max rotating speed | 2500(5000twist) | 2500(5000twist) | 2000(4000twist) | 1500(3000twist) |
| pay off motor power | 0.75KW | 1.5KW | 1.5KW | 2.2KW |
| main motor power | 3.7KW | 5.5KW | 5.5KW | 7.5KW |
| Tension control method | Touch screen +PLC+ magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin | |||
| Inner magnetic powder clutch | 0.6kgf | 1.2kgf | 2.5kgf | 5kgf |
| take up magnetic clutch | 2.5kgf | 5kgf | 5kgf | 10kgf |
| Brake mode | Electromagnetic brake | |||
| Traversing method | Rolling ring drive units, winding pitch and breadth are adjustable | |||
| Operation mode | Touch screen operation | |||
