Dahe 19Pcs Flexible Wire Twisting Machine , Tinned Wire Bunching Machine

上架时间：2022-03-14

浏览次数：466

产品类型：

产品颜色：

产品价格：￥

Fit For Wire:	19pcs Copper Wires φ0.16mm - φ0.64mm In One Time	Fit For Bobbin:	Diameter 800 Mm
Wire:	19pcs Of Copper Wire	Tension Control Type:	Magnetic Tension
Type:	Computer Control Metal Twisting Machine	Twisting Usage:	19pcs Of Copper Wire
High Light:	wire twister machine , metal twisting machine

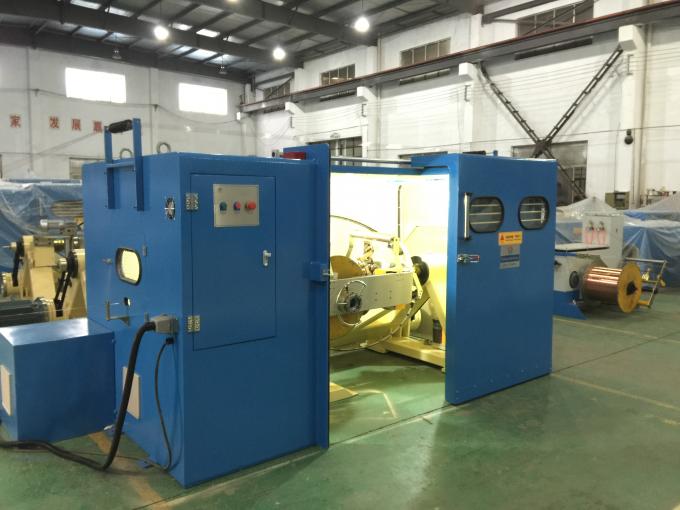

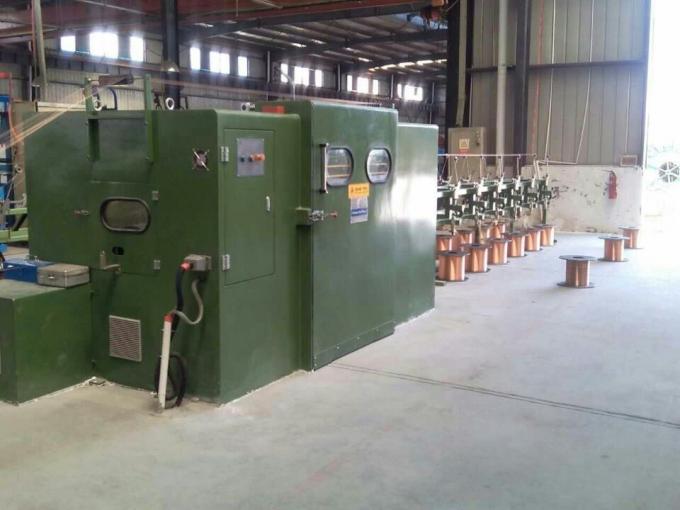

DAHETEC 19Pcs Flexible Wire Twisting Machine , Tinned Wire Bunching Machine

Quick Details:

Series for 1+6+12 bunching machine 19pcs copper wires φ0.16mm - φ0.64mm in one time

It is the latest developed machine. This machine replace the model 200 tube bunching machine with the high productivity(It is 4.5times than tube machine for the 1+6+12 conductors normal bunching)low power, small floor place, low noise and other merits.

Characteristics:

New arrival, instead of 200 tube bunching machine, have high productivity(4.5times than normal tube machine for regular 1+6+12 conductors ),energy-saving, small size, low noise, etc.

Equipment models	1+6+12(630bobbin)	DHT-1+6+12(800bobbin)
Twisting usage	It is applicable to bunching 19pcs copper wires in one time
Single wire dia(mm)	φ0.16-φ0.64
Stranding section area (mm²)	2.5-6.0
Pitch(mm)	11.6-100(34zones)
Direction of lay	Optional for right or left

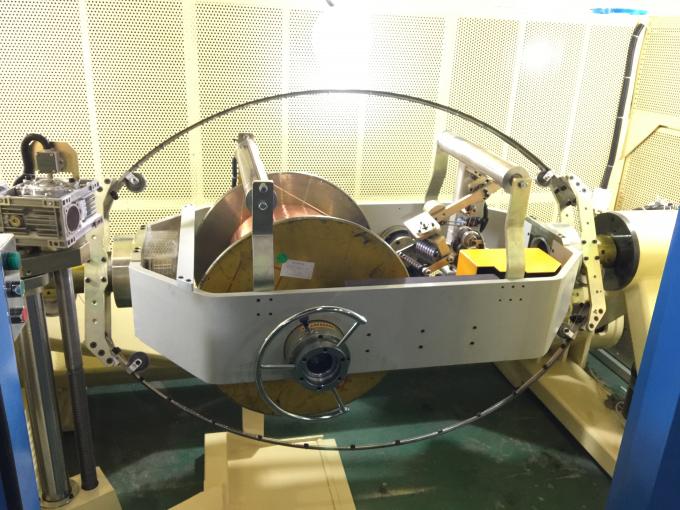

Pay off bobbin size	φ630φ127475	φ800φ127600
Max rotating speed	2000(4000twist)	1200(2400twist)
Pay off type	Mechanical friction	Magnetic tension
Pay off machine power	5.5KW	7.5KW
Take up bobbin size	φ630φ125475	φ630φ125475


Total power	21KW	35KW
Tension control method	Touch screen+PLC+magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin
Magnetic powder clutch	5.0kgf	10.0kgf
Protection	Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived.
Brake mode	Electromagnetic brake
Traversing method	Rolling ring drive units, winding pitch and breadth are adjustable
Operation mode	Touch screen operation
Dimension(mm)	10000L2500W1650H	10000L2500W1650H
