Product Details:
Payment & Shipping Terms:
|
| Color: | Sky Blue Wire And Cable Machinery | Fit For Bobbin: | Diameter 630mm |
|---|---|---|---|
| Fit Copper Wire: | 0.12mm-0.52mm | Wire: | Core Wire,bare Copper Wire,tinned Wires,silver Jacketed Wires |
| Control Type: | Computer Control | Magnetic Powder Clutch: | 2.5kgf |
| High Light: | cable twisting machine,wire twist machine | ||

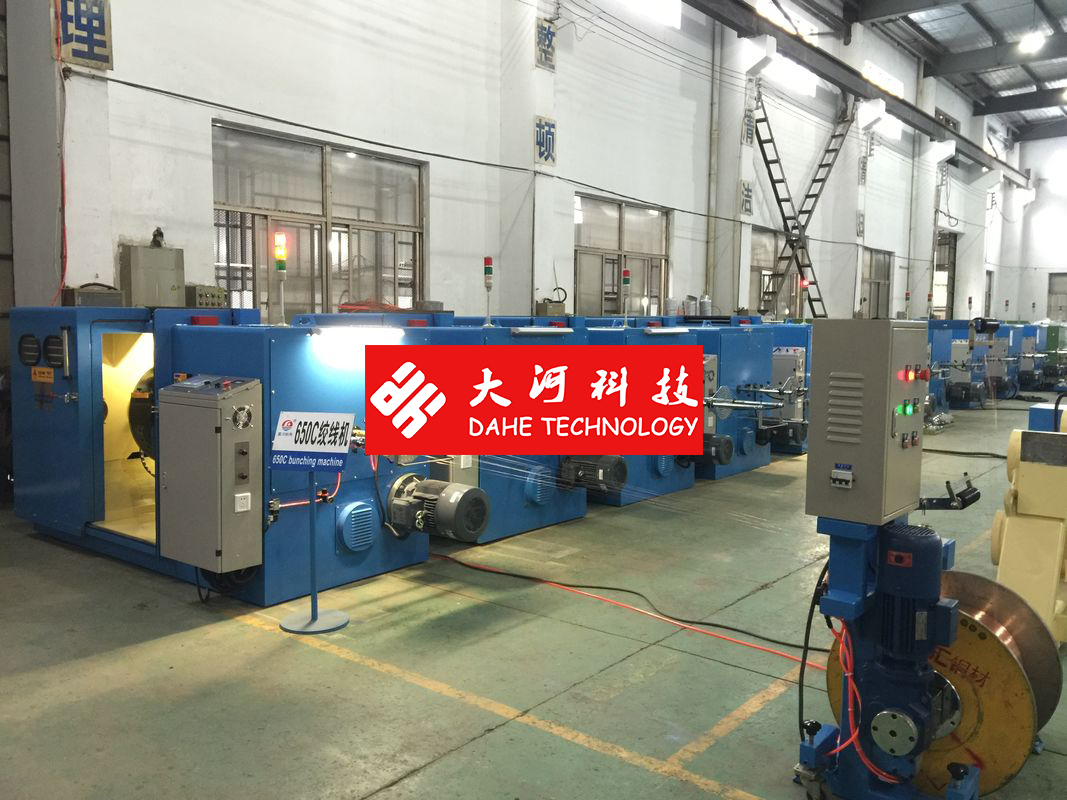

DAHETEC Copper Wire Bunching Machine 2.5Kgf Magnetic Powder Clutch Bow Cabling Machine / Equipment
Quick Details:
Series for Model C normal wire high speed bunching machine and double twist bunching machine
Apply for the bunching of aerospace, medical instrument, cellphone,notebook PC and ultra fine conductor(above seven pcs of alloy wires, tinned wires, silver jacketed wires and enamelled wires).
Characteristics:
Japan Technology, product in China
With high rotation speed, with constant tension from empty bobbin to full bobbin, with superior quality for twist wire, The machine is driven by synchronization strap. Only need to change the capstan wheel to change the pitch. Easy to operate.
Specifications:
| Equipment models | DHT-650C-3 |
| Twisting usage | It is applied to the twisting of aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires),double twisting for core wires. |
| Single wire dia(mm) | φ0.12-φ0.52mm |
| Stranding section area (mm²) | 0.3-4.0 |
| Core wire single wire dia | φ0.5-φ2.0 |
| Core wire stranding outer dia | φ1.0-φ4.0 |
| Pitch(mm) | 11.6-100(34zones) |
| Direction of lay | Optional for right or left |
| Outer dia*bore*outer width | φ630*φ56*475 φ630*φ127*475 |
| Max rotating speed | 2400(4800twist) |
| Main motor power | 11KW |
| Inverter power | 11KW |
| Tension control method | Touch screen +PLC+ magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin |
| Magnetic powder clutch | 5kgf |
| Protection | Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived. |
| Brake mode | Electromagnetic brake |
| Traversing method | Rolling ring drive units, winding pitch and breadth are adjustable |
