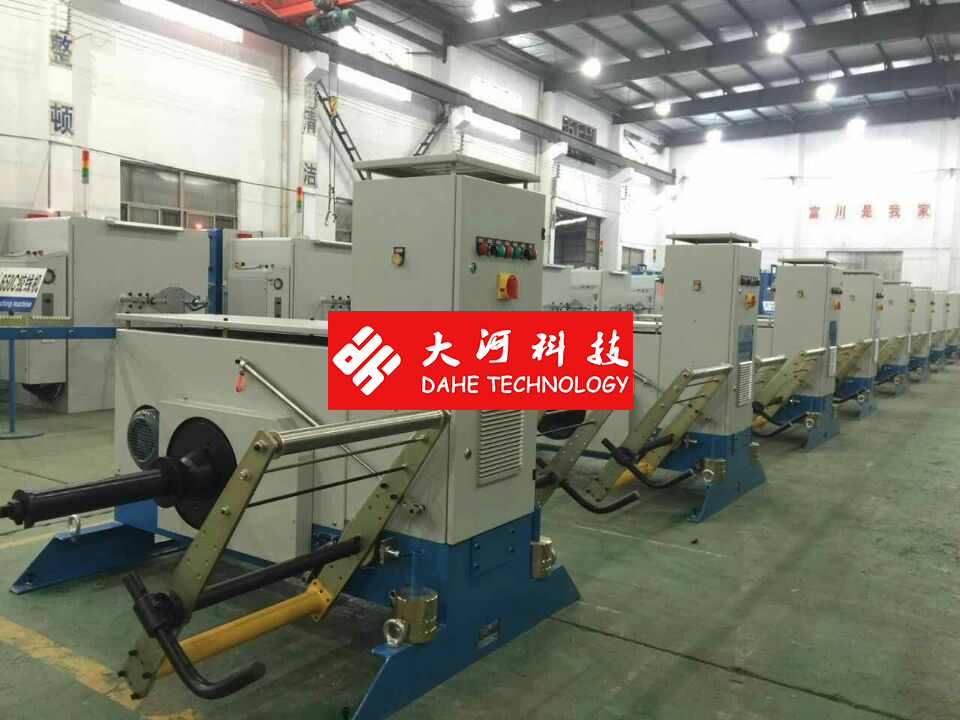

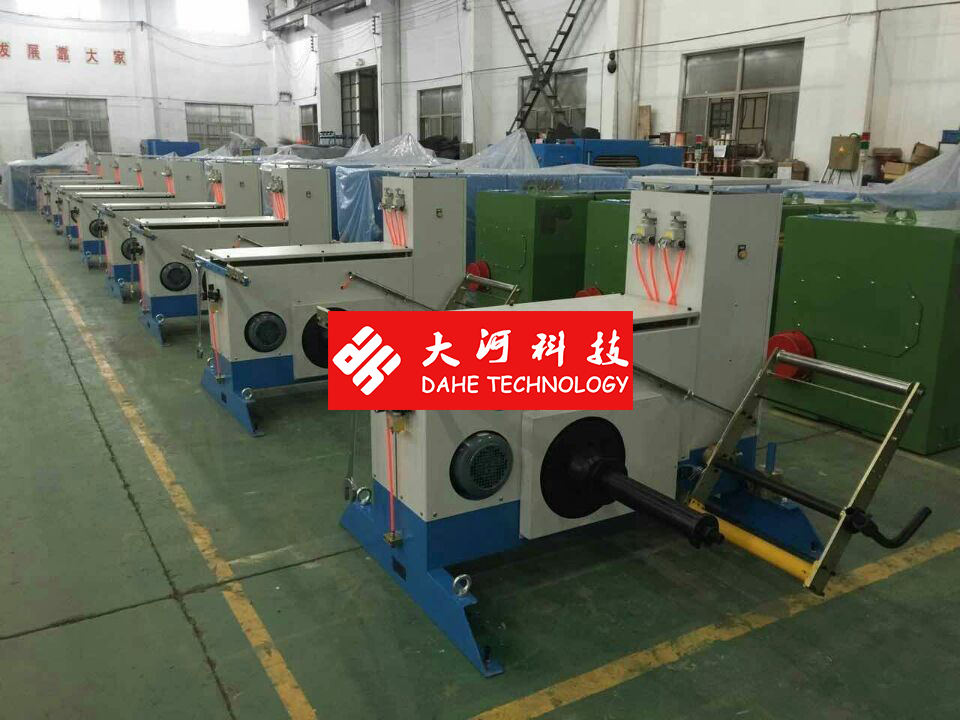

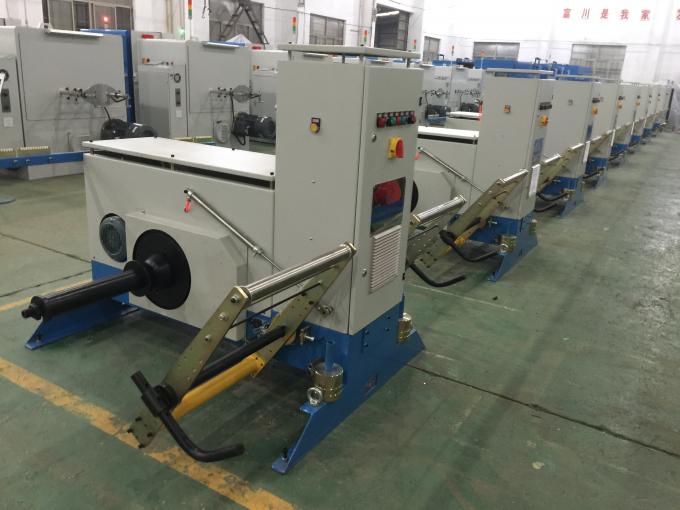

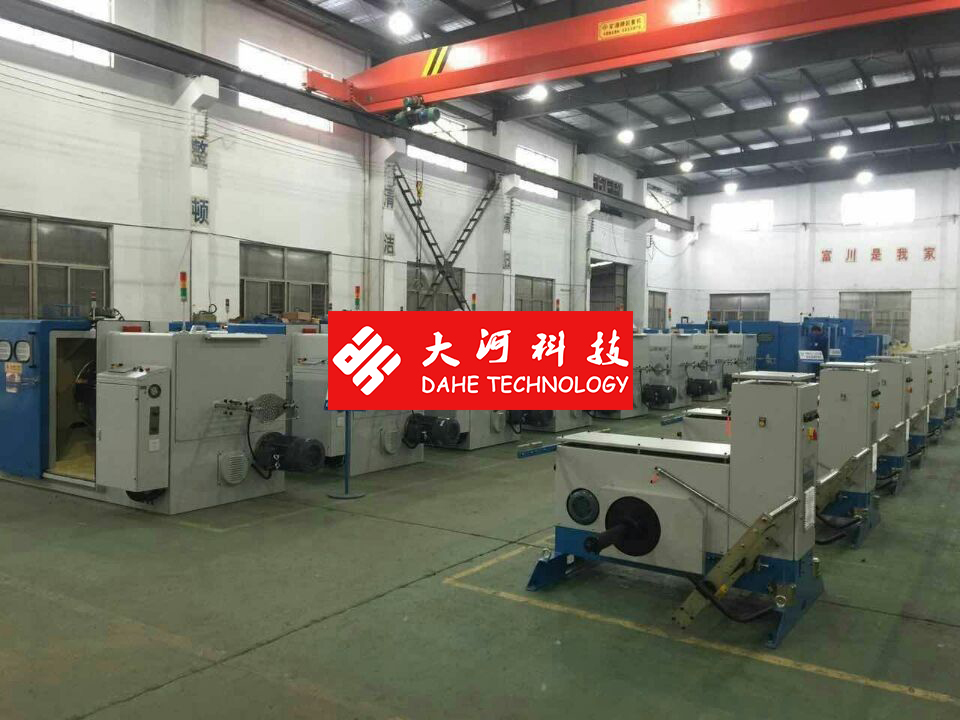

Active Pay Off Machine Multiple Drawing Bobbins For Bunched Copper Wire

Quick Details:

It is constant tension,non-twist wire single bobbin pay off machine.Applied to single wire and multiple drawing wires pay off. Match up with the high speed bunching machine,easy to operate,save more floor area.

Specifications:

Model: DHT-630-2 double shaft active pay off machine

Usage: Applied to doubling wire pay off, match up with the high speed bunching machine.

Single wire diameter: dia0.08-0.64mm

Pay off bobbin: PND630

Motor power:1.5KW

Tension control: Pneumatic tension

Wire speed: It is feedback the singnal to the inverter to control the rotating speed of motor by displacement sensor.

Control type: Synchronize with the main machine

Protection: Machine is stopped when wire is broken.

Fasten type: Pneumatic fasten
