Product Details:
Payment & Shipping Terms:
|
| Wire: | Core Wire Double Twist | Color: | Sky Blue |
|---|---|---|---|
| Magnetic Powder Clutch: | 1.2kgf | Fit For Bobbin: | Diameter 500/630/800/1000mm |
| For Wire: | Bare Copper Wire/silver Jacketed Wire/enamelled Wire | Wire Dia: | 0.08-0.45mm |
| High Light: | automatic wire twister,cable twisting machine | ||

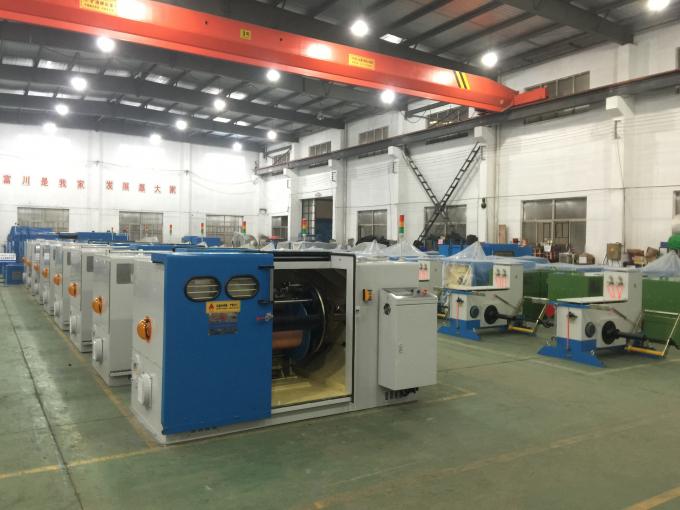

Bare Copper Wire Bunching Machine
Quick guide:
Japanese Technology ,Product in China
Apply for twisting aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires).
Characteristics:
It has been developed to produce very accurate strands with very small sections for the electronic industry. Simultaneously produce two different strand sections, on equal or different reels.One motor drive two shafts can be more environmental and power. With the main shaft meter counter, the machine twist the same types of line, and the tolerance is only 0.01%.
Patent No.:201320522156.7
Specifications:
| Model | DHT-250D | DHT-300D | DHT-500D | DHT-650D |
| Twisting usage | Apply for twisting aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires). | |||
| Single wire dia(mm) | 0.03-0.18 | 0.05-0.28 | 0.08-0.45 | 0.15-1.04 |
| Stranding section area (mm²) | 0.0049-0.30 | 0.0137-0.45 | 0.05-2.0 | 0.35-6.0 |
| Pitch(mm) | 0.8-10.8(24zones) | 1.6-21.6(24zones) | 6.3-52.3(24zones) | 11.6-100(34zones) |
| Direction of lay | Free to right or left | |||
| Take up bobbin size(mm) | 250*30*185 | 300*30*185 | 500*56*375 500*127*375 | 600*56*475 600*127*475 |
| Max rotating speed | 3500(7000twist) | 3500(7000twist) | 3000(6000twist) | 2000(4000twist) |
| Power | 3.7KW | 5.5KW | 7.5KW | 11KW |
| Tension control method | Touch screen +PLC+ magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin | |||
| Magnetic powder clutch | 0.3kgf | 0.6kgf | 1.2kgf | 5kgf |
| Protection | Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived. | |||
| Traversing method | Rolling ring drive units, winding pitch and breadth are adjustable | |||
| Dimension(mm) | 2400L*1750W*1100H | 2400L*1750W*1100H | 2800L*2250w*1500H | 3500L*2850W*1800H |
