Product Details:
Payment & Shipping Terms:
|
| Color: | Sky Blue | Take Up Bobbin: | Diameter 1250mm |
|---|---|---|---|
| Fit Copper Wire: | 0.5mm-2.54mm | Wire: | Bare Copper Wires, 2) Tinned Wires, 3)silver Jacketed Wires ,4)enameled Wires, 5)double Twisting For Core Wires. |
| Direction Of Lay: | Free To Left Or Right | Operation Mode: | Touch Screen Operation |
| High Light: | automatic wire twister,wire twist machine | ||

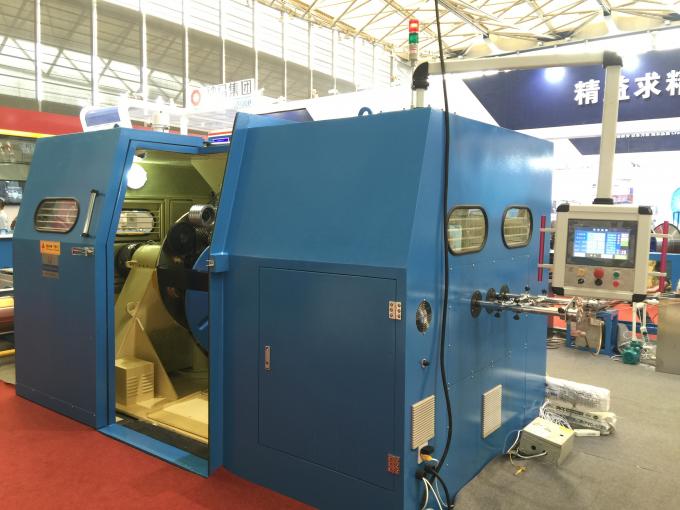

DAHETEC DHT-1250B Copper Wire Bunching Machine
Quick Details:
Apply for twisting of seven pcs or above, such as 1) bare copper wires, 2) tinned wires, 3)silver jacketed wires ,4)enameled wires, 5)double twisting for core wires.
Characteristics:
Japan Technology, product in China
New arrival, instead of the traditional 400 tube bunching machine with high productivity(4.5times than the machine, especially for 1+6 conductors twisting), save energy, smaller size, lower noise etc.
Specifications:
| Equipment models | DHT-1000B | DHT-1250B | DHT-1600B |
| Twisting usage | Apply for twisting of seven pcs or above, such as 1) bare copper wires, 2) tinned wires, 3)silver jacketed wires ,4)enameled wires, 5)double twisting for core wires. | ||
| Single wire dia(mm) | 0.30-2.14 | 0.5-2.54 | 0.5-2.52 |
| Stranding section area (mm²) | 6.0～25.0
| 10.0～35.0
| 16.0～95.0
|
| Core wire single wire dia(mm) | 2.0～5.0 | 3.0～6.0 | 3.0-10 |
| Core wire stranding outer dia(mm) | 4.0～10.0 | 6.0～15.0 | 8.0～20.0 |
| Pitch(mm) | 35-200(12 classes) | 50-250(12 classes) | 80-350(12 classes) |
| Direction of lay | Free for right or left | ||

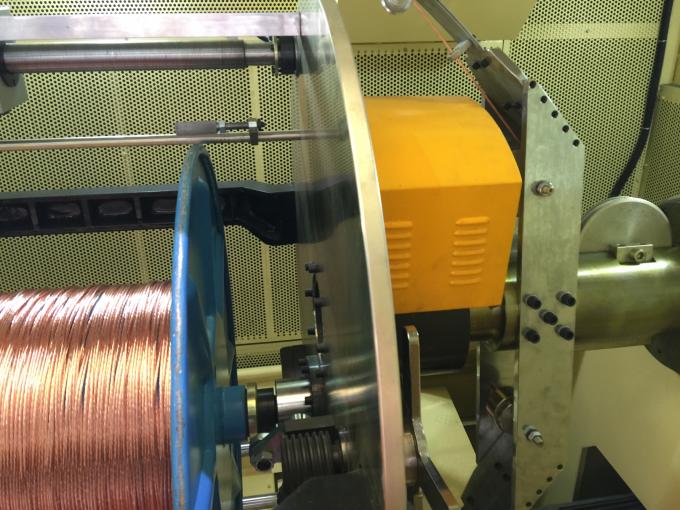

Take up bobbin Outer dia*bore*outer width | 1000*80*750 | 1250*80*950 | 1600*80*1180 |
| Max rotating speed | 1000rpm(2000twist) | 800rpm(1600twist) | 600rpm(1200twist) |
| Main motor power | 18.5KW | 22KW | 30KW |
| Inverter power | 18.5KW | 22KW | 30KW |
| Tension control | Touch screen+ PLC+ magnetic powder clutch, ensure the constant tension from empty to full bobbin | ||
| Magnetic powder clutch | 20kgf | 20kgf | 40kgf |
| Protection | automatically brake/stop 1)wire inside and outside is broken 2)the preset length is arrived | ||
| Brake mode | Electromagnetic brake | ||
| Traversing method | Rolling wire with ring drive units, winding pitch and breadth are adjustable | ||
| Operation mode | Touch screen operation | ||
| Dimension L*W*H(mm) | 4000*2200*2100 | 4500*2600*2500 | 5000*3000*3000 |
