Product Details:
|
| Name: | Sky Blue Wire Take Up Machine | Fit For Bobbin: | Diameter 630mm |
|---|---|---|---|
| Fit Copper Wire: | 0.19mm-0.303mm | Adantage: | High Performance |
| Operation Mode: | Touch Screen Operation | Tension Control: | Constant Tension Control System |
| High Light: | wire twister machine,automatic wire twisting machine | ||

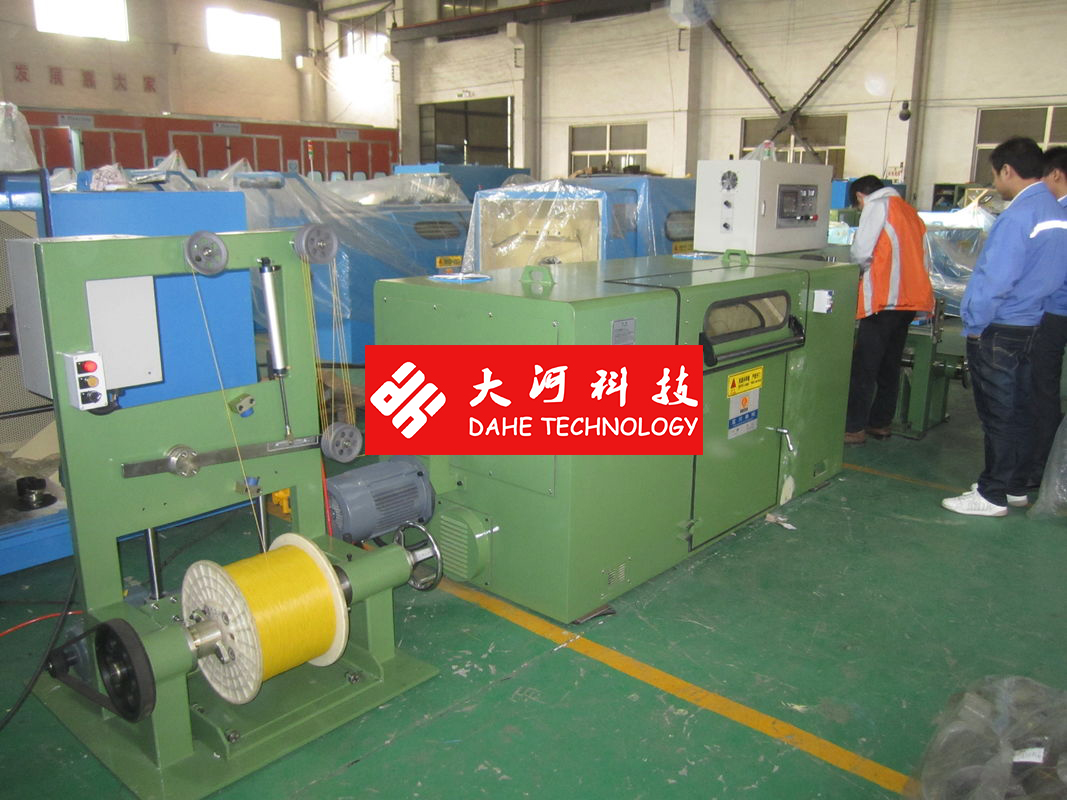

Sky Blue Wire Take Up Machine / High Performance Wire Twist Machine
Wire Take Up Machine Quick Details:
Wire Take Up Machine Series for Model B normal wire high speed bunching machine and double twist bunching machine
With high rotation speed, with constant tension from empty bobbin to full bobbin, with superior quality for twist wire, The machine is driven by synchronization strap. Only need to change the capstan wheel to change the pitch. Easy to operate.
Wire Take Up Machine Characteristics:
Wire Take Up Machine is applied to the twisting of aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires),double twisting for core wires.Espiccally for 37pcs nickel wire
Wire Take Up Machine Specifications:
| Equipment models | DHT-650B-4 Wire Take Up Machine |
| Twisting usage | It is applied to the twisting of aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires),double twisting for core wires. |
| Single wire dia(mm) | φ0.19-φ0.303 |
| Stranding section area (mm²) | 0.35-6.0 |
| Core wire single wire dia | φ0.5-φ3.0 |
| Core wire stranding outer dia | φ1.0-φ6.0 |
| Pitch(mm) | 11.6-100(34zones) |
| Direction of lay | Optional for right or left |
| Outer dia*bore*outer width | φ630*φ56*475 φ630*φ127*475 |
| Max rotating speed | 2000(4000twist) |
| Main motor power | 7.5KW |
| Inverter power | 7.5KW |
| Tension control method | Touch screen +PLC+ magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin |
| Magnetic powder clutch | 5kgf |
| Protection | Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived. |
| Brake mode | Electromagnetic brake |
| Traversing method | Rolling ring drive units, winding pitch and breadth are adjustable |
