| Name: | Tinned Wire Twisting Machine | Take Up Bobbin: | Diameter 300mm |
|---|---|---|---|
| Fit Wire Diameter: | 0.03mm-0.18mm | Wire: | Tinned Wires, Silver Jacketed Wires And Enamelled Wires |
| Direction Of Lay: | Free To Left Or Right | Operation Mode: | Touch Screen Operation |
| High Light: | wire twister machine,metal twisting machine | ||

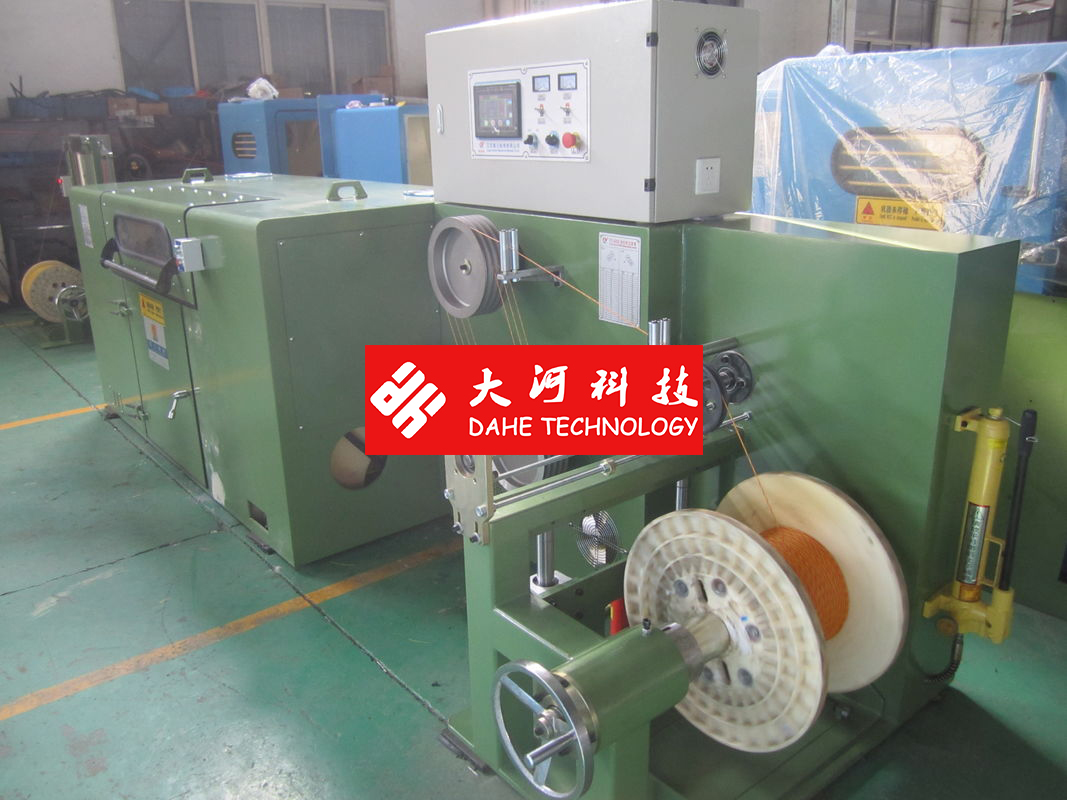

High Speed Tinned Wire Twisting Machine For Alloy Wires 0.03mm-0.18mm
Wire Twisting Machine Quick Details:
Wire Twisting Machine Apply for the bunching of aerospace, medical instrument, cellphone,notebook PC and ultra fine conductor(above seven pcs of alloy wires, tinned wires, silver jacketed wires and enamelled wires).
Wire Twisting Machine Characteristics:
1. High production speed, constant tension from empty to full bobbin, especially for high quality stranding wire.
2. Use shaft to calculate meters, less than 0.01% error for a certain wire&cable.
3. With DHT-100 active back-twist pay-off machine to achieve bunching instead of twisting.
4. Especially for twisting small cross-section area.
Wire Twisting Machine Specifications:
| Equipment Models | DHT-200B | DHT-250B | DHT-300B | DHT-400B | |
| Twisting Usage | Apply for the bunching of aerospace, medical instrument, cellphone,notebook PC and ultra fine conductor(above seven pcs of alloy wires, tinned wires, silver jacketed wires and enamelled wires). | ||||
| Single Wire Dia(mm) | 0.016～0.08 | 0.03～0.18 | 0.05～0.28 | 0.05～0.32 | |
| Stranding Section Area(mm²) | 0.0014～0.035 | 0.0049～0.3 | 0.0137～0.45 | 0.0137～1.0 | |
| Pitch(mm) | 0.8～4.0(14 classes) | 0.8~10.8(24classes) | 1.6～21.6(24classes) | 3.1～33.3(24classes) | |
| Direction of Lay | Free to right or left | ||||
Take-up Bobbin(mm) Outer dia*bore*outer width | 200*31*135 | 300*30*185 | 250*30*185 300*30*185 | 300*30*185 400*56*300 | |
| Max Rotating Speed(rpm) | 5000rpm(10000tpm) | 4000rpm(8000tpm) | 3500rpm(7000tpm) | 3500rpm(7000tpm) | |
| Main Motor Power | 2.2KW | 3.7KW | 3.7KW | 3.7KW | |
| Inverter Power | 2.2KW | 3.7KW | 3.7KW | 3.7KW | |
| Tension Control | Touch screen+ PLC+ magnetic powder clutch, ensure the constant tension from empty to full bobbin | ||||
| Magnetic Powder Clutch | 0.05kgf | 0.3kgf | 0.6kgf | 0.6kgf | |
| Protection | automatically brake/stop 1)wire inside and outside is broken 2)the preset length is arrived | ||||
| Brake Mode | Electromagnetic brake | ||||
| Traversing Method | Rolling wire with ring drive units, winding pitch and breadth are adjustable | ||||
| Operation Mode | Touch Screen Operation | ||||
| Dimension L*W*H | 2000*960*1100 | 2300*1100*1330 | 2300*1100*1330 | 2850*1150*1350 | |
