Single Twist Machine

当前位置：首页>Products>Single Twist Machine

Cable Laying Single Twist Machine Gear Pitch For PE / PVC Core Wire

上架时间：2022-03-14
浏览次数：327
产品类型：
产品颜色：
产品价格：￥
马上咨询
产品详情
Color:Sky Blue/apple GreenFit For Bobbin:Diameter1250mm
Wire:PE/PVC Core Wire Or Copper WireFit For Wire:Dia1.0mm-6.0mm
Max Speed:400rpmDirection Of Lay:Righ Or Left
Pitch:50-400Max Twist Diameter:30mm
Type:Gear

High Light:

wire buncher machine

,

electric wire making machine


Cable Laying Single Twist Machine Gear Pitch For PE / PVC Core Wire





Quick Details:



Series for 1250 gear type single twist (cable laying) machine



Characteristics:



It is mainly used in cable laying of computer wires, such as data cable and control cable. It may synchronize central coil tapping and side coil tapping. The entire machine is consists of pay off rack, central  bundler, side pay off rack for the central coil tapping set, single twist(cable-laying)machine and electrical control cabinet.



Specifications:



Equipment models

DHT-1250

Twisting usage

It is applied to the twisting of PVC/PE core wire or copper wire, central bundling or side bundling.

Applicable dia(mm)

φ1.0-φ6.0

Max twist outer dia

φ30

Pitch(mm)

50-400

Direction of lay

Optional for right or left

Take-up bobbin size

φ1250

Max rotating speed(rpm)

400

Traversing method

Traverse is adopt crossbar-less reciprocating

Take up tension

Pneumatic tension automatic regulate

Brake mode

Disc brake

Bundling mode

Central bundling or side bundling

Replace pitch mode

Computer pitch or gear pitch













































Other Information


FOB SHENZHEN

Payment

TT, L/C

Delivery

FOB SHENZHEN

Origin

China

Minimum Order

1 set

Package

with container

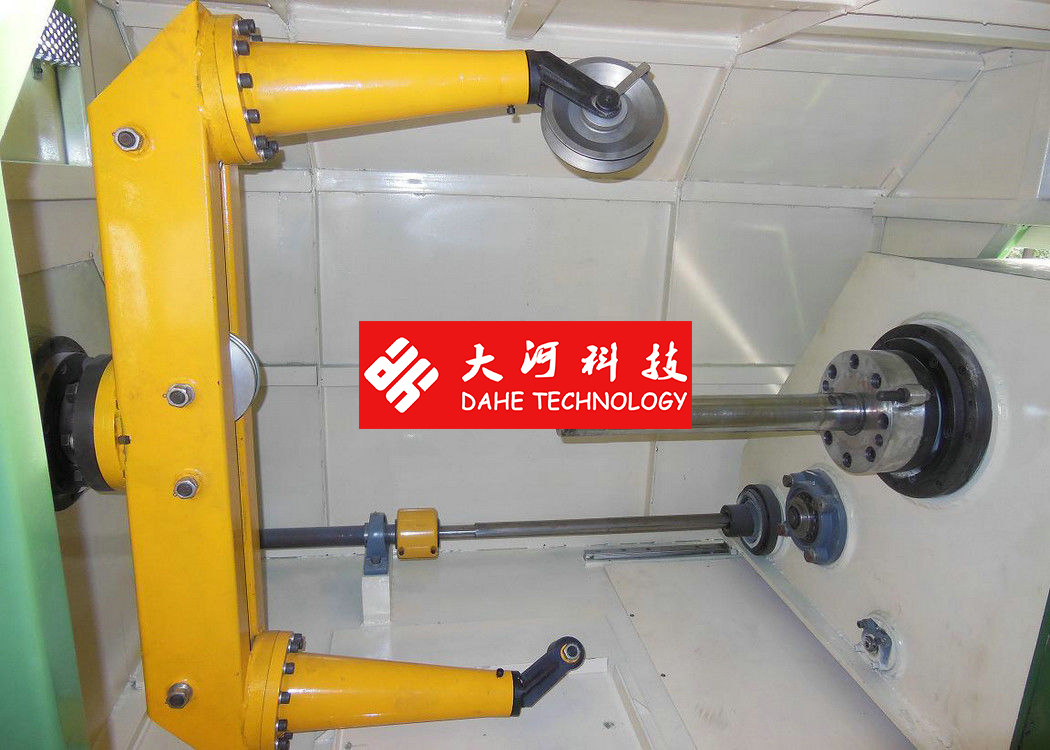

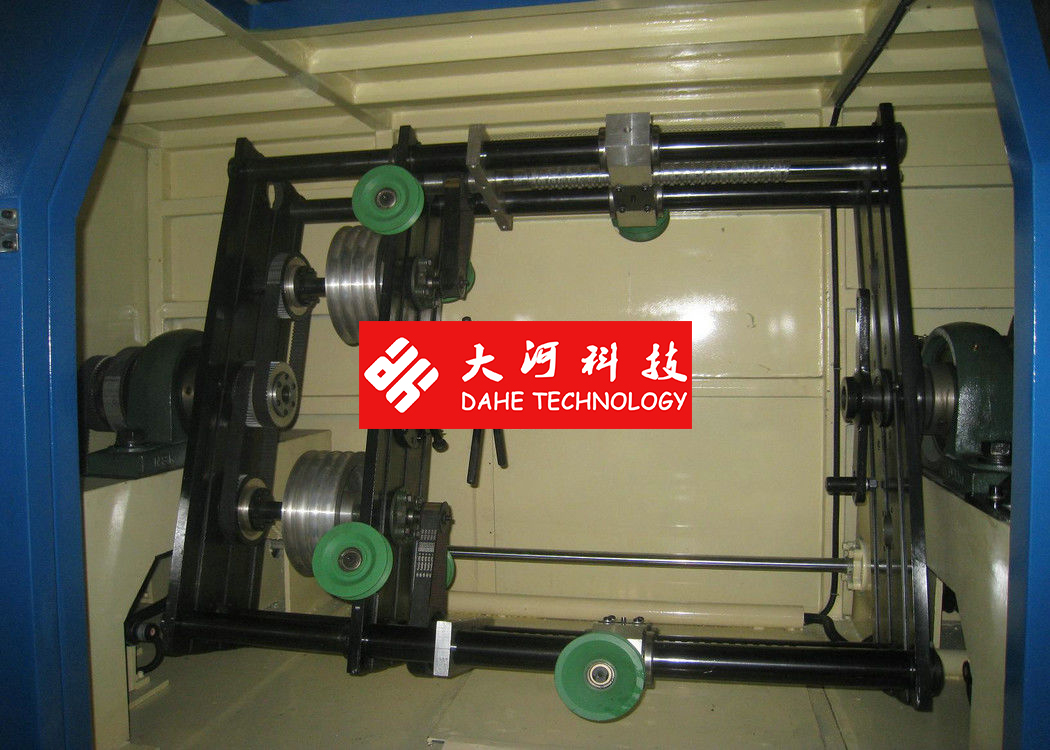

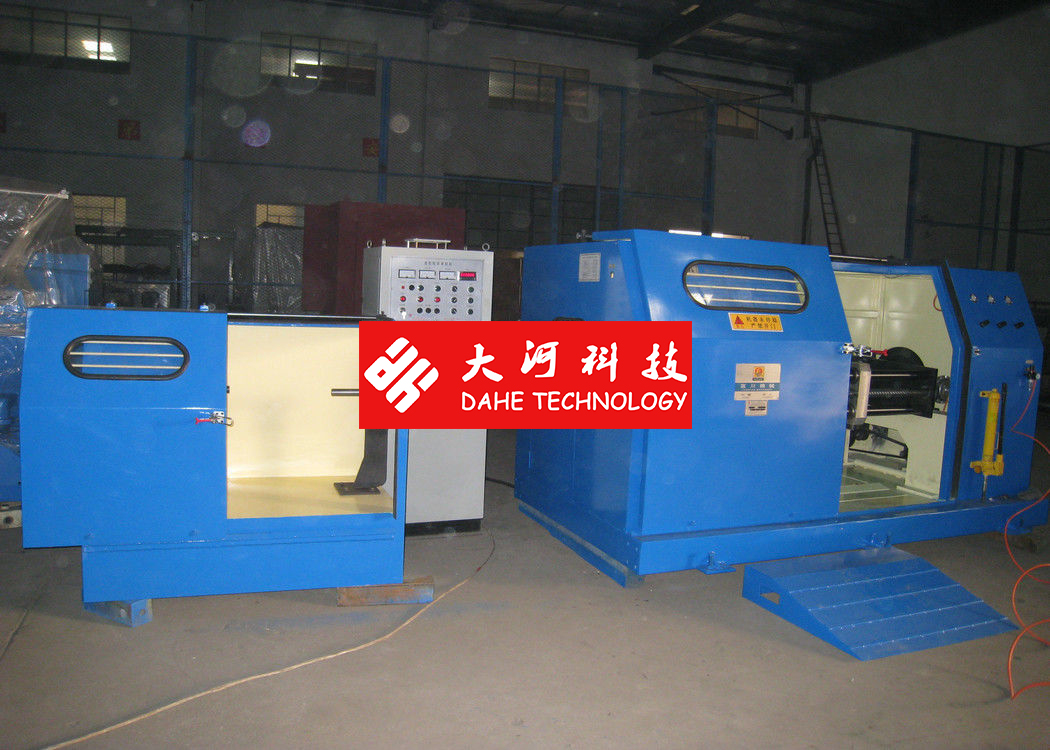

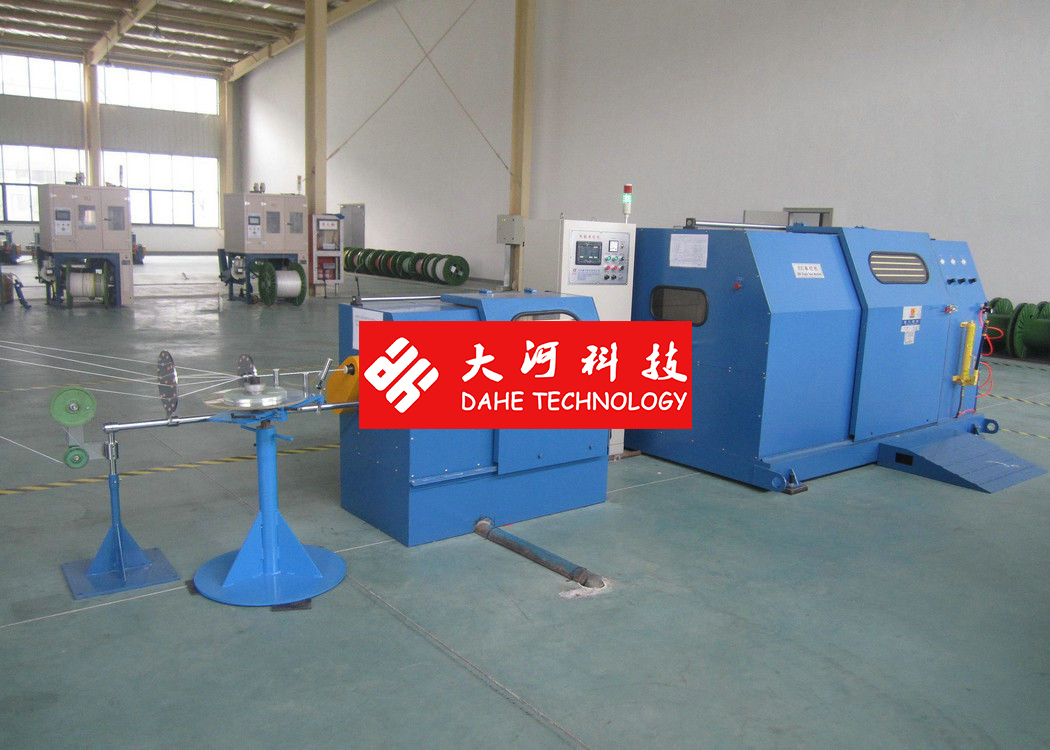

Cable Laying Single Twist Machine Gear Pitch For PE / PVC Core Wire 2
