| Color: | Sky Blue/apple Green | Fit For Bobbin: | Diameter1000mm |
|---|---|---|---|
| Wire: | PE/PVC Core Wire Or Copper Wire | Fit For Wire: | Dia1.0mm-6.0mm |
| Max Speed: | 500rpm | Direction Of Lay: | Righ Or Left |
| Pitch: | 50-300 | Max Twist Diameter: | 25mm |
| Type: | Gear Control Or Computer Control | ||
| High Light: | electric wire manufacturing machine,wire buncher machine | ||
DAHETEC Copper Wire Frame Single Twist Machine with Cable Laying 500Rpm Max Speed
Quick detail :
Series for 1000 gear type single twist (cable laying) machine

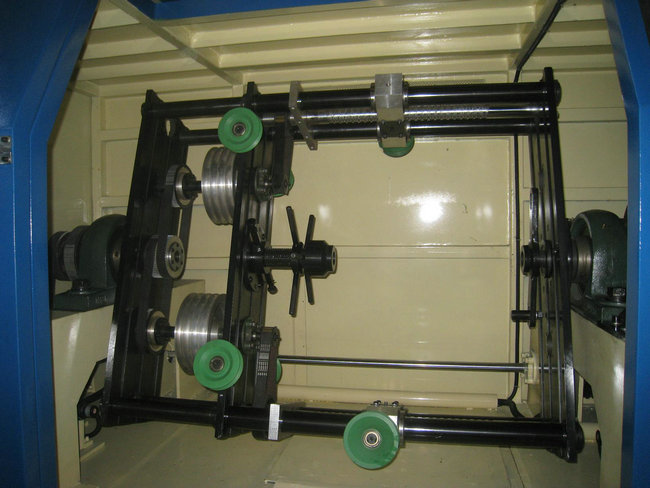

It is mainly used in cable laying of computer wires, such as data cable and control cable. It may synchronize central coil tapping and side coil tapping. The entire machine is consists of pay off rack, central bundler, side pay off rack for the central coil tapping set, single twist(cable-laying)machine and electrical control cabinet.
Specification:
| Equipment models | DHT-1000 |
| Twisting usage | It is applied to the twisting of PVC/PE core wire or copper wire, central bundling or side bundling. |
| Applicable dia(mm) | φ1.0-φ6.0 |
| Max twist outer dia | φ25 |
| Pitch(mm) | 50-300 |
| Direction of lay | Optional for right or left |
| Take-up bobbin size | φ1000 |
| Max rotating speed(rpm) | 500 |
| Traversing method | Traverse is adopt crossbar-less reciprocating |
| Take up tension | Pneumatic tension automatic regulate |
| Brake mode | Disc brake |
| Bundling mode | Central bundling or side bundling |
| Replace pitch mode | gear pitch |
Other information:
active pay off or passive pay off
Terms of payment:
FOB Shanghai / Ningbo
Payment terms:
30% down payment,70% before shipment
Delivery time:
45days after receive the downpayment
Origin:
China
Minimum order:
1set
Package:
With container
