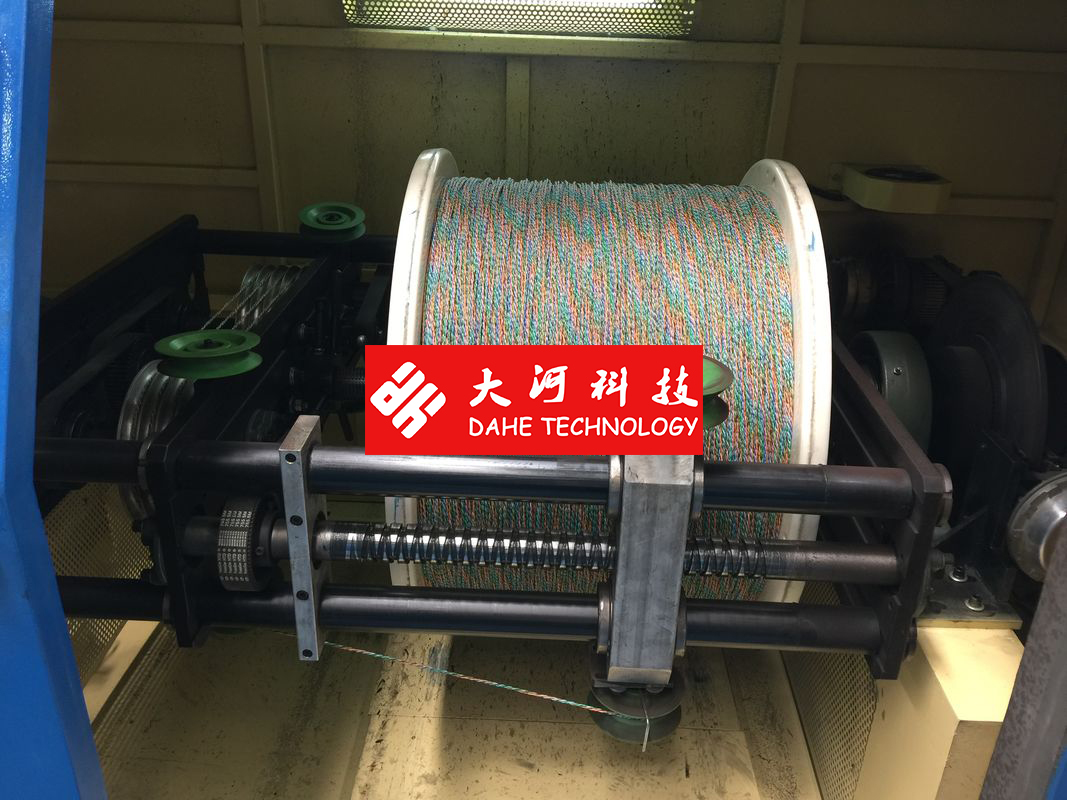

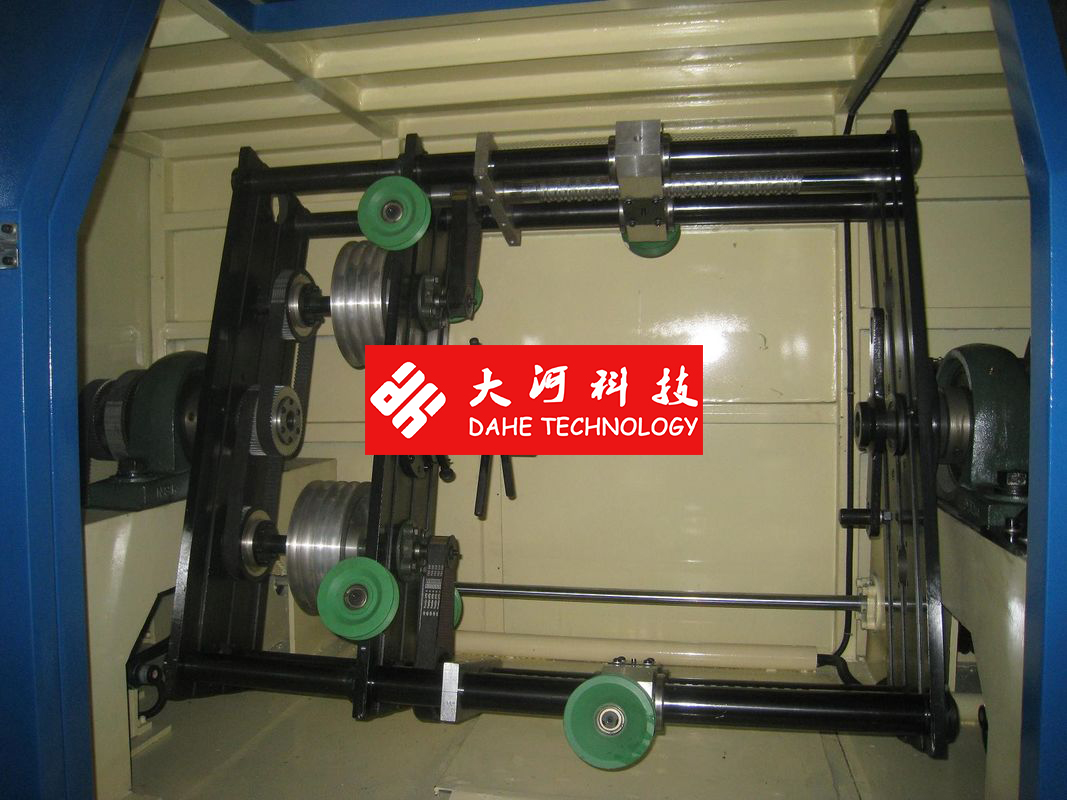

DHT-800 single twisting machine(computer change pitch)

1.Quick detail

Machine usage:It is mainly used in cable laying of computer wires, such as data cable and control cable. It may synchronize central coil tapping and side coil tapping. The entire machine is consists of pay off rack, central bundler, side pay off rack for the central coil tapping set, single twist(cable-laying) machine and electrical control cabinet. Fit for PVC coated centre bundling and twisting, copper wire re-twisting.

2.

      2. Characteristics

2-1single core wire :￠1.0mm-￠3.0mm

2-2 Main machine max rotating speed:500rpm

2-3 Twisting pitch:30-200mm

2-4 Max twisting outside diameter: ￠15mm

2-5 Max hauling speed:500r/min

2-6 Main machine centre height: 800mm

2-7 Total power:11KW

2-8 Max speed of central bundling machine :2600m/min

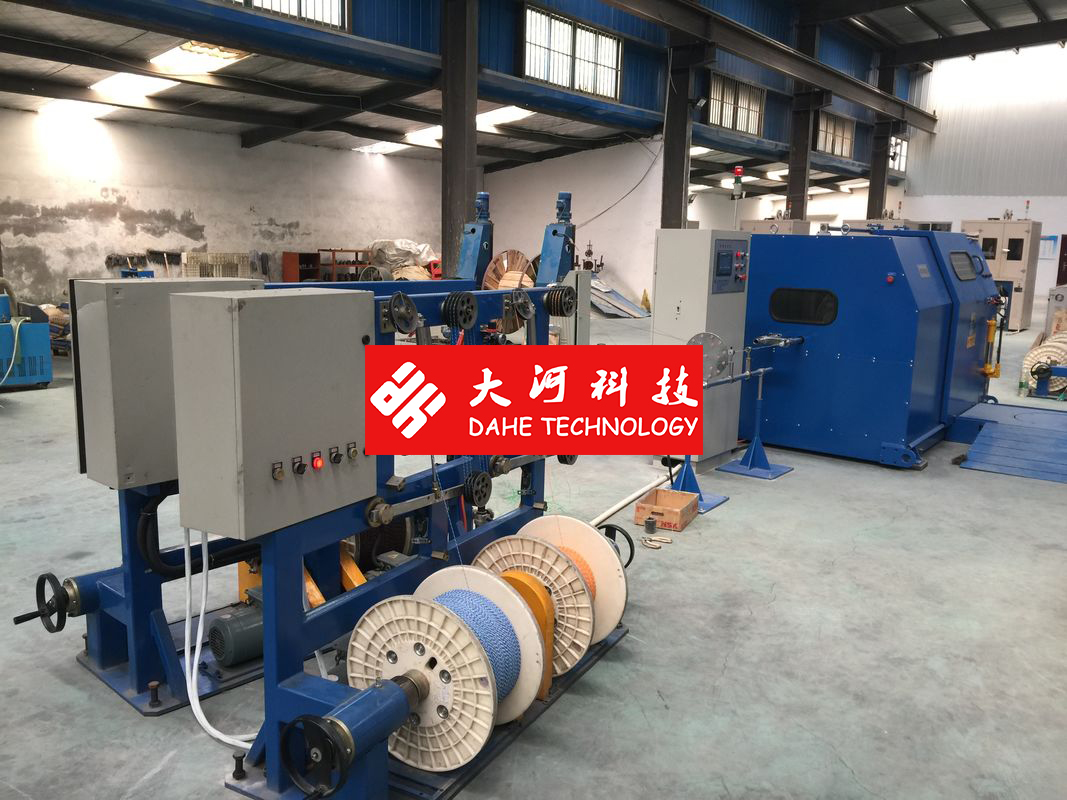

3.Main components:

3.1 DHT-800 main machine 1set

3.2 DHT-800 centre bundling machine 1set

3.3 Wire concentration seat 1set

3.4 Electrical control cabinet 1set

3.5 DHT-630 core wire pay off rack 7heads/set*1set

Payment terms:

30% down payment,70% before shipment

Delivery time:

45days after receive the downpayment

Minimum order:

1set

Package:

With container
