Product Details:
|
| Color: | Sky Blue/apple Green | Fit For Bobbin: | Dia800/1000/1250 |
|---|---|---|---|
| Wire: | PE/PVC Core Wire Or Copper Wire | Fit For Wire: | Dia0.6mm-3.0mm |
| Max Speed: | 500rpm | Direction Of Lay: | Righ Or Left |
| Pitch: | 30-200 | Max Twist Diameter: | 16mm |
| Control Type: | PLC Computer Control | ||
| High Light: | wire buncher machine,electric wire making machine | ||

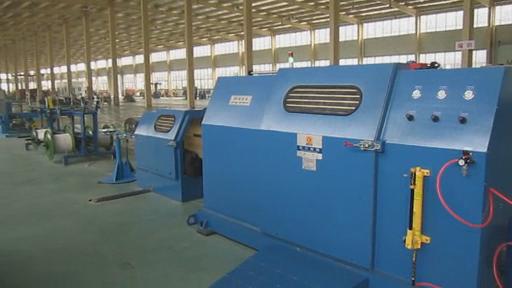

DHT-800single twisting machine(computer change pitch)
1.Quick detail

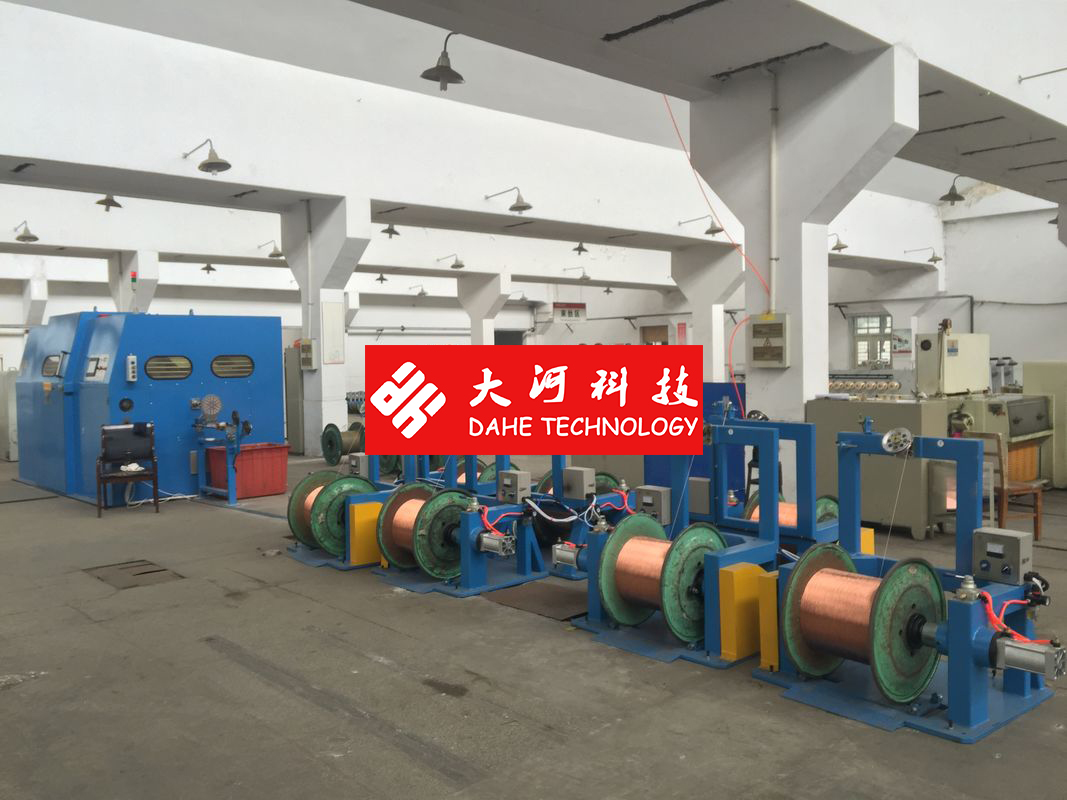

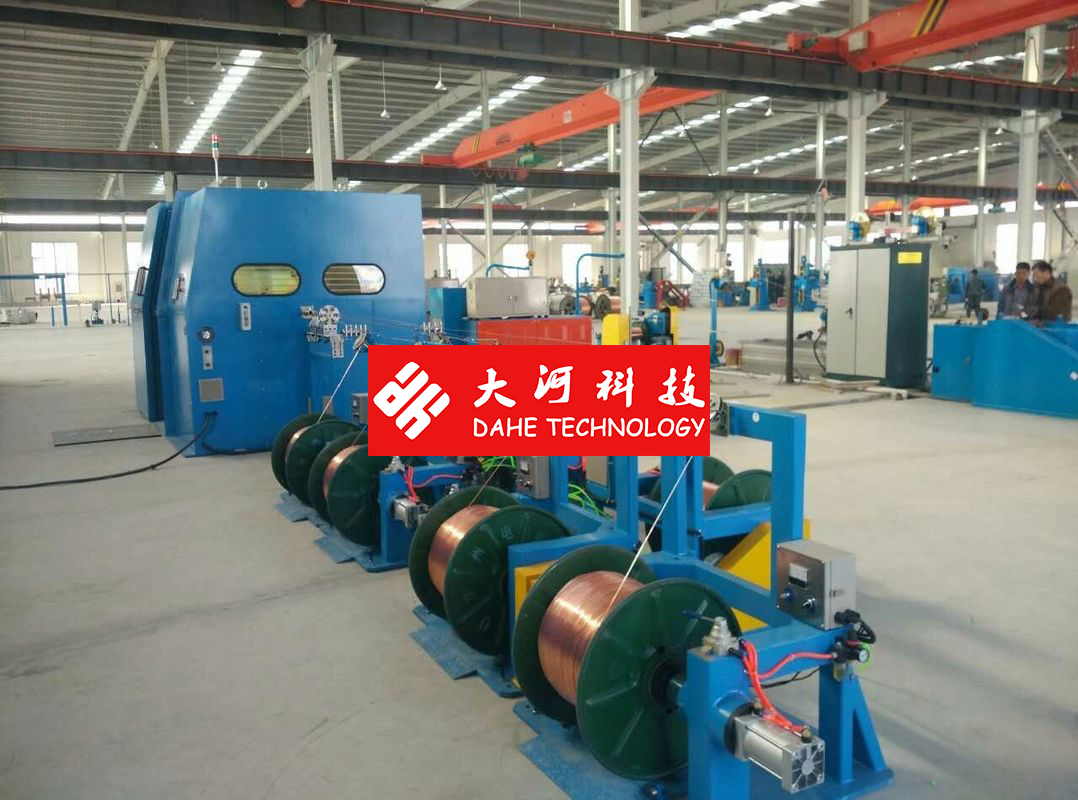

Machine usage:It is mainly used in cable laying of computer wires, such as data cable and control cable. It may synchronize central coil tapping and side coil tapping. The entire machine is consists of pay off rack, central bundler, side pay off rack for the central coil tapping set, single twist(cable-laying) machine and electrical control cabinet. Fit for PVC coated centre bundling and twisting, copper wire re-twisting.
2.
2. Characteristics
2.1 single core wire :￠1.0mm-￠3.0mm
2.2 Main machine max rotating speed:500rpm
2.3 Twisting pitch:30-200mm
2.4 Max twisting outside diameter: ￠15mm
2.5 Max hauling speed:500r/min
2.6 Main machine centre height: 800mm
2.7 Total power:11KW
2.8 Max speed of central bundling machine :2600m/min
3.Main components:
3.1 DHT-800 main machine 1set
3.2 DHT-800 centre bundling machine 1set
3.3 Wire concentration seat 1set
3.4 Electrical control cabinet 1set
3.5 DHT-630 core wire pay off rack 7heads/set*1set
| Equipment models | DHT-630 | DHT-800 | DHT-1000 | DHT-1250 |
| Twisting usage | It is applied to the twisting of PVC/PE core wire or copper wire, central bundling or side bundling. | |||
| Applicable dia(mm) | φ0.60-φ3.0 | φ0.60-φ3.0 | φ1.0-φ6.0 | φ1.0-φ6.0 |
| Max twist outer dia | φ12 | φ16 | φ25 | φ30 |
| Pitch(mm) | 10-150 | 30-200 | 50-300 | 50-400 |
| Direction of lay | Optional for right or left | |||
| Take-up bobbin size | φ630 | φ800
| φ1000
| φ1250
|
| Max rotating speed(rpm) | 600 | 500 | 500 | 400 |
| Traversing method | Traverse is adopt crossbar-less reciprocating | |||
| Take up tension | Pneumatic tension automatic regulate | |||
| Brake mode | Disc brake | |||
| Bundling mode | Central bundling or side bundling | |||
| Replace pitch mode | Computer pitch or gear pitch | |||
