Product Details:
|
| Color: | Sky Blue | Fit For Bobbin: | Diameter 800mm |
|---|---|---|---|
| Fit Copper Wire: | 0.20mm-0.85mm | Fasten Type: | Pneumatic Fasten |
| Control Type: | Synchronize With The Main Machine | Motor Power: | 2.2KW |
| High Light: | double twist buncher,double cable machine | ||

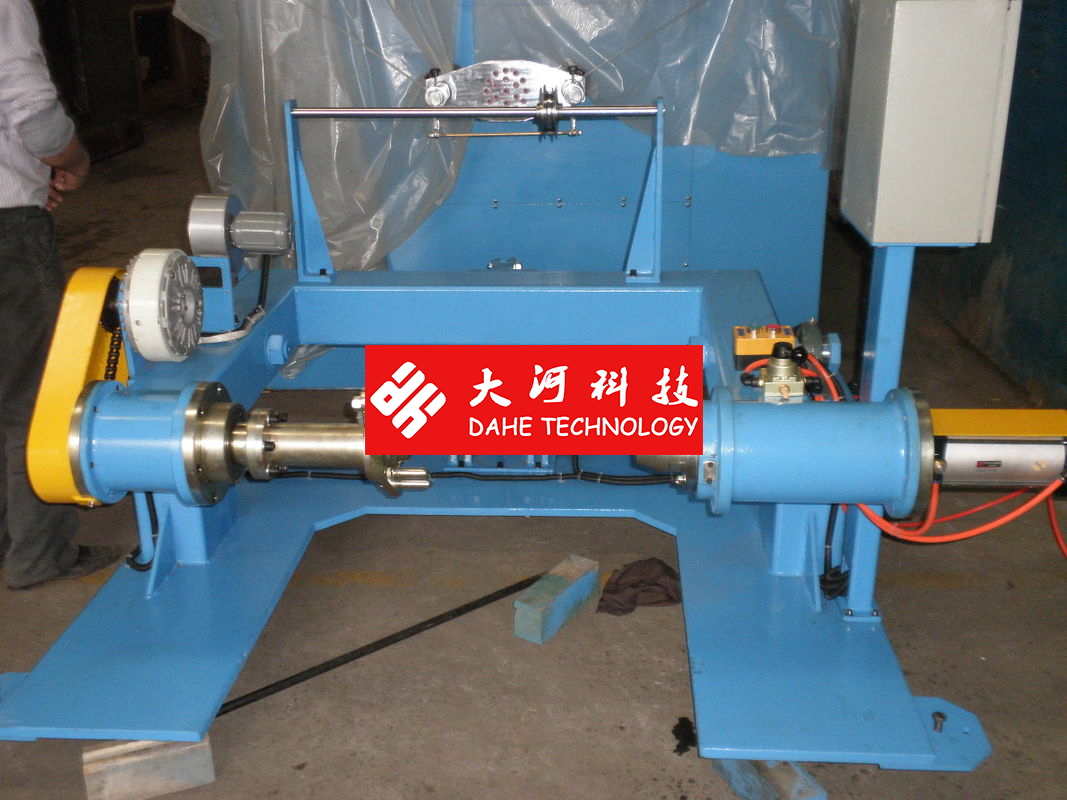

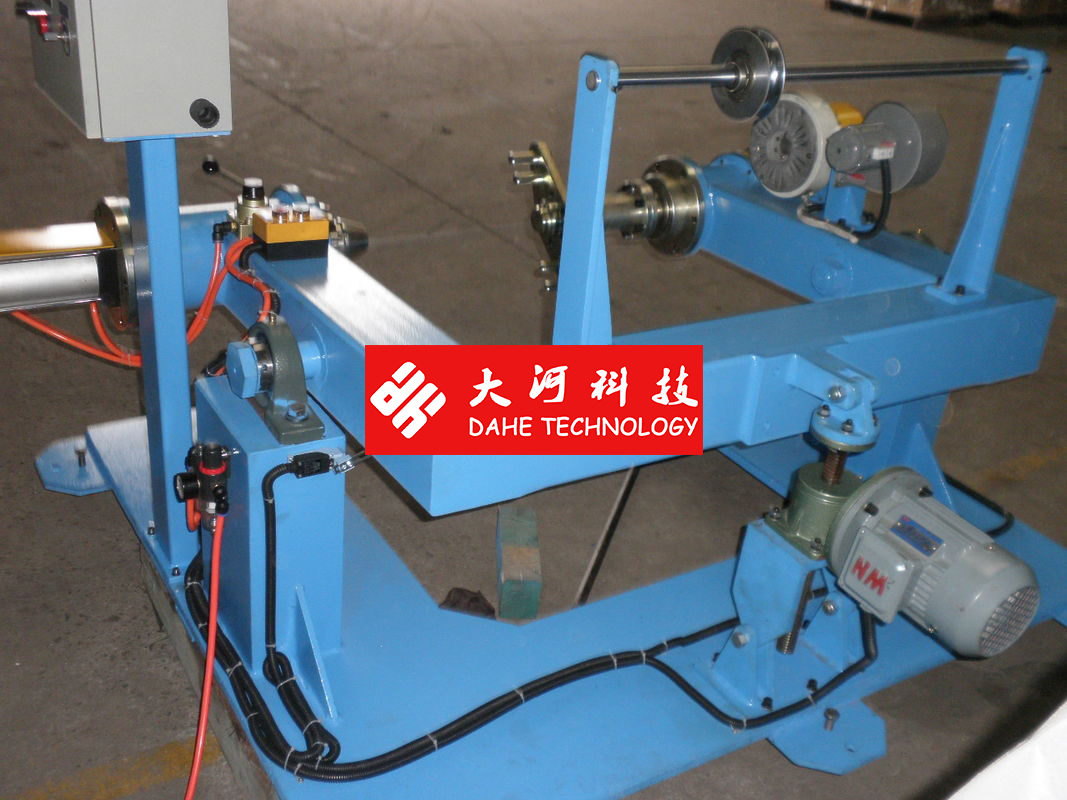

Pneumatic Fasten Wire Twisting Machine Shaftless Bobbins Active Pay Off Machine
Merits: It is constant tension,non-twist wire single bobbin pay off machine.Applied to single wire and multiple drawing wires pay off. Match up with the high speed bunching machine,easy to operate,save more floor area.
Model: DHT-800
Usage: Applied to doubling wire pay off, match up with the high speed bunching machine.
Single wire diameter: dia0.20mm-0.85mm
Pay off bobbin: PND800
Motor power:2.2KW
Tension control: Pneumatic tension
Wire speed: It is feedback the singnal to the inverter to control the rotating speed of motor by displacement sensor.
Control type: Synchronize with the main machine
Protection: Machine is stopped when wire is broken.
Fasten type: Pneumatic fasten
