| Color: | Sky Blue | Fit For Bobbin: | Diameter 630mm |
|---|---|---|---|
| Fit Copper Wire: | 0.15mm-1.04mm | Shaft/bobbin No: | Four |
| Pay Off Type: | Active | ||
| High Light: | double twist buncher,double cable machine | ||

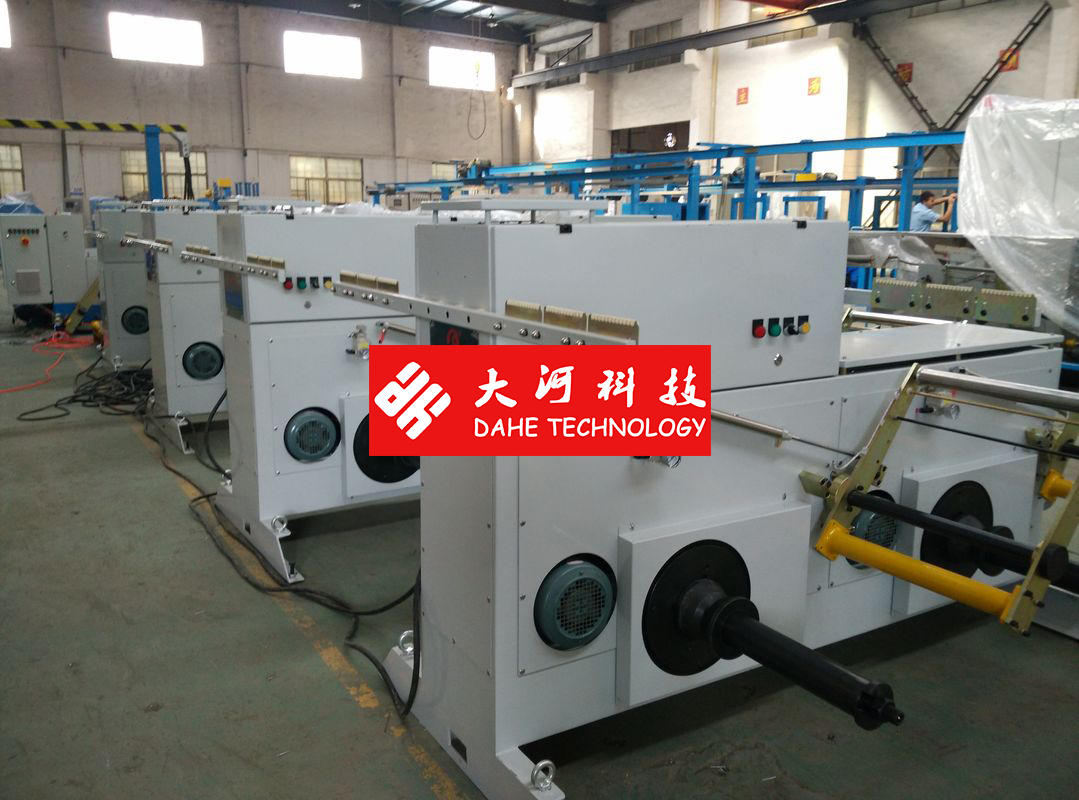

Active Copper Wire Pay Off Machine Four Shafts / Bobbins Diameter 800
Merits: It is constant tension,non-twist wire double bobbins pay off machine.Applied to single wire and multiple drawing wires pay off. Match up with the high speed bunching machine,two bobbin can work separately or synchronously ,easy to operate,save more floor area.
Model: DHT-800
Usage: Applied to doubling wire pay off, match up with the high speed bunching machine.
Single wire diameter: dia0.20-0.85mm
Pay off bobbin: PND800
Motor power:2.2KW*2
Tension control: Pneumatic tension+counterweight regulate
Wire speed: It is feedback the singnal to the inverter to control the rotating speed of motor by displacement sensor.
Control type: Synchronize with the main machine
Protection: Machine is stopped when wire is broken.
Fasten type: Cross-shaft type thread fasten
Load type: Hydraumatic lift
