Equipment models

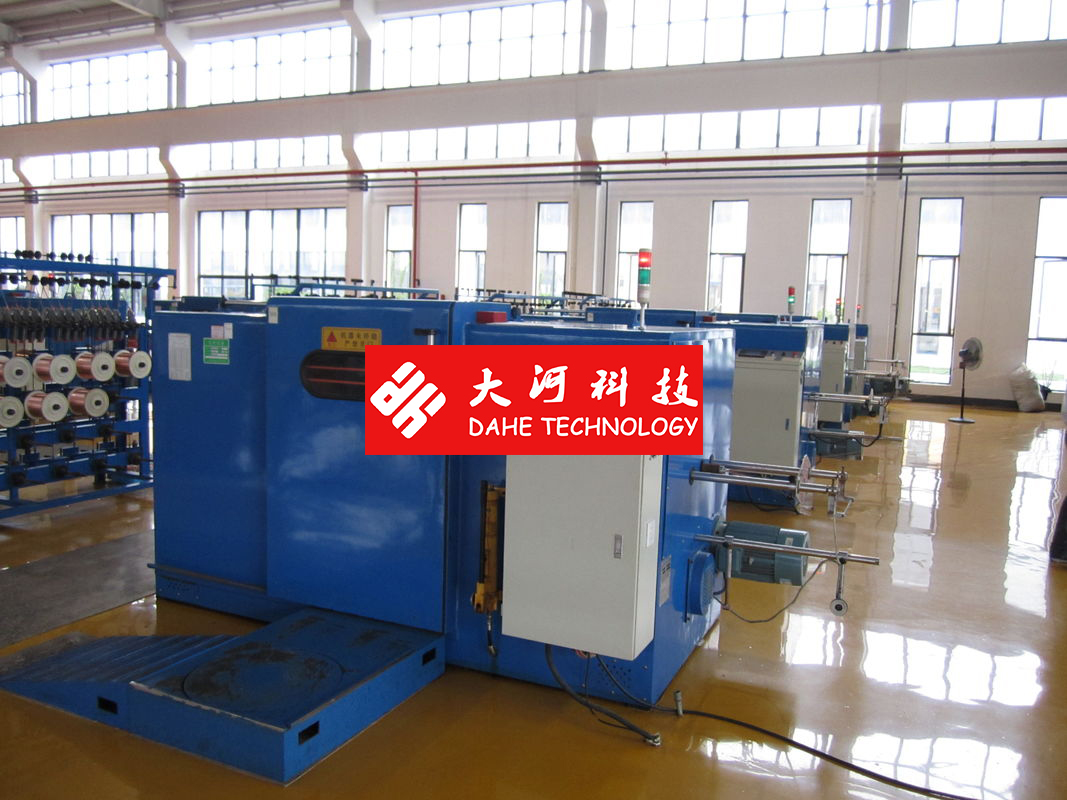

DHT-650B-6

Twisting usage

It is applied to the twisting of aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires),double twisting for core wires.

Single wire dia(mm)

φ0.15-φ1.04mm

Stranding section area (mm²)

0.3-4.0

Core wire single wire dia

φ0.5-φ3.0

Core wire stranding outer dia

φ1.0-φ6.0

Pitch(mm)

11.6-100(34zones)

Direction of lay

Optional for right or left

Outer dia*bore*outer width

φ630*φ56*475

φ630*φ127*475

Max rotating speed

2000(4000twist)

Main motor power

7.5KW

Inverter power

7.5KW

Tension control method

Touch screen +PLC+ magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin

Magnetic powder clutch

5kgf

Protection

Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived.

Brake mode

Electromagnetic brake

Traversing method

Rolling ring drive units, winding pitch and breadth are adjustable
