Dahe DHT-800B Apple Green Double Twist Bunching Machine with Touch Screen Operation

上架时间：2022-03-14

浏览次数：205

产品类型：

产品颜色：

产品价格：￥

Color:	Sky Blue Double Twist Buncher	Take Up Bobbin:	Diameter 800mm
Stranding Section Area:	1-16mm2	Wire:	Bare Copper Wires, Tinned Wires, Silver Jacketed Wires And Enameled Wires),double Twisting For Core Wires
Direction Of Lay:	Free To Left Or Right	Pitch:	23-147mm(20classes)
High Light:	double twist buncher , double cable machine

DAHETEC DHT-800B Apple Green Double Twist Bunching Machine with Touch Screen Operation

Quick Details:

Apply for twisting aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires),double twisting for core wires.

Characteristics:

Japan Technology, product in China

New arrival, mainly apply for stranding the electrical wire and automobile wire and other small section area conductor.

1.High rotation speed, max up to 2600rpm, is the 1.6 times than normal (1600rpm);

2.Use PLC, hysteresis clutch take-up device imported from German, tension sensor ensure the stable tension and high quality stranding wire, especially for high quality tight line.

3.Use carbon fiber bow, strong rigidity, uneasy-transformation, small shock, light weight, reduce air friction for high quality of conductors;

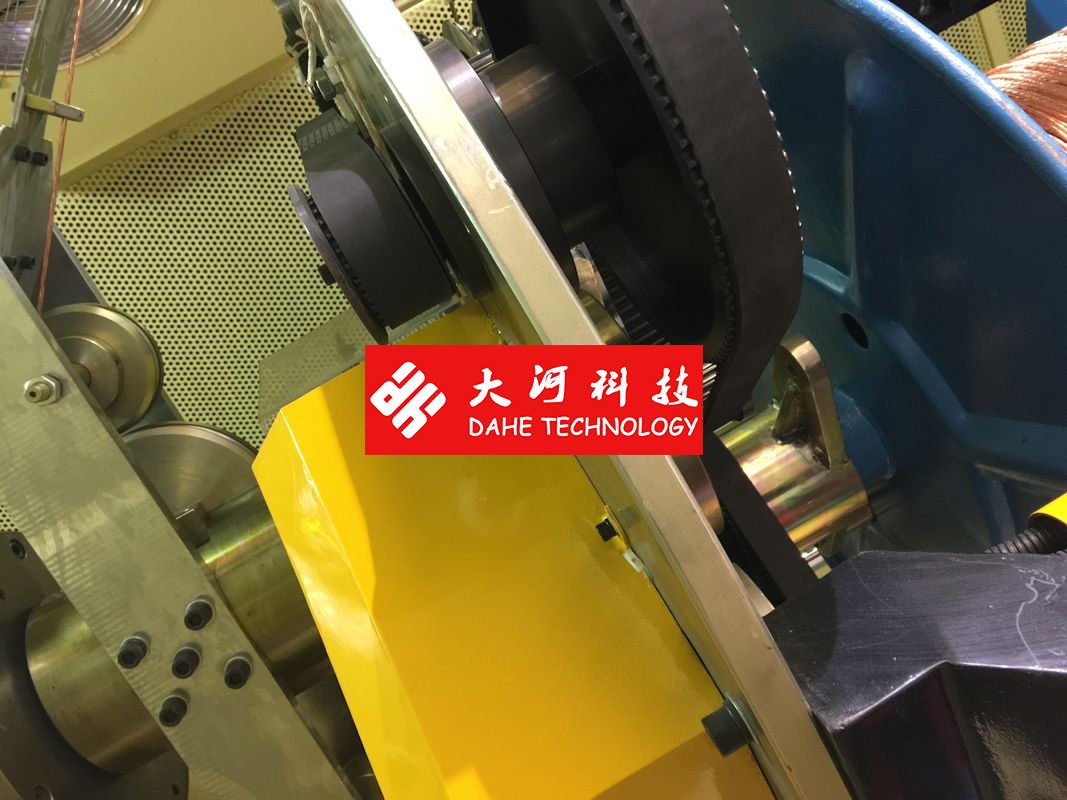

4.Use synchronous belt drive, just to replace the guide wheel to change the lay distance, easy to operate.

5.Use spindle to calculate meters, only 0.01% error for a certain wire&cable.

6.Use PLC automatically lubricate spindle bearing, avoid injecting too much or too little grease. Get rid of unnormal noise and worn, cost down for maintenance.

Specifications:

Equipment models	DHT-500B	DHT-650B		DHT-650C	DHT-800B
Twisting usage	Apply for twisting aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires),double twisting for core wires.
Single wire dia(mm)	0.08-0.45	0.15-1.04		0.12-0.52	0.38-1.70
Stranding section area (mm²)	0.05-2.5	0.35-6.0		0.30-4.0	1.0-16
Core wire single wire dia(mm)	0.5-1.5	0.5-3.0		0.5-2.0	1.0-4.0
Core wire stranding outer dia(mm)	1.0-3.5	1.0-6.0		1.0-4.0	2.0-8.0
Pitch(mm)	6.3-52.3(24classes)	11.6-100(34classes)		11.6-100(34classes)	23-147(20classes)
Direction of lay	Optional for right or left
Outer diaboreouter width	OD500 ID56 H375	OD630 ID56 H475		OD630 ID56 H475 OD630 ID127 H475	OD800 ID80 H600
Max rotating speed	3000rpm(6000twist)	2000rpm(4000twist)		2400rpm(4800twist)	1500rpm(3000twist)
Main motor power	5.5KW	7.5KW		11KW	15KW
Inverter power	5.5KW	7.5KW		11KW	15KW
Tension control method	Touch screen +PLC+ magnetic powder clutch, ensure the constant tension from empty to full bobbin
Magnetic powder clutch	1.2kgf	5kgf		2.5kgf	10kgf
Protection	automatically brake/stop 1)wire inside and outside is broken 2)the preset length is arrived
Brake mode	Electromagnetic brake
Traversing method	Rolling wire with ring drive units, winding pitch and breadth are adjustable
Operation mode	Touch screen operation
Dimension(mm)	2680L 1250W 1500H		3300L 1550W 1800H	3300L 1550w 1800H	4600L 2000W 2000H
