3000 Rpm Double Twist Bunching Machine For Enamelled Wire Tinned Wires

上架时间：2022-03-14

浏览次数：186

产品类型：

产品颜色：

产品价格：￥

Name:	Double Twist Bunching Machine	Wire:	Bare Copper Wire,tinned Wires,silver Jacketed Wire
Also Wire:	Enamelled Wire,double Twist	Motor Power:	5.5kw
Max Speed:	3000rpm	Operation Mode:	Touch Screen Operation
Magnetic Powder Clutch:	1.2kgf	Applied Wire:	Above 7 Pcs Of Wire
Single Core Wire:	0.05mm-2.5mm
High Light:	double twist buncher , steel twisting machine

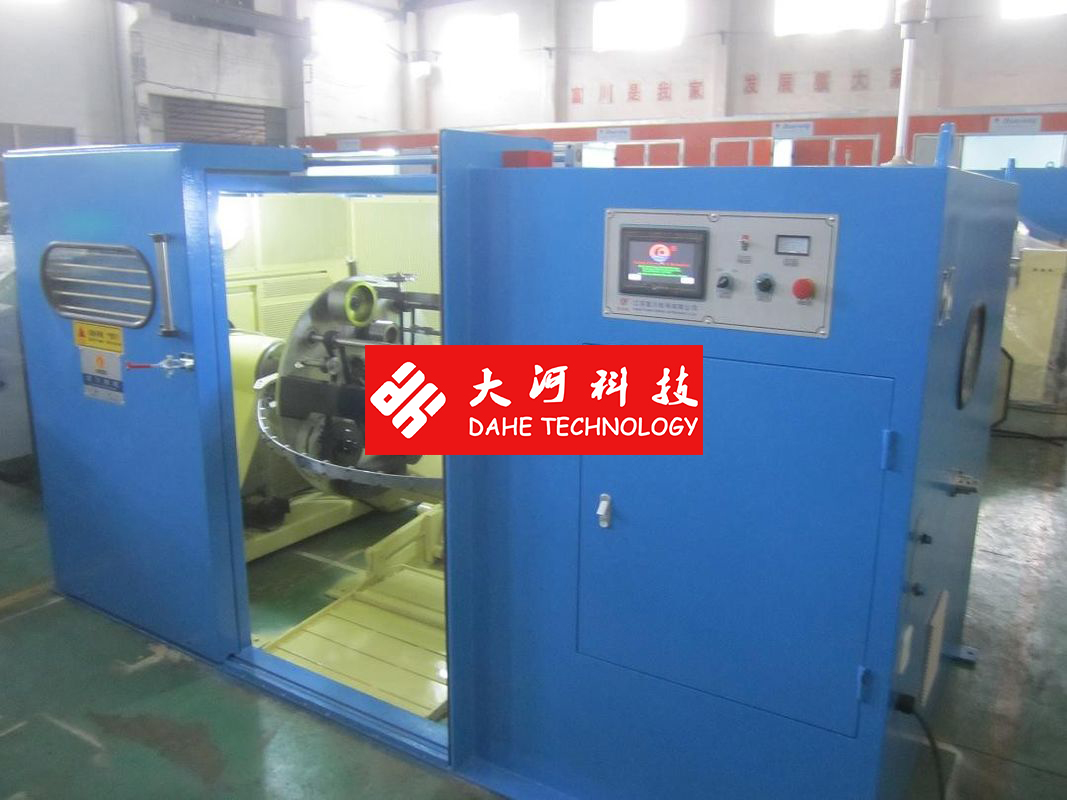

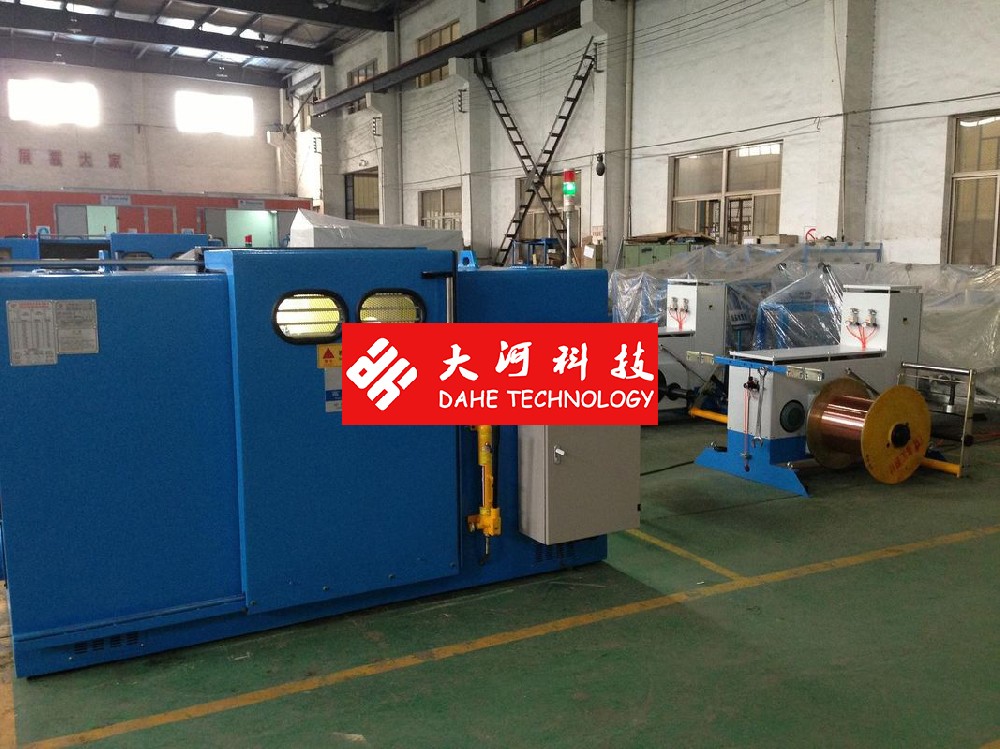

3000 Rpm Double Twist Bunching Machine For Enamelled Wire Tinned Wires

Double Twist Bunching Machine Chracteristics:

Twisting usage: It is applied to the twisting of above 7 pcs of bare copper wires,tinned wires,silver jacketed wires and enamelled wires and double twisting for core wires.

The technology of this machine is brought from Japan and put in production in China

New arrival, mainly apply for stranding the electrical wire and automobile wire and other small section area conductor.

One: Characteristics:

1.High rotation speed, max up to 2600rpm, is the 1.6 times than normal (1600rpm);

2.Use PLC, hysteresis clutch take-up device imported from German, tension sensor ensure the stable tension and high quality stranding wire, especially for high quality tight line.

3.Use carbon fiber bow, strong rigidity, uneasy-transformation, small shock, light weight, reduce air friction for high quality of conductors;

4.Use synchronous belt drive, just to replace the guide wheel to change the lay distance, easy to operate.

5.Use spindle to calculate meters, only 0.01% error for a certain wire&cable.

6.Use PLC automatically lubricate spindle bearing, avoid injecting too much or too little grease. Get rid of unnormal noise and worn, cost down for maintenance.

Double Twist Bunching Machine Features:

Equipment models	DHT-650B	DHT-650C	DHT-800B
Twisting usage	It is applied to the twisting of aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires),double twisting for core wires.
Singlewire dia(mm)	0.15-1.04	0.12-0.52	0.38-1.70
Stranding section area(mm²)	0.35-6.0	0.30-4.0	1.0-16
Core wire single wire dia(mm)	0.5-3.0	0.5-2.0	1.0-4.0
Core wire stranding outer dia(mm)	1.0-6.0	1.0-4.0	2.0-8.0
Pitch(mm)	11.6-100(34classes)	11.6-100(34classes)	23-147(20classes)
Direction of lay	Optional for right or left
Outer diaboreouter width	OD630 ID56 H475	OD630 ID56 H475 OD630 ID127 H475	OD800 ID80 H600
Max rotating speed	2000rpm(4000twist)	2400rpm(4800twist)	1500rpm(3000twist)
Main motor power	7.5KW	11KW	15KW
Inverter power	7.5KW	11KW	15KW
Tension control method	Touch screen +PLC+ magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin
Magnetic powder clutch	5kgf	2.5kgf	10kgf
Protection	Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived.
