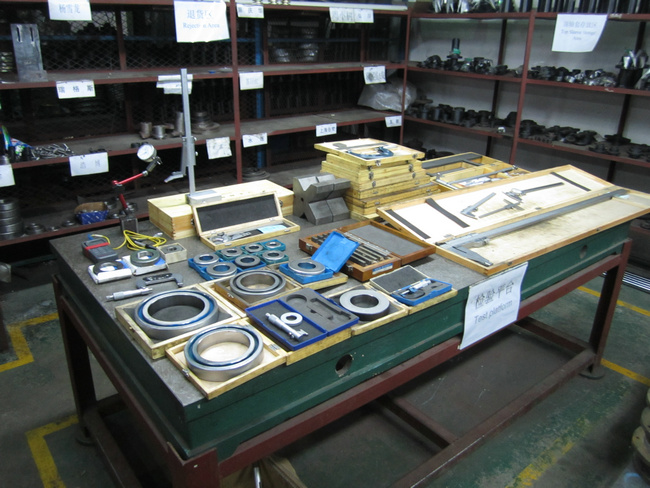

To confrim every part is 100% fit for the machine.We test each parts of the machine. And also import Swiss import testing machine.

Contact Us

Address : NO.5, North Industry Road, Song shan Lake National High-tech Industrial Development Zone, Dong Guan Guangdong,China.

Worktime: 08:00-17:00 (Beijing time)

Mobile / WhatsApp / wechat： +86-13827252427

Email : martin@dahetec.com

View More >>

Extruder Machine,Bunching Machine,Twisting Machine,Annealing Machine-Guangdong Dahe
Extruder Machine,Bunching Machine,Twisting Machine,Annealing Machine-Guangdong Dahe
Extruder Machine,Bunching Machine,Twisting Machine,Annealing Machine-Guangdong Dahe
About

Copper Wire Bunching Machine

Dahe 4000Twist Copper Wire Bunching Machine With Touch Screen Operation

Passive / Active Pay Off Copper Wire Bunching Machine / Equiment 50 Heads / Set

Dahe 0.64mm Copper Wire Bunching Machine With 7.5Kw Take Up Motor Power

Wire Twisting Machine

Dahe DHT-500A Enamalled Wire Twisting Machine Push Button Control

Dahe 7.5Kw Wire Twisting Machine , 2.5Kgf Sky Blue Wire Buncher Machine

Dahe 0.2mm - 1.70mm automatic wire twisting machine With Mechanism Friction Control

LEAVE MESSAGE

Privacy Policy China Good Quality Cable Wire Machine Supplier. © 2016 - 2022 . All Rights Reserved.
Sky Blue Frame Single Twist Machine For 1.0mm - 6.0mm Core Wire-Single Twist Machine-Extruder Machine,Bunching Machine,Twisting Machine,Annealing Machine-Guangdong Dahe-Extruder Machine,Bunching Machine,Twisting Machine,Annealing Machine-Guangdong Dahe

Single Twist Machine

当前位置：首页>Products>Single Twist Machine

Sky Blue Frame Single Twist Machine For 1.0mm - 6.0mm Core Wire

上架时间：2022-03-14
浏览次数：325
产品类型：
产品颜色：
产品价格：￥
马上咨询
产品详情
Color:Sky Blue/apple GreenFit For Bobbin:Diameter 1000mm
Wire:PE/PVC Core Wire Or Copper WireFit For Wire:Dia1.0mm-6.0mm
Max Speed:500rpmDirection Of Lay:Righ Or Left
Pitch:50-300Max Twist Diameter:25mm
Type:Computer

High Light:

electric wire manufacturing machine

,

electric wire making machine


Sky Blue Frame Single Twist Machine For 1.0mm - 6.0mm Core Wire





Quick Details:

It is applied to the twisting of PVC/PE core wire or copper wire, central bundling or side bundling.



Characteristics:

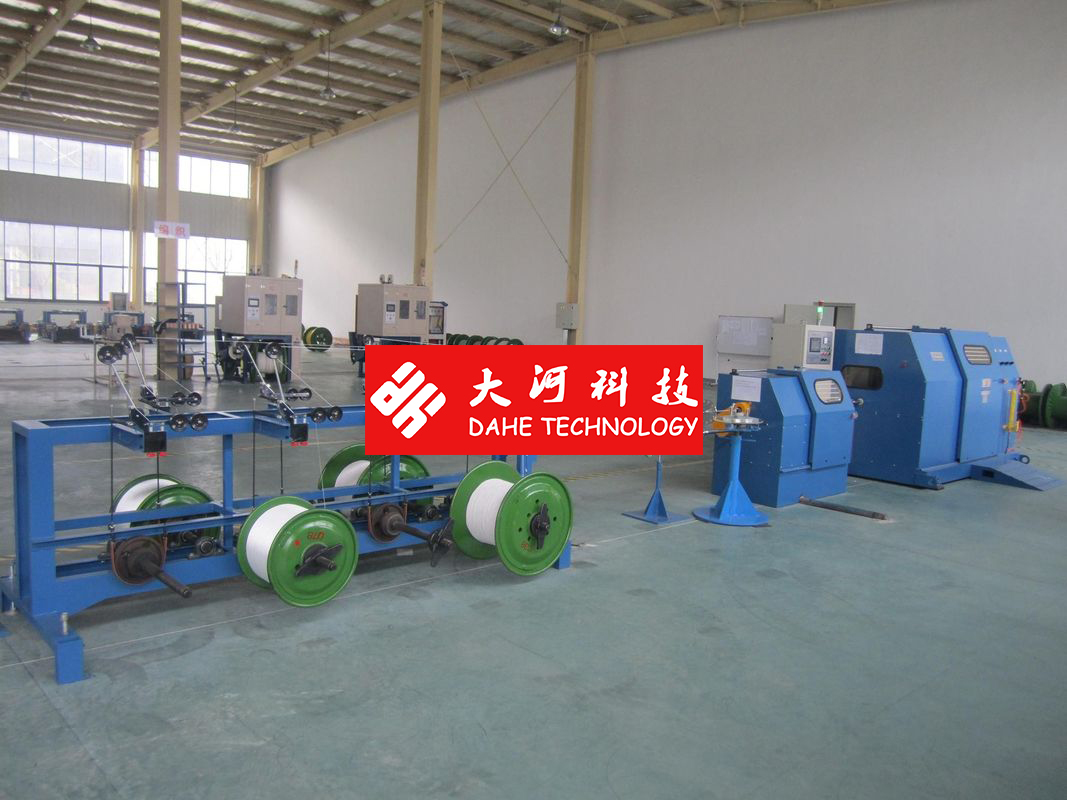

It is mainly used in cable laying of computer wires, such as data cable and control cable. It may synchronize central coil tapping and side coil tapping. The entire machine is consists of pay off rack, central  bundler, side pay off rack for the central coil tapping set, single twist(cable-laying)machine and electrical control cabinet.


Specifications:



modelDHT-400FDHT-500FDHT-630F
UsageIt is applied to high frequency date cable,LAN cable(CAT6cable).No twist after stranding,make the insulated core wire interlace uniformly,avoid the nonuniform twist force,thus make the finished wire with the uniform,precision pitch.
wire dia(mm)Dia0.6-1.0Dia0.8-2.5Dia1.0-3.0mm
direction of layFree to right or left
pay off bobbin sizeΦ400*φ56*300Φ500*φ56*300Φ630*φ56*475
pay off motor power3.7KW5.5KW7.5KW
back-twist ratio0-50%adjustable
brake modeelectromagnetic brake
operation modetouch screen operation



Other Information


FOB SHENZHEN

Payment

TT, L/C

Delivery

FOB SHENZHEN

Origin

China

Minimum Order

1 set

Package

with container
Sky Blue Frame Single Twist Machine For 1.0mm - 6.0mm Core Wire 0Sky Blue Frame Single Twist Machine For 1.0mm - 6.0mm Core Wire 2
