Product Details:
Payment & Shipping Terms:
|
| Color: | Sky Blue | Fit For Bobbin: | Diameter 500/630/800/1000mm |
|---|---|---|---|
| For Wire: | Bare Copper Wire/silver Jacketed Wire/enamelled Wire | Wire Dia: | 0.08-0.45mm |
| Wire: | Core Wire Double Twist | Magnetic Powder Clutch: | 1.2kgf |
| High Light: | double twist buncher,steel twisting machine | ||
Equipment models | DHT-500B |
Twisting usage | It is applied to the twisting of aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires),double twisting for core wires. |
Single wire dia(mm) | φ0.08-φ0.45 |
Stranding section area (mm²) | 0.05-2.5 |
Core wire single wire dia | φ0.5-φ1.5 |
Core wire stranding outer dia | φ1.0-φ3.5 |
Pitch(mm) | 6.3-52.3(24zones) |
Direction of lay | Optional for right or left |
Outer dia*bore*outer width | φ500*φ56*375 |
Max rotating speed | 3000(6000twist) |
Main motor power | 5.5KW |
Inverter power | 5.5KW |
Tension control method | Touch screen +PLC+ magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin |
Magnetic powder clutch | 1.2kgf |
Protection | Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived. |
Brake mode | Electromagnetic brake |
Traversing method | Rolling ring drive units, winding pitch and breadth are adjustable |

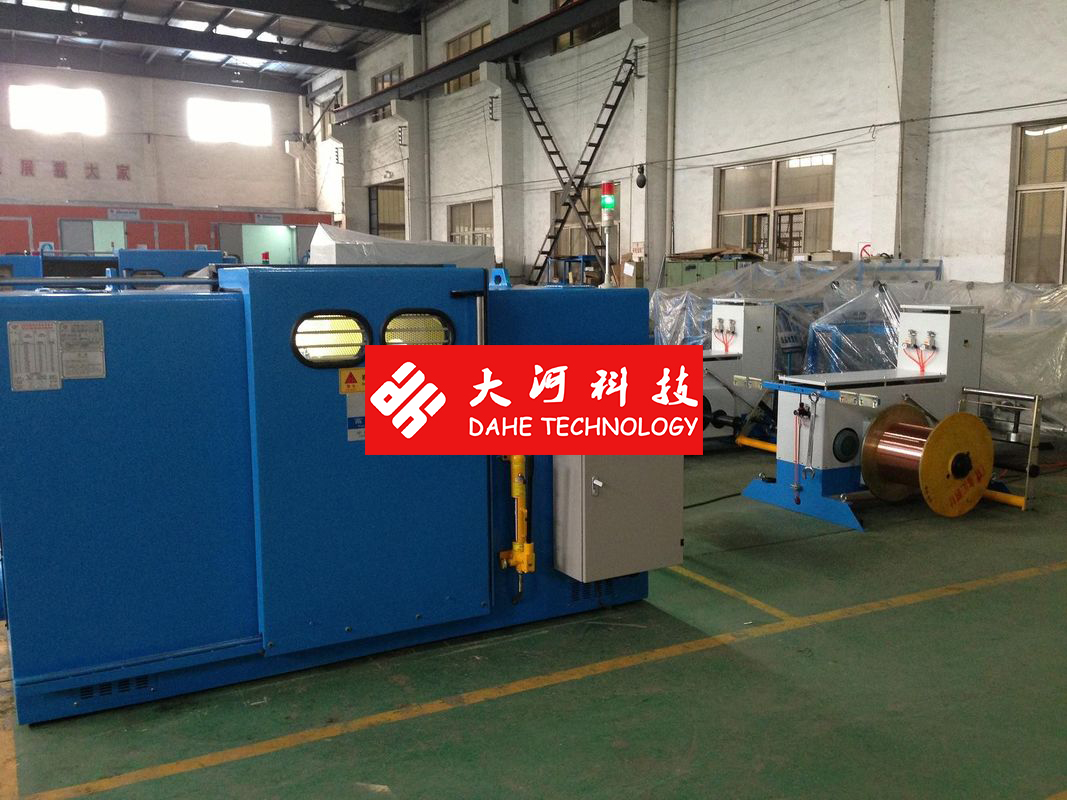

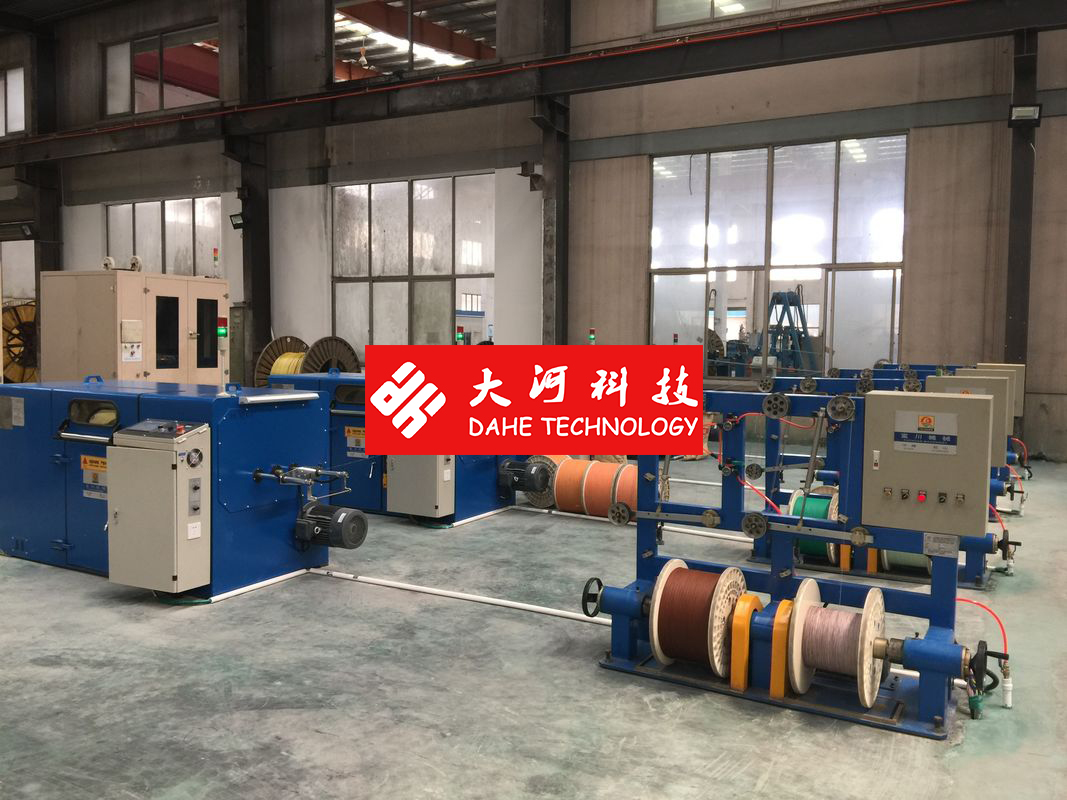

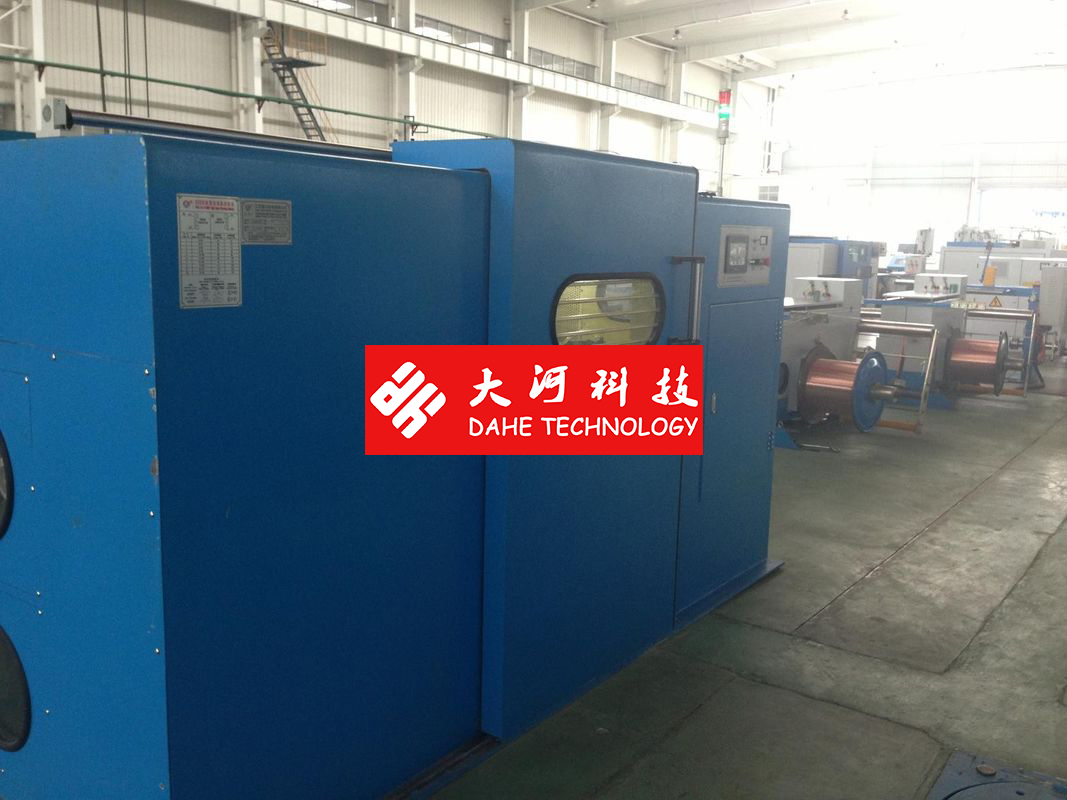

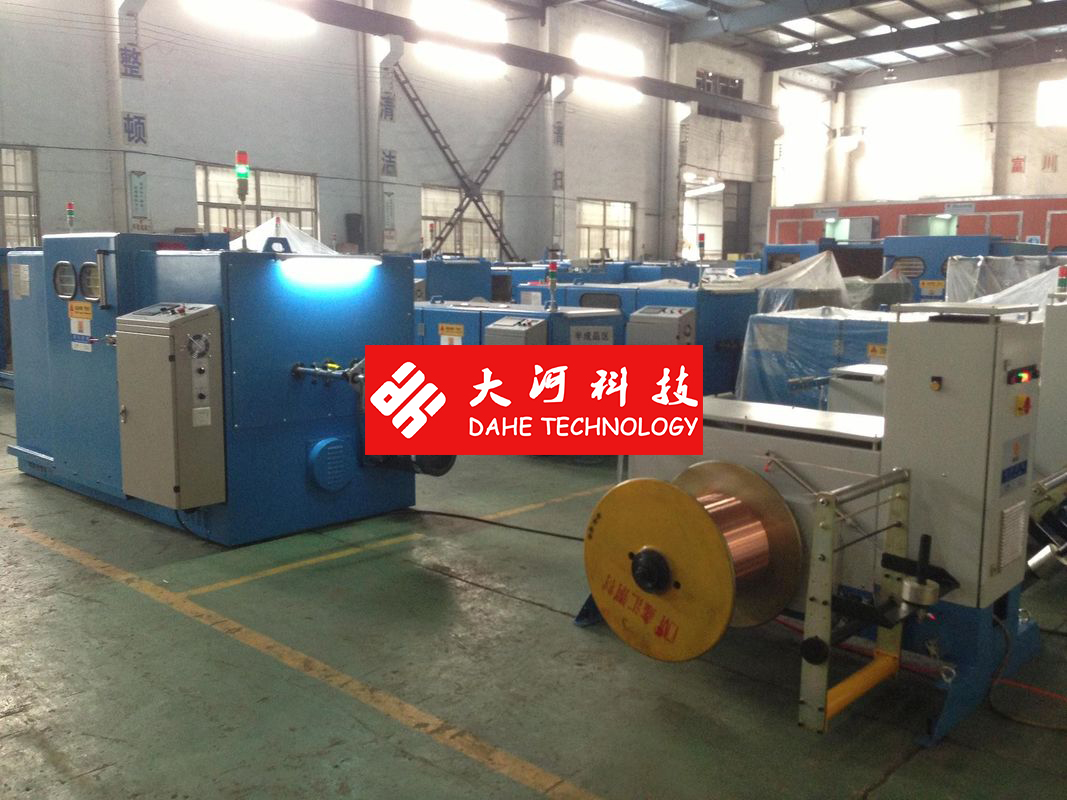

Bare Copper Double Twist Bunching Machine 1.2Kgf Magnetic Powder Clutch
Series for Model B normal wire high speed bunching machine and double twist bunching machine
The technology of this machine is brought from Japan and put in production in China
Merits: With high rotation speed, with constant tension from empty bobbin to full bobbin, with superior quality for twist wire, The machine is driven by synchronization strap. Only need to change the capstan wheel to change the pitch. Easy to operate.
