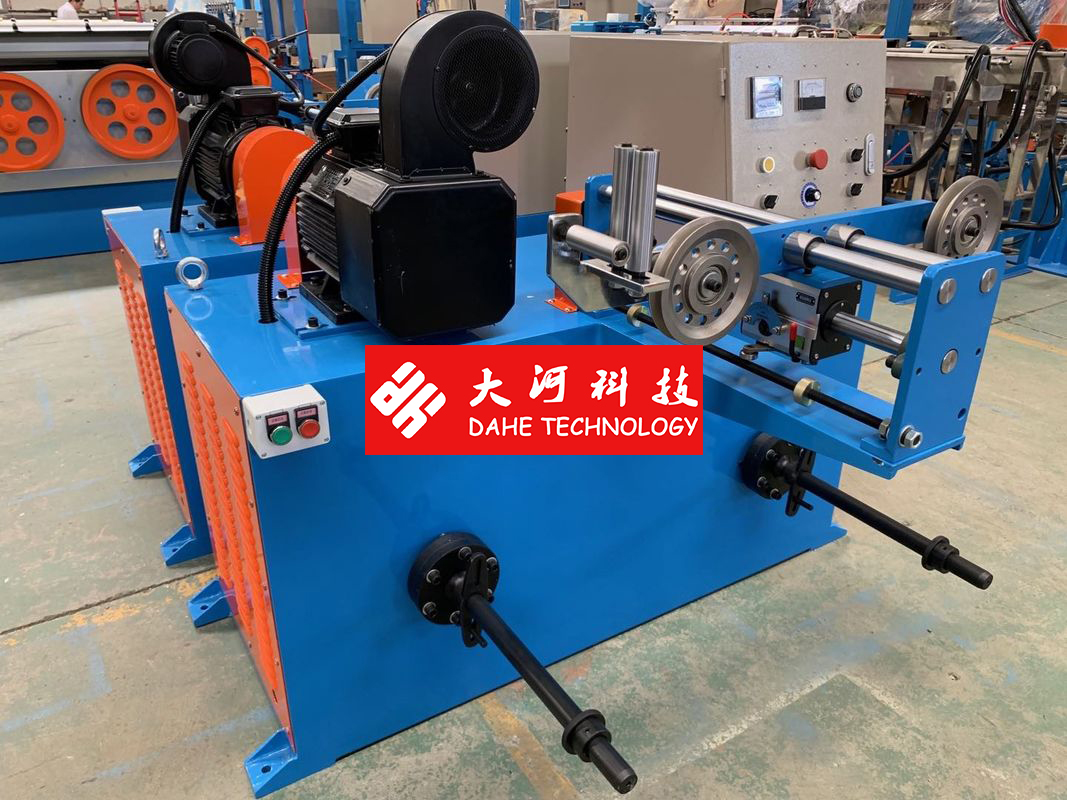

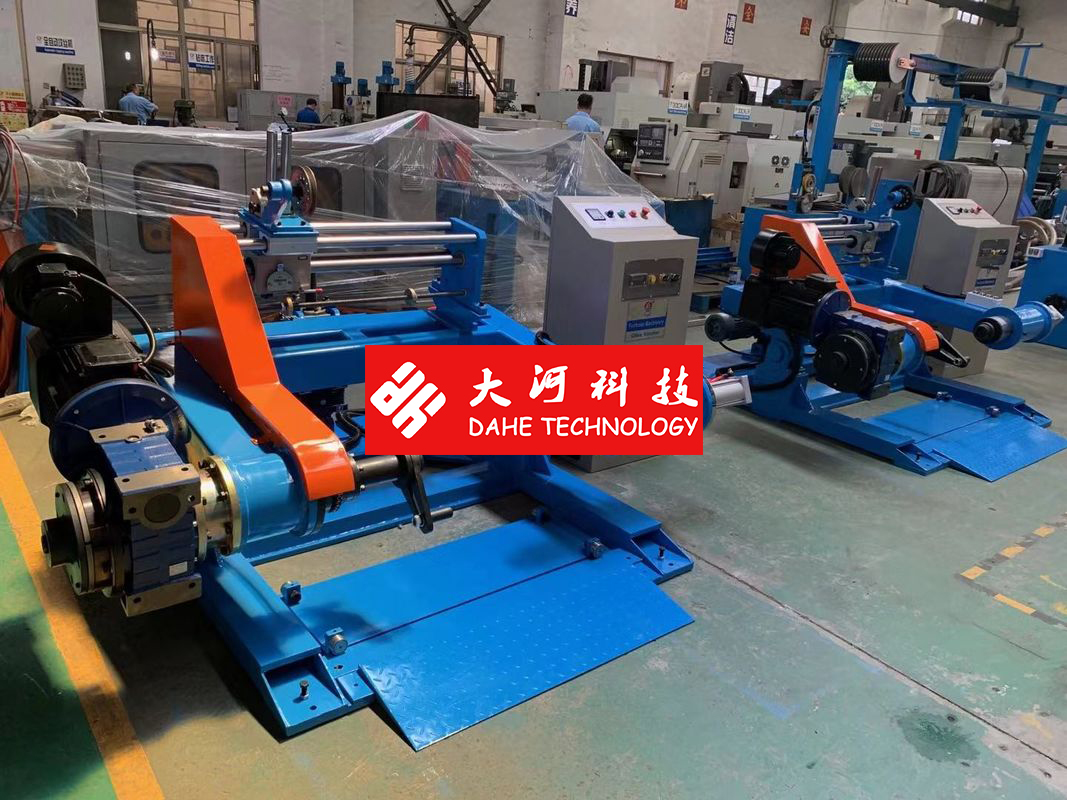

Merits: It is constant tension,non-twist wire single bobbin pay off machine.Applied to single wire and multiple drawing wires pay off. Match up with the high speed bunching machine,easy to operate,save more floor area.

1. Model: DHT-630

2. Usage: Applied to doubling wire pay off, match up with the high speed bunching machine.

3. Single wire diameter: dia0.08-0.64mm

4. Pay off bobbin: PND630

5. Motor power:1.5KW*2

6. Tension control: Pneumatic tension+counterweight regulate

7. Wire speed: It is feedback the singnal to the inverter to control the rotating speed of motor by displacement sensor.

8. Control type: Synchronize with the main machine

9. Protection: Machine is stopped when wire is broken.

10. Fasten type: Cross-shaft type thread fasten

11. Load type: Hydraumatic lift
