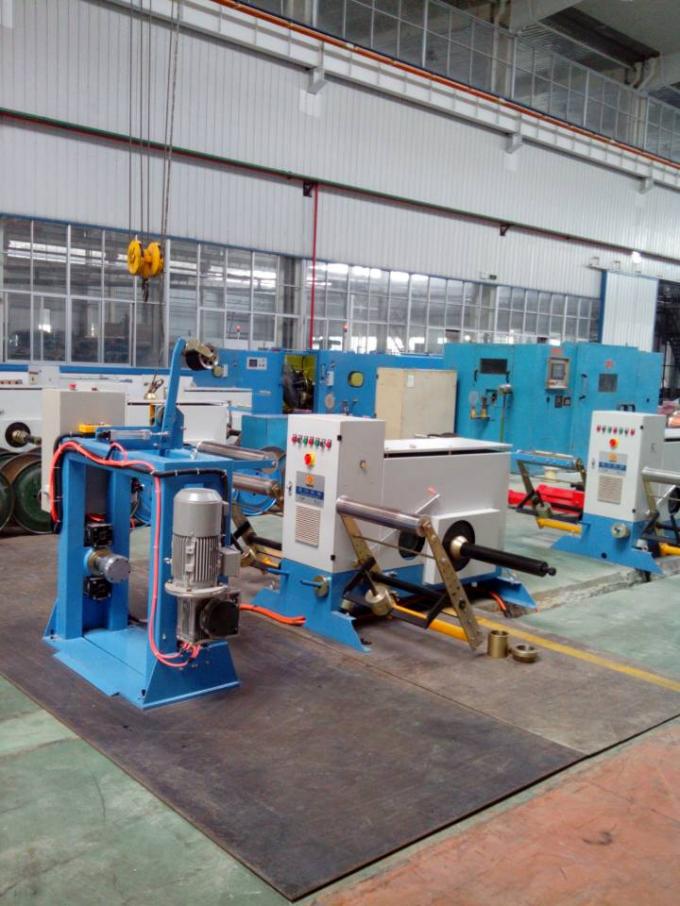

Doubling Wire Twisting Machine , Active Copper Wire Bunching Machine

Series for multiple drawing bobbins active pay-off machine

Merits: It is constant tension,non-twist wire single bobbin pay off machine.Applied to single wire and

Multiple drawing wires pay off.Match up with the high speed bunching machine,easy to operate,save

more floor area.

Model no : DHT-630

1. Usage: Applied to doubing wire pay off,match up with the high speed bunching machine.

2. Single wire dia: 0.08mm-0.64mm

3. Bobbin size: PND630.

4. Motor power:1.5KW

5. Tension control: Pneumatic tension

6. Wire speed: It is feedback the singnal to the inverter to control the rotating speed of motor

    by displacement sensor.

7. Control type: Synchronize with the main machine

8. Protection: Machine is stopped when wire is broken.

9. Fasten type: Pneumatic fasten.
