| Color: | Sky Blue | Fit For Bobbin: | Diameter 630mm |
|---|---|---|---|
| Fit Copper Wire: | 0.12mm-0.52mm | Wire: | Core Wire,bare Copper Wire,tinned Wires,silver Jacketed Wires |
| Twist Outer Diameter: | 3-12mm | Rotating Speed: | 650rpm Wire Processing Equipment |
| High Light: | double cable machine,steel twisting machine | ||
Sky Blue Double Twist Bunching Machine 650Rpm Rotating Speed
DHT-630E torsion free / no twist cabling machine
This machine is the latest developed products.It is applied for high frequency data cable no torsion twist,fit for 2-7pcs of core wire cabling or 2-4pcs core wire cabling and with filling material,and achieve the bundling function(when wrapping tape is break the machine will stop automatically). Machine is magnetic stable tension pay off,this cabling type,make the insulated core wire interlace uniformly,avoid the non-uniform twist force,thus make the finished wire with the uniform,precision pitch.It is highly improved the quality and stablility of the core wires.
Components:
1. Mainly fit for 2-3 pcs core wire twist+bundling
2. Fit for wire : dia 1.5mm-5.0mm
3. Twist outer diameter: 3-12mm
4. Rotating speed: 650rpm

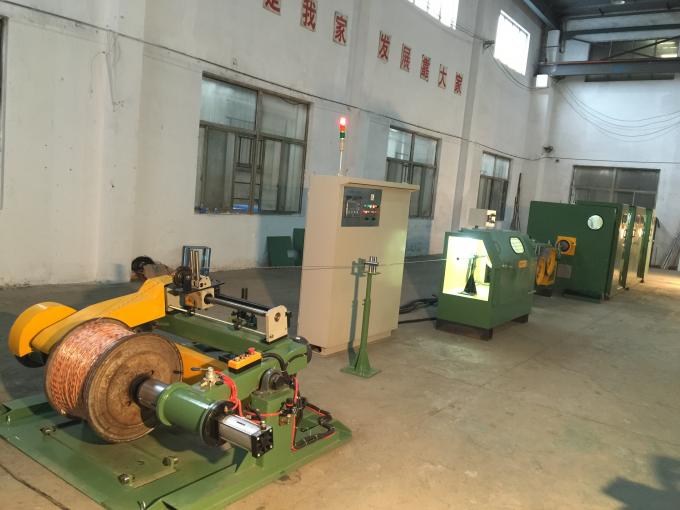

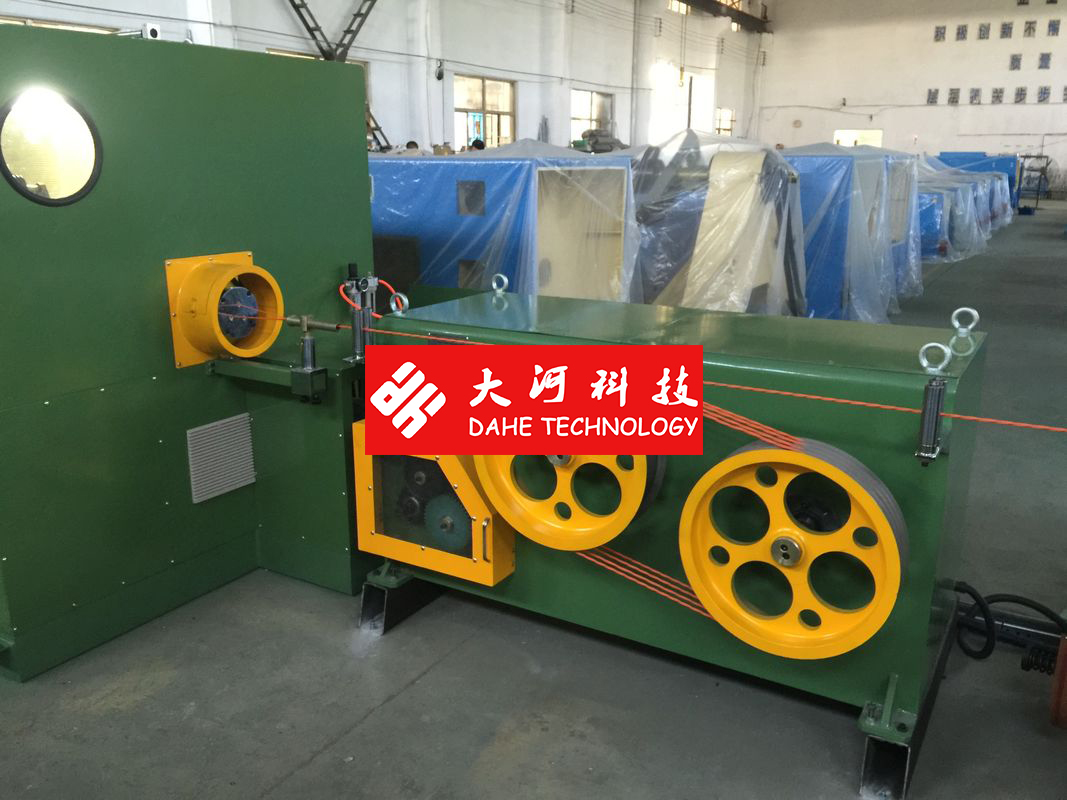

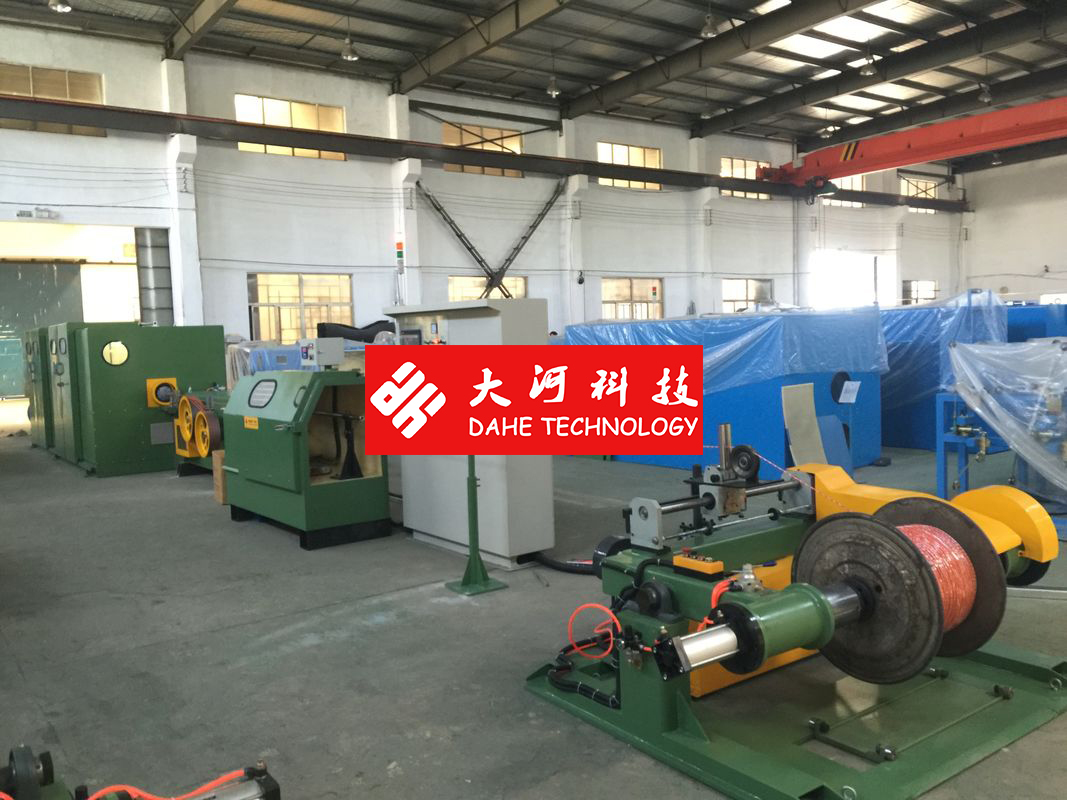

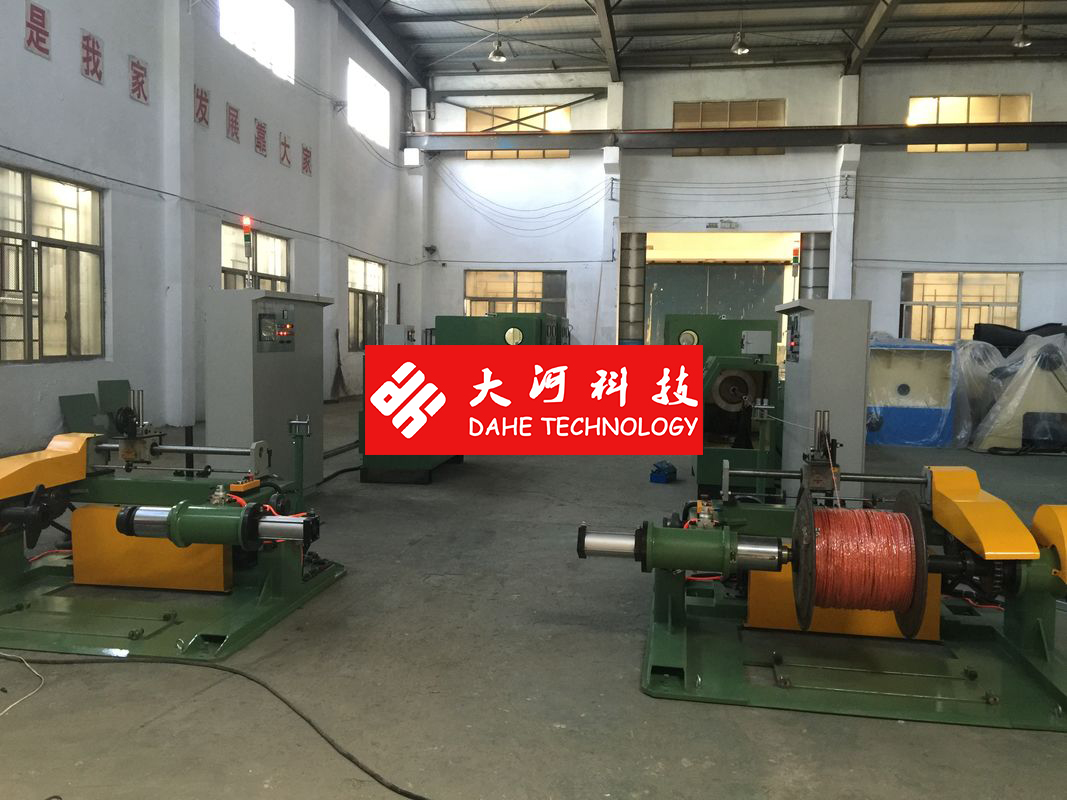

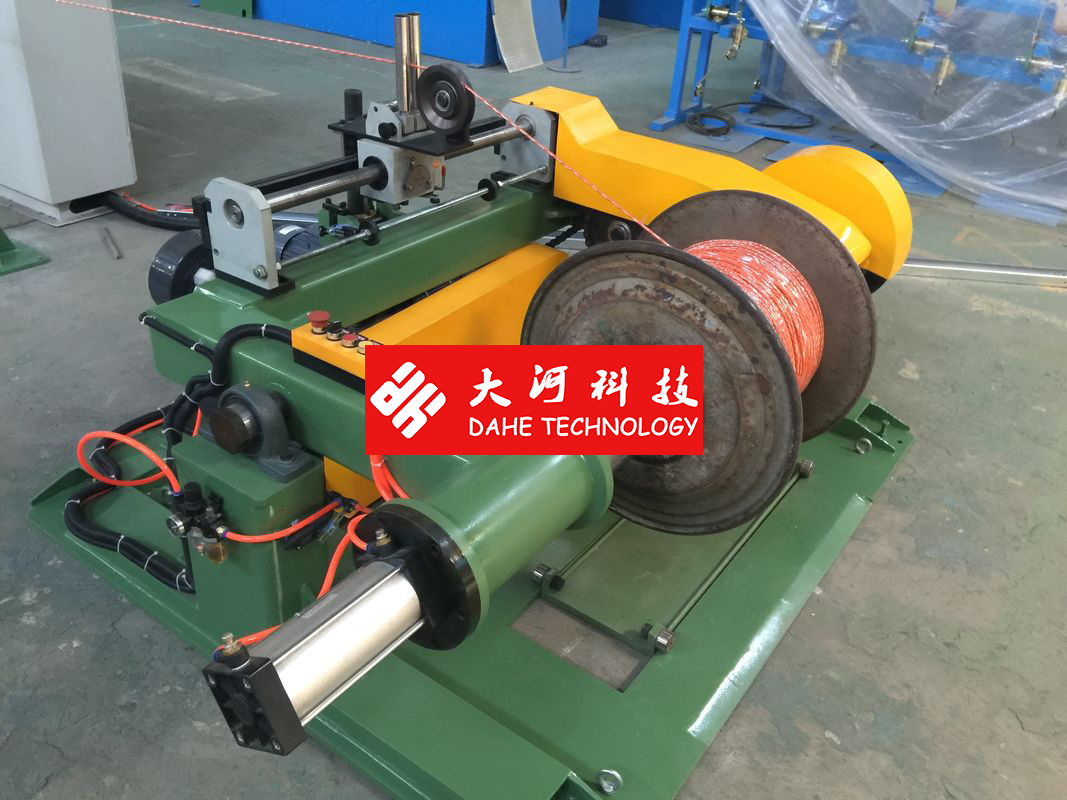

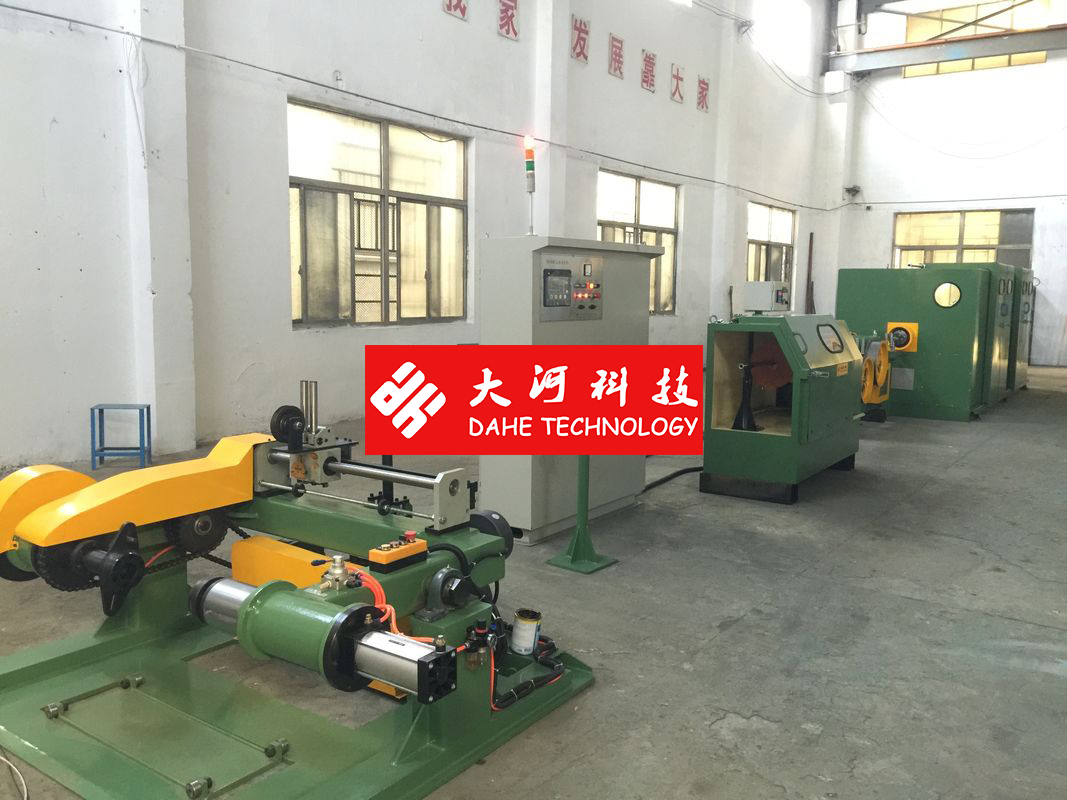

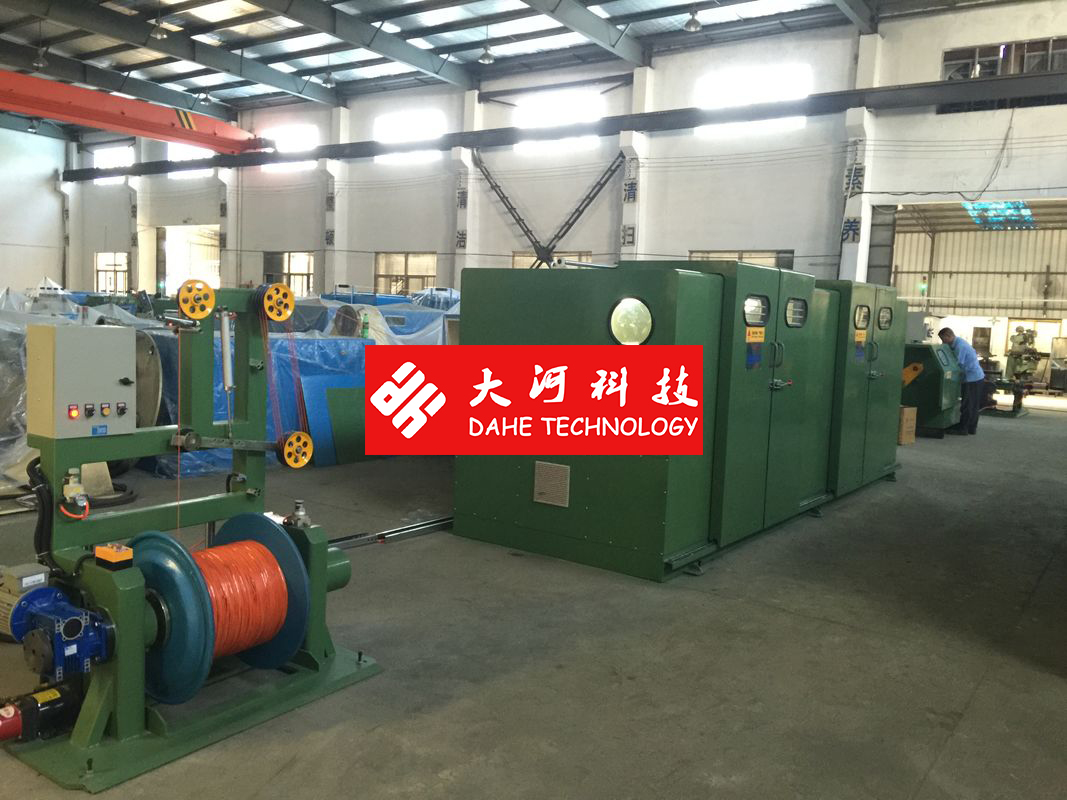

5. 630magnetic tension pay off + 630 bow twisting machine+centre wrapping machine+510 double wheel hauling machine+ 630-1000take up machine
6. Direction of lay: optional for right or left
7. Max rotating speed: 1000rpm
