Product Details:
Payment & Shipping Terms:
|
| Motor Power: | 22kw | Color: | Sky Blue |
|---|---|---|---|
| Magnetic Powder Clutch: | 30kgf | Brake Mode: | Electromagnetic Brake |
| Operation Mode: | Touch Screen | Fit For Bobbin: | DIAMETER 1250mm |
| Single Wire Dia: | 0.5mm TO 2.52mm | Fitable Wire: | Core Wire/bare Copper Wire,tinned Wire,silver Jacketed Wires |
| High Light: | double twist buncher,steel twisting machine | ||

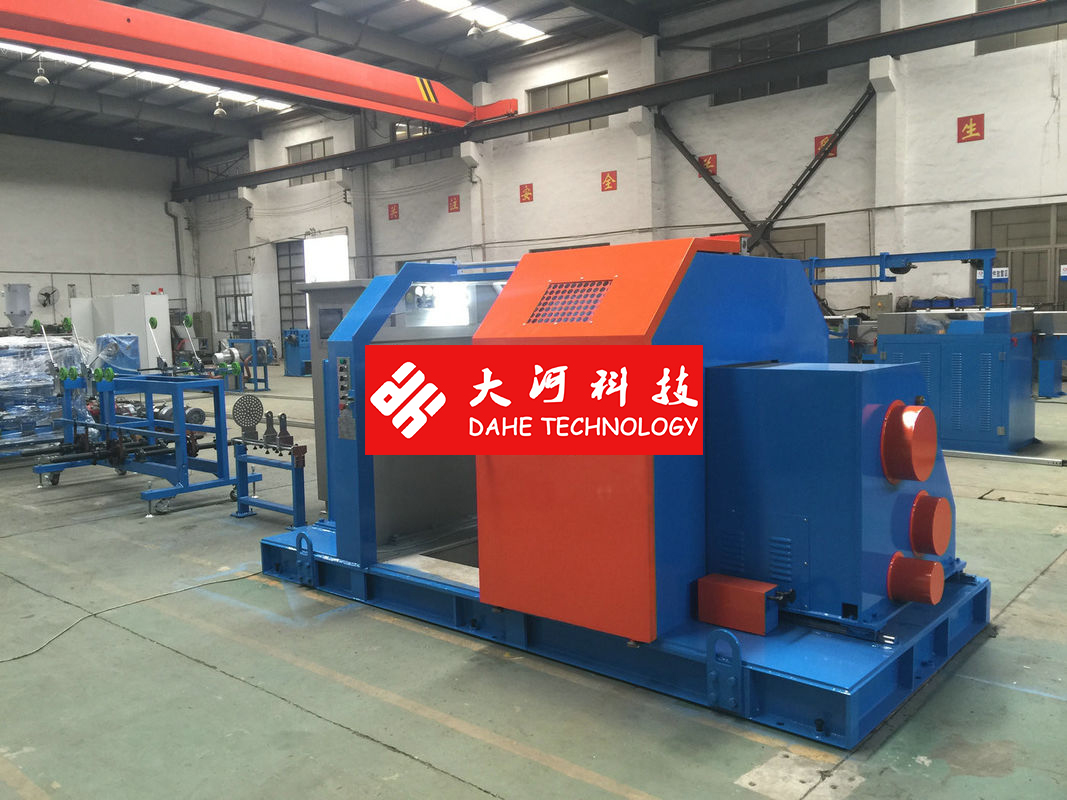

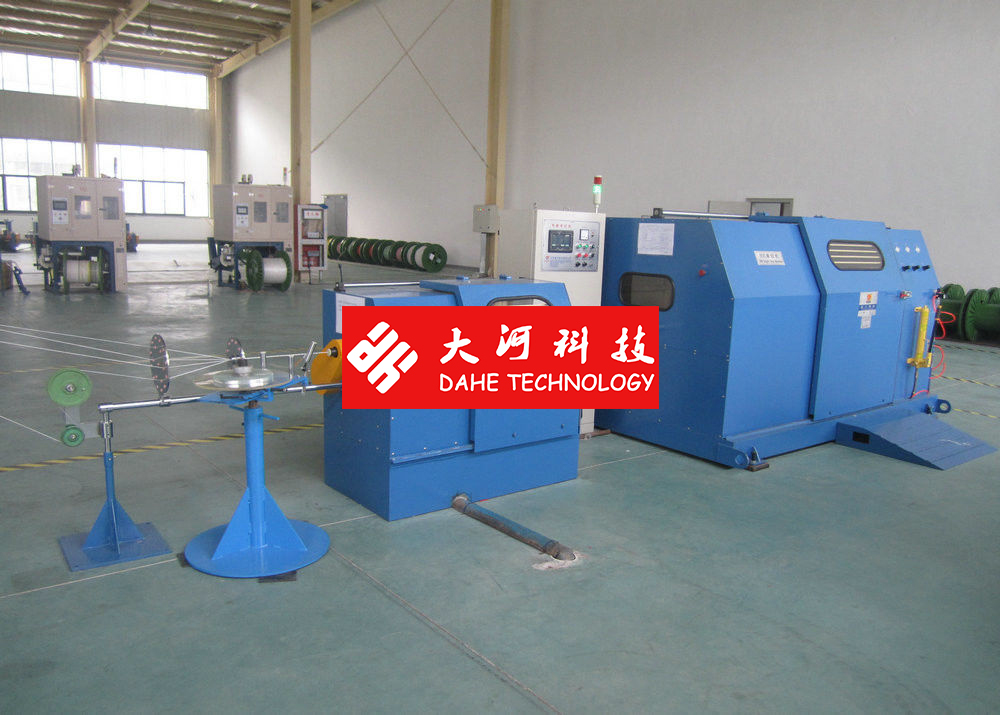

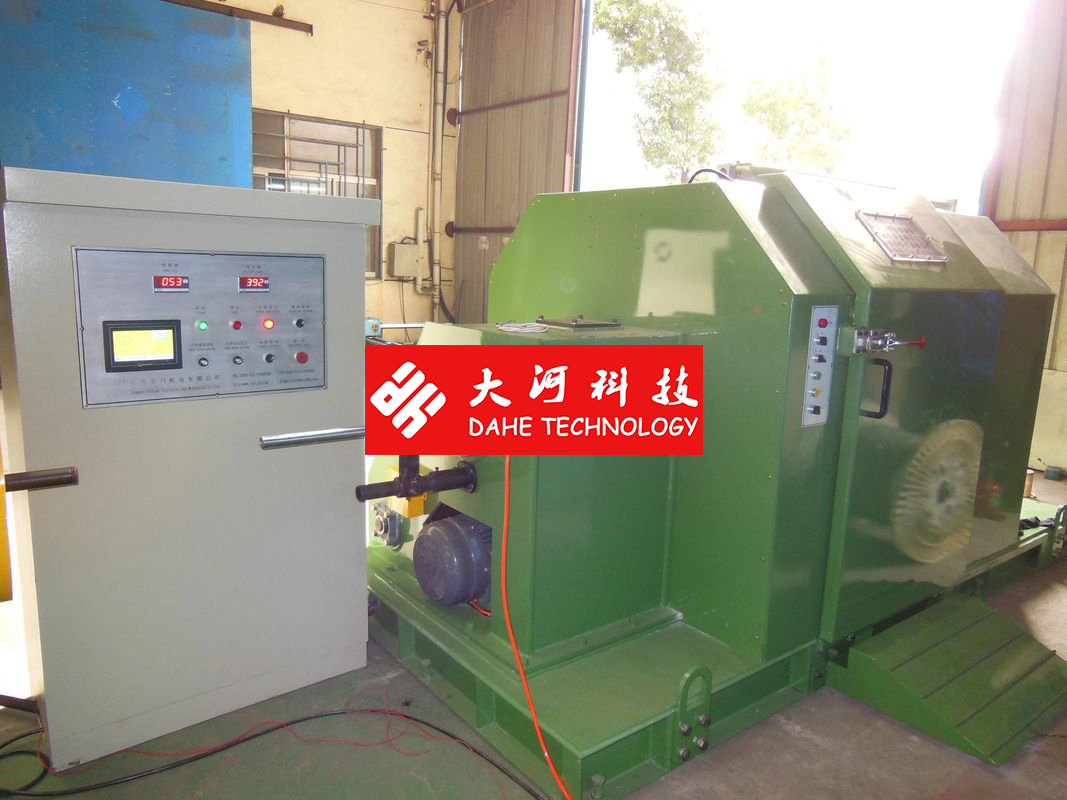

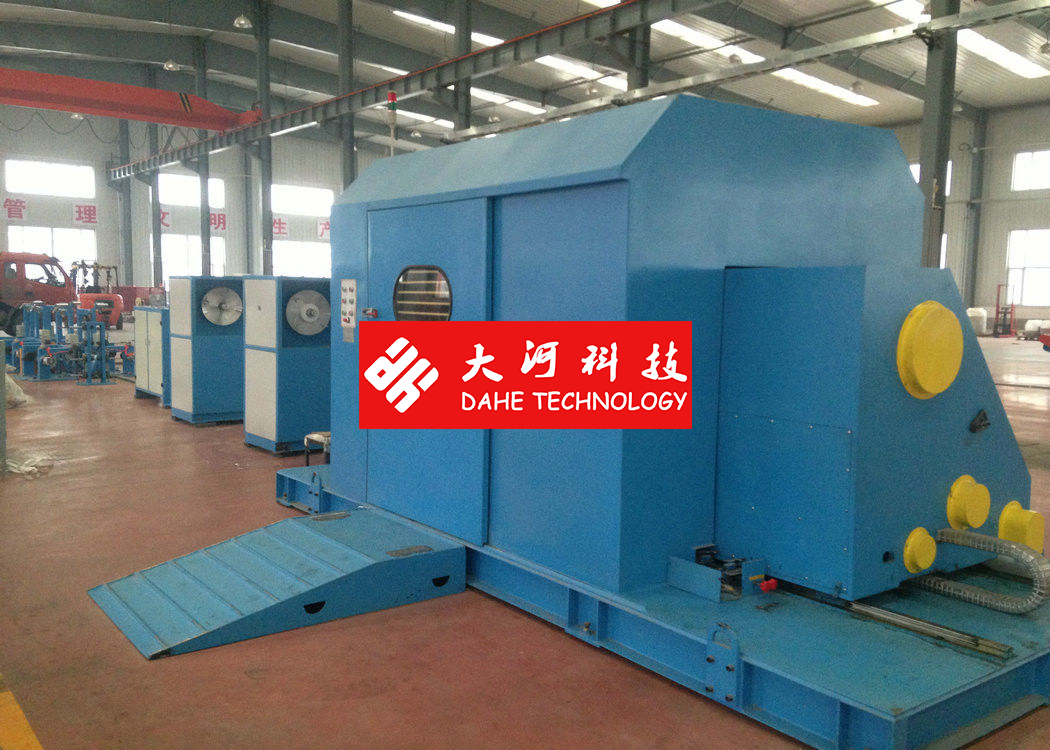

DAHETEC Double Twist Bunching Machine For Core Wire , Normal Wire Twister Machinery
Quick Detail:
DAHETEC® Series for Model B normal wire high speed bunching machine and double twist bunching machine
Japan Technology, product in China
New Product, mainly apply for stranding the electrical wire and automobile wire and other small section area conductor.
Characteristics:
a). Use PLC, hysteresis clutch take-up device imported from German, tension sensor ensure the stable tension and high quality stranding wire, especially for high quality tight line.
b). Use carbon fiber bow, strong rigidity, uneasy-transformation, small shock, light weight, reduce air friction for high quality of conductors;
c). Use synchronous belt drive, just to replace the guide wheel to change the lay distance, easy to operate.
d). Use spindle to calculate meters, only 0.01% error for a certain wire&cable.
e). Use PLC automatically lubricate spindle bearing, avoid injecting too much or too little grease. Get rid of unnormal noise and worn, cost down for maintenance.
Specification:
| Equipment models | DHT-800B | DHT-1000B | DHT-1250C | DHT-1600B | |
| Twisting usage | Apply for twisting aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires),double twisting for core wires. | ||||
| Single wire dia(mm) | 0.38-1.70 | 0.3-2.14 | 0.5-2.52 | 0.5-2.52 | |
| Stranding section area (mm²) | 1.0-16 | 6.0-25.0 | 10.0-35.0 | 10.0-50.0 | |
| Core wire single wire dia(mm) | 1.0-4.0 | 2.0-4.0 | 3.0-6.0 | 3.0-6.0 | |
| Core wire stranding outer dia(mm) | 2.0-8.0 | 4.0-10.0 | 6.0-12.0 | 6.0-15.0 | |
| Pitch(mm) | 6.3-52.3(24classes) | 35-149(20classes) | 41-155(20classes) | 60-260(20classes) | |
| Direction of lay | Optional for right or left | ||||
| Outer dia*bore*outer width | OD800 ID80 H600 | OD1000 ID80 H755 | OD1250 ID80 H950 | OD1600 ID80 H1180 | |
| Max rotating speed | 1600rpm(3000twist) | 1000rpm(2000twist) | 2400rpm(4800twist) | 1500rpm(3000twist) | |
| Main motor power | 15KW | 18.5KW | 22KW | 30KW | |
| Inverter power | 15KW | 18.5KW | 22KW | 30KW | |
| Tension control method | Touch screen +PLC+ magnetic powder clutch, ensure the constant tension from empty to full bobbin | ||||
| Magnetic powder clutch | 10kgf | 20kgf | 30kgf | 40kgf | |
| Protection | automatically brake/stop 1)wire inside and outside is broken 2)the preset length is arrived | ||||
| Brake mode | Electromagnetic brake | ||||
| Traversing method | Rolling wire with ring drive units, winding pitch and breadth are adjustable | ||||
| Operation mode | Touch screen operation | ||||
| Dimension(mm) | 4600L 2000W 2000H | 4000L 2200W 2100H | 4500L 2600w 2500H | 5000L 3000W 3000H | |
