Product Details:
Payment & Shipping Terms:
|
| Name: | Double Twist Bunching Machine | Color: | Sky Blue |
|---|---|---|---|
| Magnetic Powder Clutch: | 40kgf | Brake Mode: | Electromagnetic Brake |
| Operation Mode: | Touch Screen | Fit For Bobbin: | DIAMETER 1600mm |
| Single Wire Dia: | 0.5mm TO 2.52mm | Fitable Wire: | Core Wire/bare Copper Wire,tinned Wire,silver Jacketed Wires |
| High Light: | double twist buncher,steel twisting machine | ||

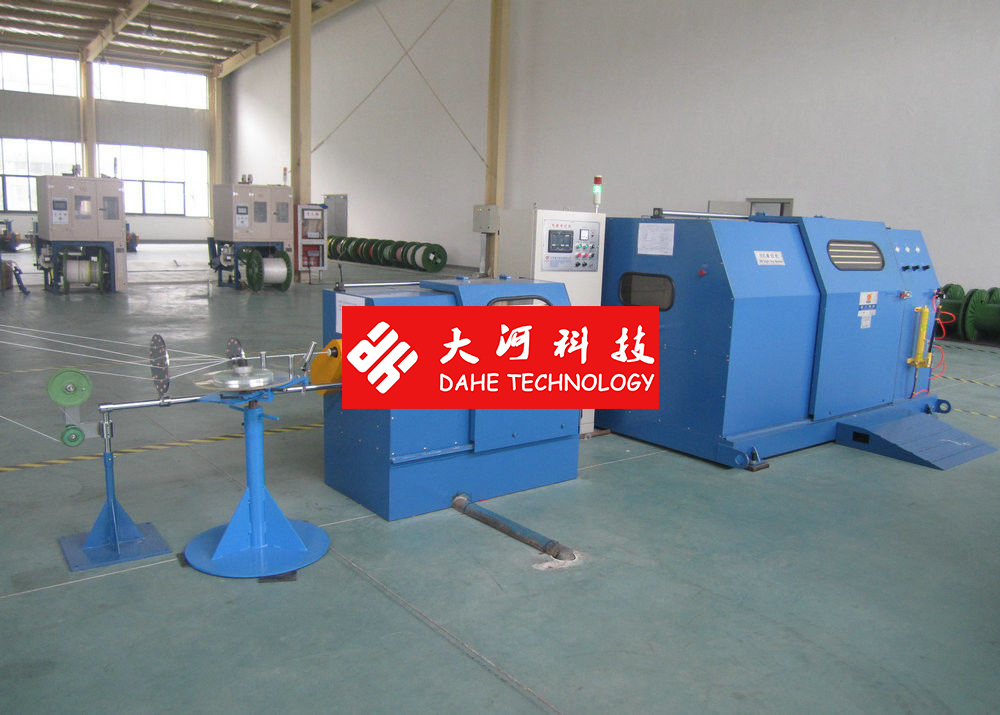

Cable Double Twist Bunching Machine , Plastic Wire Bunching Machine
Double Twist Bunching Machine Characteristics:
a). Use PLC, hysteresis clutch take-up device imported from German, tension sensor ensure the stable tension and high quality stranding wire, especially for high quality tight line.
b). Use carbon fiber bow, strong rigidity, uneasy-transformation, small shock, light weight, reduce air friction for high quality of conductors;
c). Use synchronous belt drive, just to replace the guide wheel to change the lay distance, easy to operate.
Double Twist Bunching Machine Specification:
| Equipment models | DHT-1000B | DHT-1250C | DHT-1600B | |
| Twisting usage | Apply for twisting aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires),double twisting for core wires. | |||
| Single wire dia(mm) | 0.3-2.14 | 0.5-2.52 | 0.5-2.52 | |
| Stranding section area (mm²) | 6.0-25.0 | 10.0-35.0 | 10.0-50.0 | |
| Core wire single wire dia(mm) | 2.0-4.0 | 3.0-6.0 | 3.0-6.0 | |
| Core wire stranding outer dia(mm) | 4.0-10.0 | 6.0-12.0 | 6.0-15.0 | |
| Pitch(mm) | 35-149(20classes) | 41-155(20classes) | 60-260(20classes) | |
| Direction of lay | Optional for right or left | |||
| Outer dia*bore*outer width | OD1000 ID80 H755 | OD1250 ID80 H950 | OD1600 ID80 H1180 | |
| Max rotating speed | 1000rpm(2000twist) | 2400rpm(4800twist) | 1500rpm(3000twist) | |
| Main motor power | 18.5KW | 22KW | 30KW | |
| Inverter power | 18.5KW | 22KW | 30KW | |
| Tension control method | Touch screen +PLC+ magnetic powder clutch, ensure the constant tension from empty to full bobbin | |||
| Magnetic powder clutch | 20kgf | 30kgf | 40kgf | |
| Protection | automatically brake/stop 1)wire inside and outside is broken 2)the preset length is arrived | |||
| Brake mode | Electromagnetic brake | |||
| Traversing method | Rolling wire with ring drive units, winding pitch and breadth are adjustable | |||
| Operation mode | Touch screen operation | |||
| Dimension(mm) | 4600L 2000W 2000H | 4000L 2200W 2100H | 4500L 2600w 2500H | 5000L 3000W 3000H |
