Product Details:
Payment & Shipping Terms:
|
| Single Wire Dia: | Copper Wire 0.08 - 0.45mm | Wire: | Bare Copper Wire,tinned Wires,silver Jacketed Wire |
|---|---|---|---|
| Also Wire: | Enamelled Wire,double Twist | Max Speed: | 3000rpm （6000tpm） |
| Operation Mode: | Touch Screen | Motor Power: | 5.5kw |
| High Light: | double twist buncher,steel twisting machine | ||

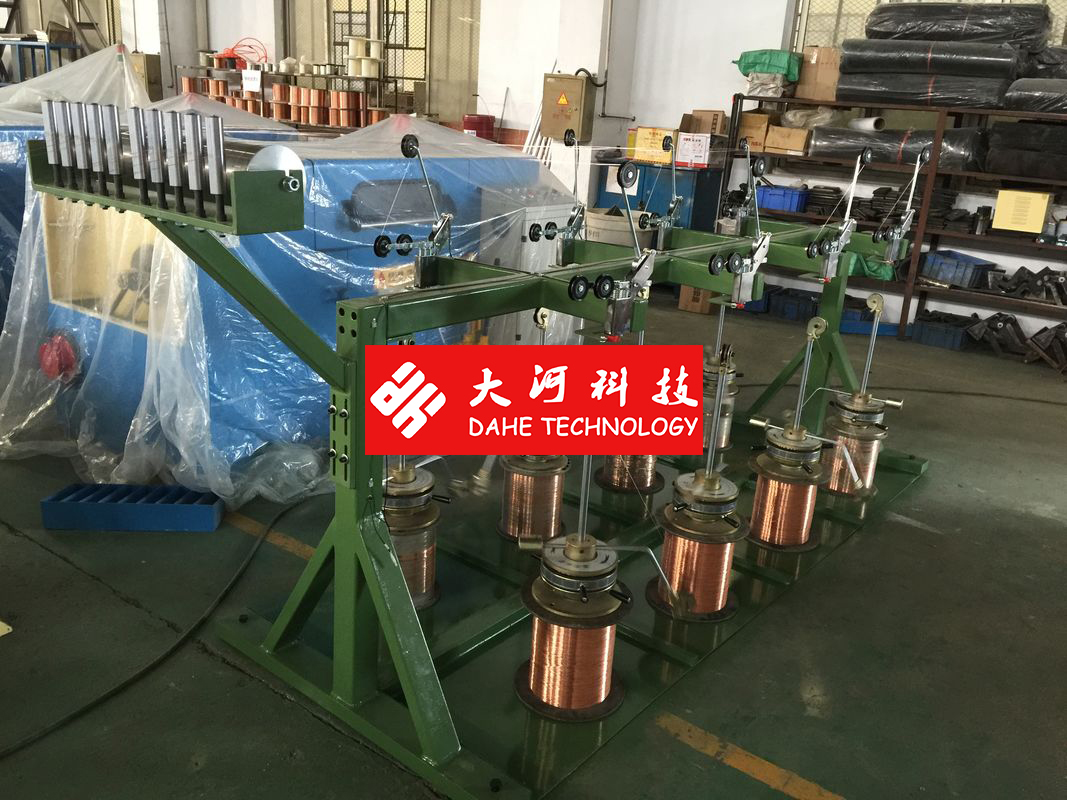

Powerful Double Twist Bunching Machine For Bare Copper Wire / Tinned Wires
Double Twist Bunching Machine Quick Detail:
Equipment models: DHT-500B-7
1.Twisting usage: It is applied to the twisting of above 7 pcs of bare copper wires,tinned wires,silver jacketed wires and enamelled wires and double twisting for core wires.
Double Twist Bunching Machine Specification:
2.1. Single wire diameter: 0.08-0.45mm
2.2. Stranding section area:0.05-2.5mm2
2.3. Core wire single wire diameter: 0.5-1.5mm
2.4. Core wire stranding outer diameter:1.0-3.0mm
2.5. Pitch : 6.3-52.3(24sections)
2.6. Take up bobbin size: diameter 500
2.7. Main motor power:5.5KW
2.8. Inverter power: 5.5KW
2.9. Tension control method: touch screen+PLC+magnetic powder clutch,it may ensure the constant
tension from empty bobbin to full bobbin.
2.10 Protection: Machine will automatically brake when wire inside and outside is broken,the machine will automatically stop when the preset length is arrived.
