Tension Control Twist Bare Copper Wire Bunching Machine/Equipment

上架时间：2022-03-14

浏览次数：426

产品类型：

产品颜色：

产品价格：￥

Color:	Blue	Fit For Bobbin:	Max Diameter 250mm
Fit Copper Wire:	0.08mm-0.45mm	Wire:	Core Wire/bare Copper Wire,tinned Wire,silver Jacketed Wires
Used:	Working With Buncher	Type:	Active Type
High Light:	automatic wire twister , wire twist machine

DAHETEC Tension Control Twist Bare Copper Wire Bunching Machine/Equipment

Quick Details:

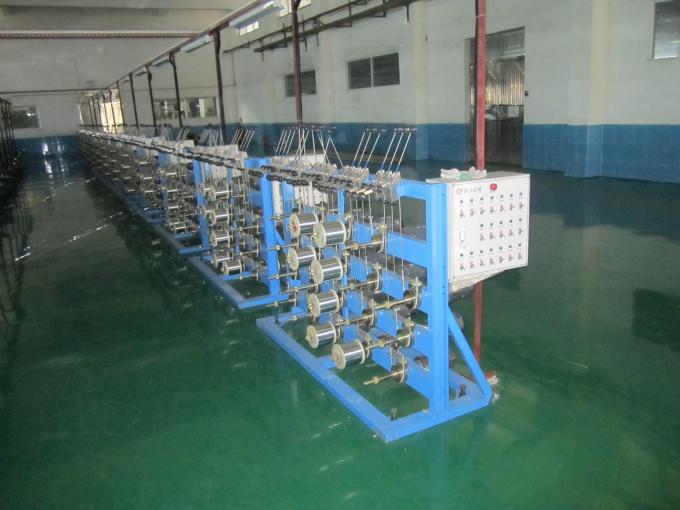

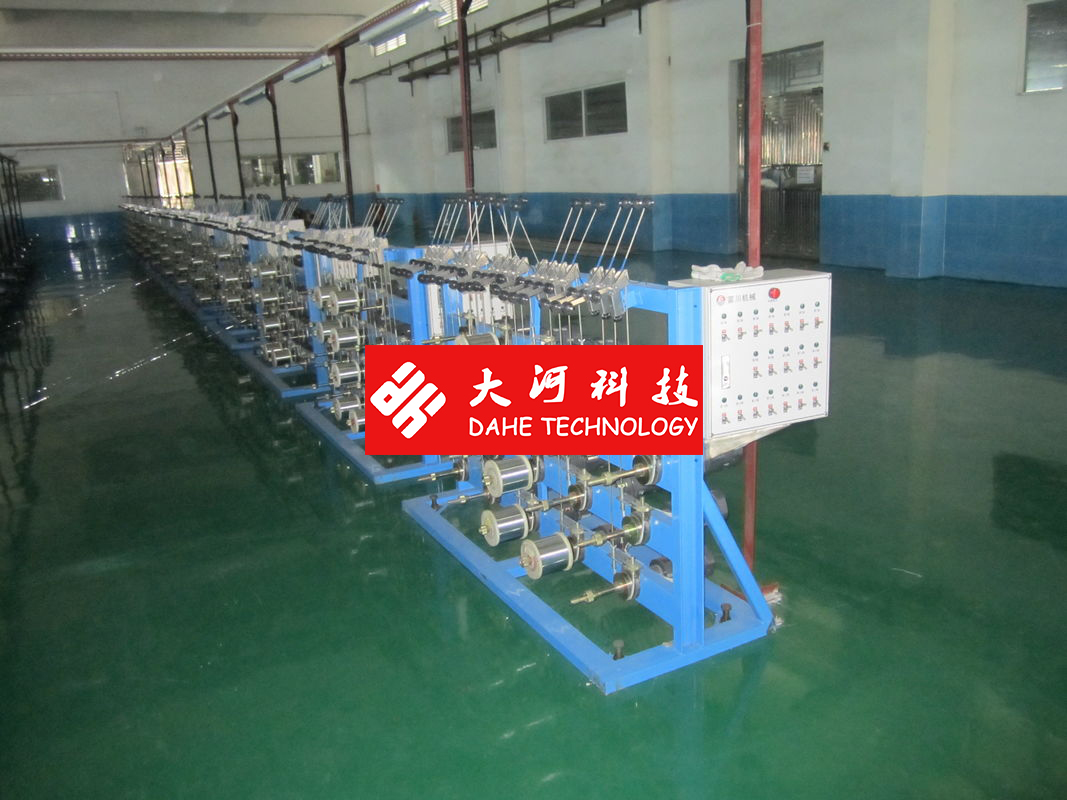

passive type or active pay off machine

Apply for the bunching of aerospace, medical instrument, cellphone,notebook PC and ultra fine conductor(above seven pcs of alloy wires, tinned wires, silver jacketed wires and enamelled wires).

1. Fit for wire:dia0.08mm-0.45mm

2. Fit for ABS bobbin Φ250*φ20*120 and Φ200*φ30*180

3. Brake: when wire is break, the belt will stopped automatically.

4. Tension control: spring type tension gun control, when wire is break, the machine will brake.

5. 50heads/set *1set

Characteristics:

Japanese Technology ,Product in China

1. High production speed, constant tension from empty to full bobbin, especially for high quality stranding wire.

2. Use shaft to calculate meters, less than 0.01% error for a certain wire&cable.

3. With DHT-100 active back-twist pay-off machine to achieve bunching instead of twisting.

4. Especially for twisting small cross-section area.

5. Use synchronous belt drive,

Specifications:

Equipment Models	DHT-200B	DHT-250B	DHT-300B		DHT-400B
Twisting Usage	Apply for the bunching of aerospace, medical instrument, cellphone,notebook PC and ultra fine conductor(above seven pcs of alloy wires, tinned wires, silver jacketed wires and enamelled wires).
Single Wire Dia(mm)	0.016～0.08	0.03～0.18	0.05～0.28		0.05～0.32
Stranding Section Area(mm²)	0.0014～0.035	0.0049～0.3	0.0137～0.45		0.0137～1.0
Pitch(mm)	0.8～4.0(14 classes)	0.8~10.8(24classes)	1.6～21.6(24classes)		3.1～33.3(24classes)
Direction of Lay	Free to right or left
Take-up Bobbin(mm) Outer diaboreouter width	20031135	30030185	25030185 30030185		30030185 40056300
Max Rotating Speed(rpm)	5000rpm(10000tpm)	4000rpm(8000tpm)	3500rpm(7000tpm)		3500rpm(7000tpm)
Main Motor Power	2.2KW	3.7KW	3.7KW		3.7KW
Inverter Power	2.2KW	3.7KW	3.7KW		3.7KW
Tension Control	Touch screen+ PLC+ magnetic powder clutch, ensure the constant tension from empty to full bobbin
Magnetic Powder Clutch	0.05kgf	0.3kgf		0.6kgf	0.6kgf
Protection	automatically brake/stop 1)wire inside and outside is broken 2)the preset length is arrived
Brake Mode	Electromagnetic brake
Traversing Method	Rolling wire with ring drive units, winding pitch and breadth are adjustable
Operation Mode	Touch Screen Operation
Dimension LWH	20009601100	230011001330		230011001330	285011501350
