Product Details:
Payment & Shipping Terms:
|
| Color: | Apple Green | Fit For Bobbin: | Diameter 630mm |
|---|---|---|---|
| Fit Copper Wire: | 0.12mm-0.52mm | Wire: | Core Wire,bare Copper Wire,tinned Wires,silver Jacketed Wires |
| Soft Wire: | Flexible Wire/ Insulated Wire | Brake Mode: | Electromagnetic Brake |
| Operation Mode: | Touch Screen Operation | ||
| High Light: | cable twisting machine,wire twist machine | ||
DAHETEC high speed apple Green Copper Wire Bunching Machine , Cable Machinery
Quick Details:
DAHETEC® Series for Model B normal wire high speed bunching machine and double twist bunching machine
Japan Technology, product in China
New arrival, mainly apply for stranding the electrical wire and automobile wire and other small section area conductor.
Characteristics:
Japan Technology, product in China

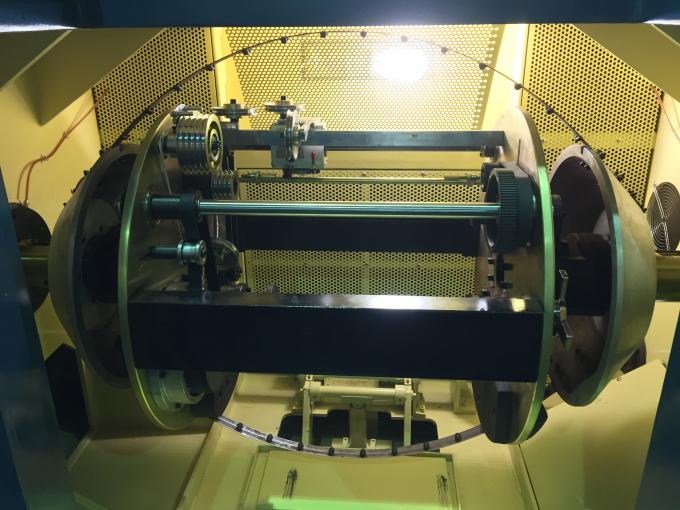

With high rotation speed, with constant tension from empty bobbin to full bobbin, with superior quality for twist wire, The machine is driven by synchronization strap. Only need to change the capstan wheel to change the pitch. Easy to operate.
Specifications:
| Equipment models | DHT-500B | DHT-650B | DHT-650C | DHT-800B | |
| Twisting usage | Apply for twisting aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires),double twisting for core wires. | ||||
| Single wire dia(mm) | 0.08-0.45 | 0.15-1.04 | 0.12-0.52 | 0.38-1.70 | |
| Stranding section area (mm²) | 0.05-2.5 | 0.35-6.0 | 0.30-4.0 | 1.0-16 | |
| Core wire single wire dia(mm) | 0.5-1.5 | 0.5-3.0 | 0.5-2.0 | 1.0-4.0 | |
| Core wire stranding outer dia(mm) | 1.0-3.5 | 1.0-6.0 | 1.0-4.0 | 2.0-8.0 | |
| Pitch(mm) | 6.3-52.3(24classes) | 11.6-100(34classes) | 11.6-100(34classes) | 23-147(20classes) | |
| Direction of lay | Optional for right or left | ||||
| Outer dia*bore*outer width | OD500 ID56 H375 | OD630 ID56 H475 | OD630 ID56 H475 OD630 ID127 H475 | OD800 ID80 H600
| |
| Max rotating speed | 3000rpm(6000twist) | 2000rpm(4000twist) | 2400rpm(4800twist) | 1500rpm(3000twist) | |
| Main motor power | 5.5KW | 7.5KW | 11KW | 15KW | |
| Inverter power | 5.5KW | 7.5KW | 11KW | 15KW | |
| Tension control method | Touch screen +PLC+ magnetic powder clutch, ensure the constant tension from empty to full bobbin | ||||
| Magnetic powder clutch | 1.2kgf | 5kgf | 2.5kgf | 10kgf | |
| Protection | automatically brake/stop 1)wire inside and outside is broken 2)the preset length is arrived | ||||
| Brake mode | Electromagnetic brake | ||||
| Traversing method | Rolling wire with ring drive units, winding pitch and breadth are adjustable | ||||
| Operation mode | Touch screen operation | ||||
| Dimension(mm) | 2680L 1250W 1500H | 3300L 1550W 1800H | 3300L 1550w 1800H | 4600L 2000W 2000H | |
