Product Details:
Payment & Shipping Terms:
|
| Color: | Sky Blue | Fit For Bobbin: | Diameter 400mm |
|---|---|---|---|
| For Wire: | Bare Copper Wire/silver Jacketed Wire/enamelled Wire | Wire Dia: | 0.05-0.32mm |
| Wire: | Core Wire Double Twist | Magnetic Powder Clutch: | 0.6kgf |
| Control Type: | Computer Control | ||
| High Light: | automatic wire twister,wire twist machine | ||
DAHETEC Aerospace Copper High Rotation Speed Wire Bunching Machine/ Equipment with Diameter 400mm 0.6kgf
Quick Details:
Apply for the bunching of aerospace, medical instrument, cellphone,notebook PC and ultra fine conductor(above seven pcs of alloy wires, tinned wires, silver jacketed wires and enamelled wires).
Characteristics:
1. High production speed, constant tension from empty to full bobbin, especially for high quality stranding wire.
2. Use shaft to calculate meters, less than 0.01% error for a certain wire&cable.

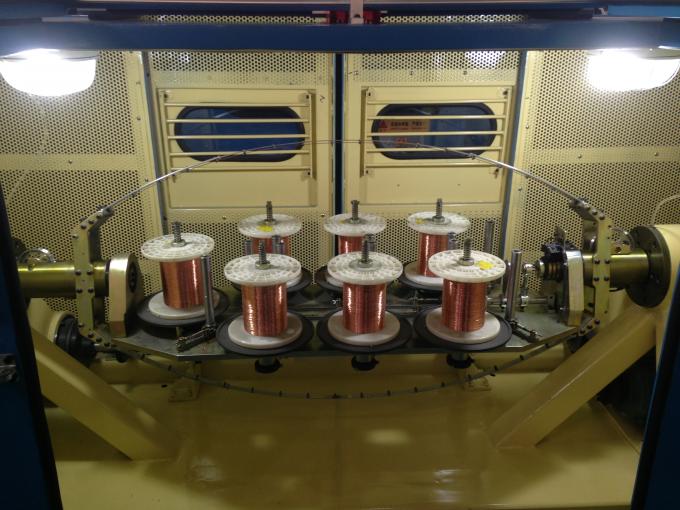

3. With DHT-100 active back-twist pay-off machine to achieve bunching instead of twisting.
4. Especially for twisting small cross-section area.
5. Use synchronous belt drive,
6. Change guide wheel to change lay distance, easy to operate.
Specifications:
| Equipment models | DHT-400B-4 |
| Twisting usage | It is applied to the twisting of aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires),double twisting for core wires. |
| Single wire dia(mm) | φ0.05-φ0.32 |
| Stranding section area (mm²) | 0.0137-1.0 |
| Core wire single wire dia | φ0.5-φ1.5 |
| Core wire stranding outer dia | φ1.0-φ3.5 |
| Pitch(mm) | 3.1-33.3(24zones) |
| Direction of lay | Optional for right or left |
| Outer dia*bore*outer width | φ400*φ56*300 |
| Max rotating speed | 3500(7000twist) |
| Main motor power | 3.7KW |
| Inverter power | 3.7KW |
| Tension control method | Touch screen +PLC+ magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin |
| Magnetic powder clutch | 0.6kgf |
| Protection | Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived. |
| Brake mode | Electromagnetic brake |
| Traversing method | Rolling ring drive units, winding pitch and breadth are adjustable |
