Apple Green Copper Automatic Wire Twister / Cable Machinery With Touch Screen

上架时间：2022-03-14

浏览次数：212

产品类型：

产品颜色：

产品价格：￥

Color:	Apple Green	Fit For Bobbin:	DIA 630mm
Fit Copper Wire:	0.12mm To 0.52mm	Wire:	Core Wire,bare Copper Wire,tinned Wires,silver Jacketed Wires
Soft Wire:	Flexible Wire/ Insulated Wire	Brake Mode:	Electromagnetic Brake
Operation Mode:	Touch Screen
High Light:	cable twisting machine , wire twist machine

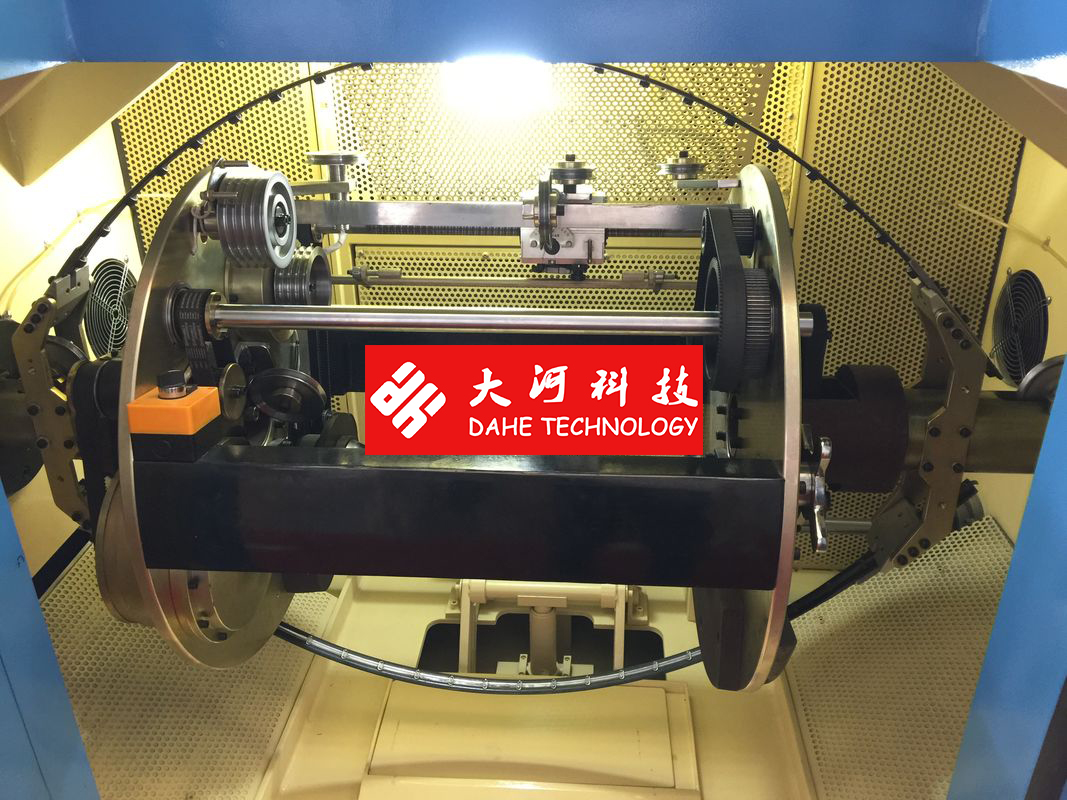

DAHETEC high speed apple Green Copper Wire Bunching Machine , Cable Machinery

Quick Details:

Japan Technology, product in China

DAHETEC® Series for Model B normal wire high speed bunching machine and double twist bunching machine

New arrival, mainly apply for stranding the electrical wire and automobile wire and other small section area conductor.

Characteristics:

a) With high rotation speed, with constant tension from empty bobbin to full bobbin, with superior quality for twist wire,

b) The machine is driven by synchronization strap.

c) Only need to change the capstan wheel to change the pitch.

d) Easy to operate.

Specifications:

Equipment models	DHT-500B	DHT-650B-3		DHT-650C	DHT-800B
Twisting usage	Apply for twisting aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires),double twisting for core wires.
Single wire dia(mm)	0.08-0.45	0.15-1.04		0.12-0.52	0.38-1.70
Stranding section area (mm²)	0.05-2.5	0.35-6.0		0.30-4.0	1.0-16
Core wire single wire dia(mm)	0.5-1.5	0.5-3.0		0.5-2.0	1.0-4.0
Core wire stranding outer dia(mm)	1.0-3.5	1.0-6.0		1.0-4.0	2.0-8.0
Pitch(mm)	6.3-52.3(24classes)	11.6-100(34classes)		11.6-100(34classes)	23-147(20classes)
Direction of lay	Optional for right or left
Outer diaboreouter width	OD500 ID56 H375	OD630 ID56 H475		OD630 ID56 H475 OD630 ID127 H475	OD800 ID80 H600
Max rotating speed	3000rpm(6000twist)	2000rpm(4000twist)		2400rpm(4800twist)	1500rpm(3000twist)
Main motor power	5.5KW	7.5KW		11KW	15KW
Inverter power	5.5KW	7.5KW		11KW	15KW
Tension control method	Touch screen +PLC+ magnetic powder clutch, ensure the constant tension from empty to full bobbin
Magnetic powder clutch	1.2kgf	5kgf		2.5kgf	10kgf
Protection	automatically brake/stop 1)wire inside and outside is broken 2)the preset length is arrived
Brake mode	Electromagnetic brake
Traversing method	Rolling wire with ring drive units, winding pitch and breadth are adjustable
Operation mode	Touch screen operation
Dimension(mm)	2680L 1250W 1500H		3300L 1550W 1800H	3300L 1550w 1800H	4600L 2000W 2000H

Other Information

FOB SHENZHEN

Payment

TT, L/C

Delivery

FOB SHENZHEN

Origin

China

Minimum Order

1 set

Package

with container
