Product Details:
Payment & Shipping Terms:
|
| Wire: | 19pcs Nickel Wires φ0.19mm - φ0.303mm One Time Bunching | Bobbin: | DIAMETER 160 Or 500 Mm |
|---|---|---|---|
| Wire: | 19 Pcs Copper Wire | Max Speed: | 2600RPM(5200TPM) |
| Pay Off Motor Power: | 5.5kw | Pay Off Bobbin: | DIA 1600 Mm |
| Take Up Motor Power: | 2.5kw Motor | ||
| High Light: | cable twisting machine,wire twist machine | ||

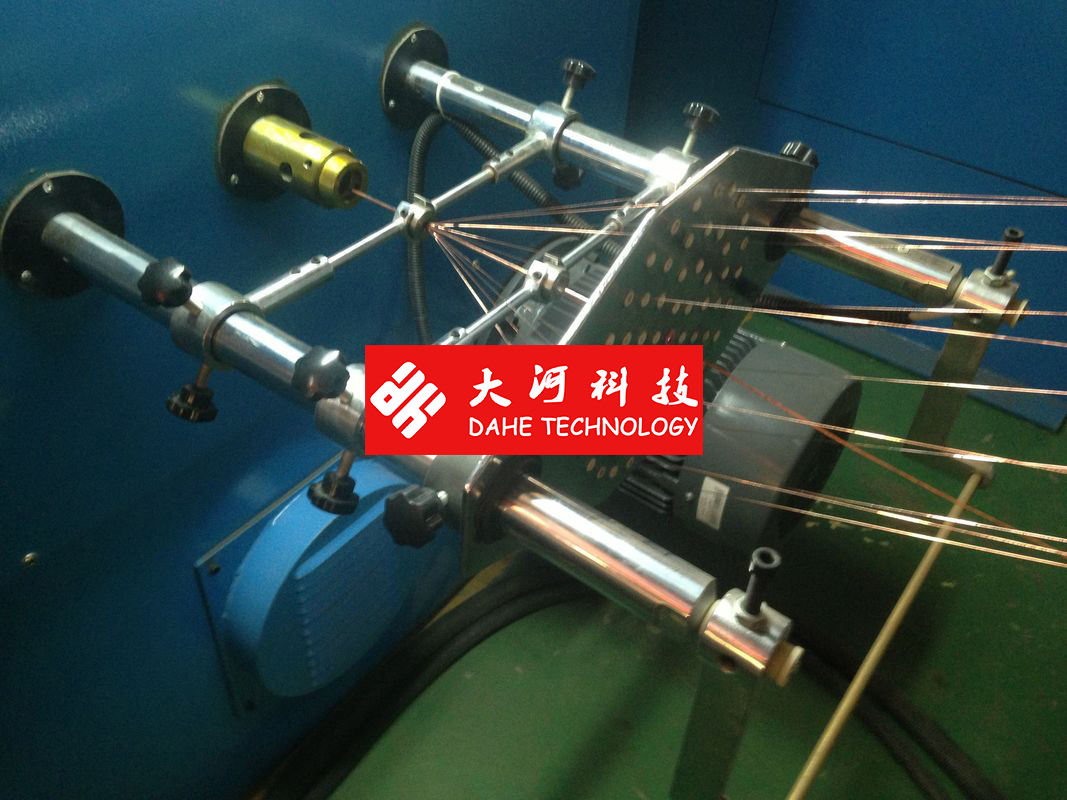

DAHETEC 19 Pcs Nickel Wire Bunching Machine / Twisting Machine 0.19~0.303
Quick Details:
DAHETEC DHT-1+6+12 bunching machine 19pcs nickel wires φ0.19mm - φ0.303mm in one time
Characteristics:
(1.1). It is the latest developed machine.
(1.2). This machine replace the model 200 tube bunching machine with the high productivity(It is 4.5times than
tube machine for the 1+6+12 conductors normal bunching)
(1.3). Low power, small floor place, low noise and other merits.
Specifications:
| Equipment models | 1+6+12(160bobbin) | FC 1+6+12(250bobbin) |
| Twisting usage | It is applicable to bunching 19pcs copper wires in one time | |
| Single wire dia(mm) | φ0.19-φ0.303 | |
| Stranding section area (mm²) | 0.38-1.5mm² | |
| Pitch(mm) | 6.3-52.3(24zones) | |
| Direction of lay | Optional for right or left | |
| Pay off bobbin size | DIN 160 | DIN 250 |
| Max rotating speed | 2600(4000twist) | 2400(4000twist) |
| Pay off type | Mechanical friction | Magnetic tension |
| Pay off machine power | 5.5KW | 7.5KW |
| Take up bobbin size | φ500*φ127*375 | φ500*φ127*375 |
| Pay off Inverter power | 11KW | 11KW |
| Main motor power | 11KW | 11KW |
| Take up inverter power | 11KW | 11KW |
| Tension control method | Touch screen+PLC+magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin | |
| Magnetic powder clutch | 1.2kgf | 1.2kgf |
| Protection | Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived. | |
| Brake mode | Electromagnetic brake | |
| Traversing method | Rolling ring drive units, winding pitch and breadth are adjustable | |
| Operation mode | Touch screen operation | |
| Dimension(mm) | 10000L*2500W*1650H | 10000L*2500W*1650H |
