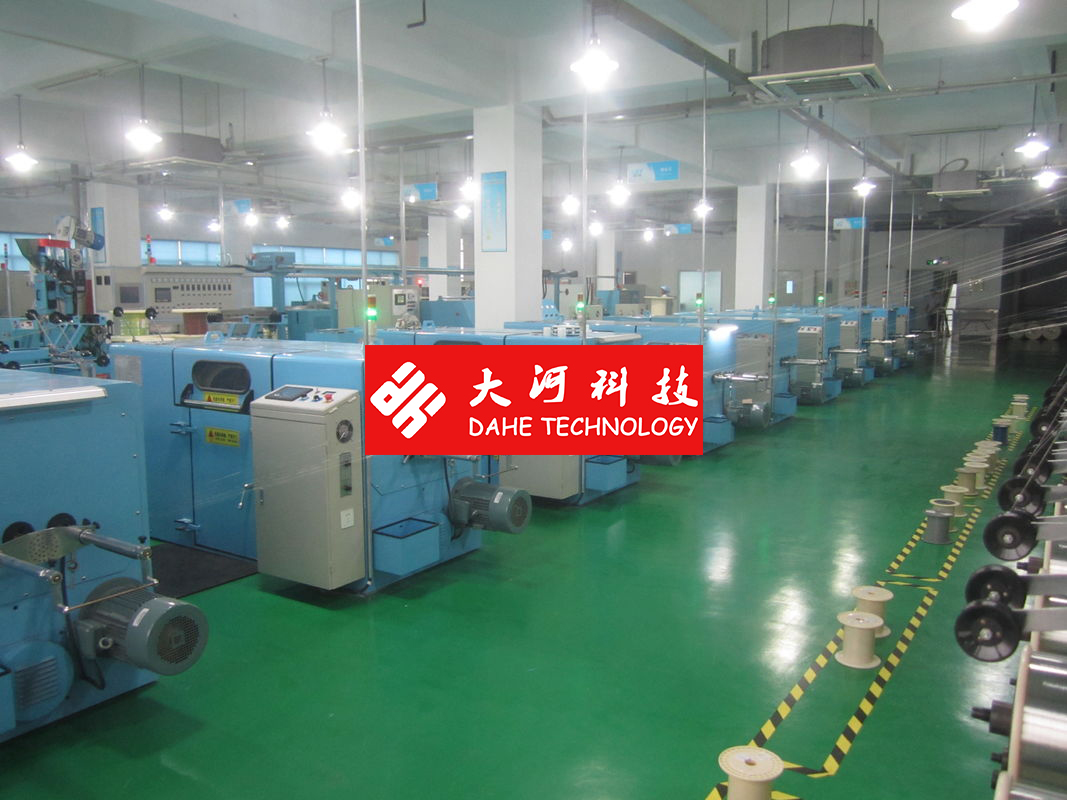

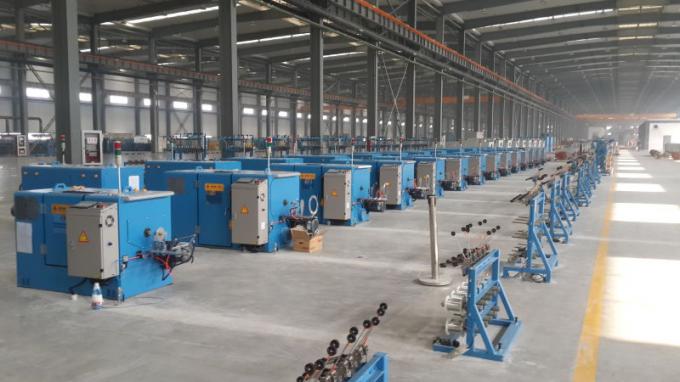

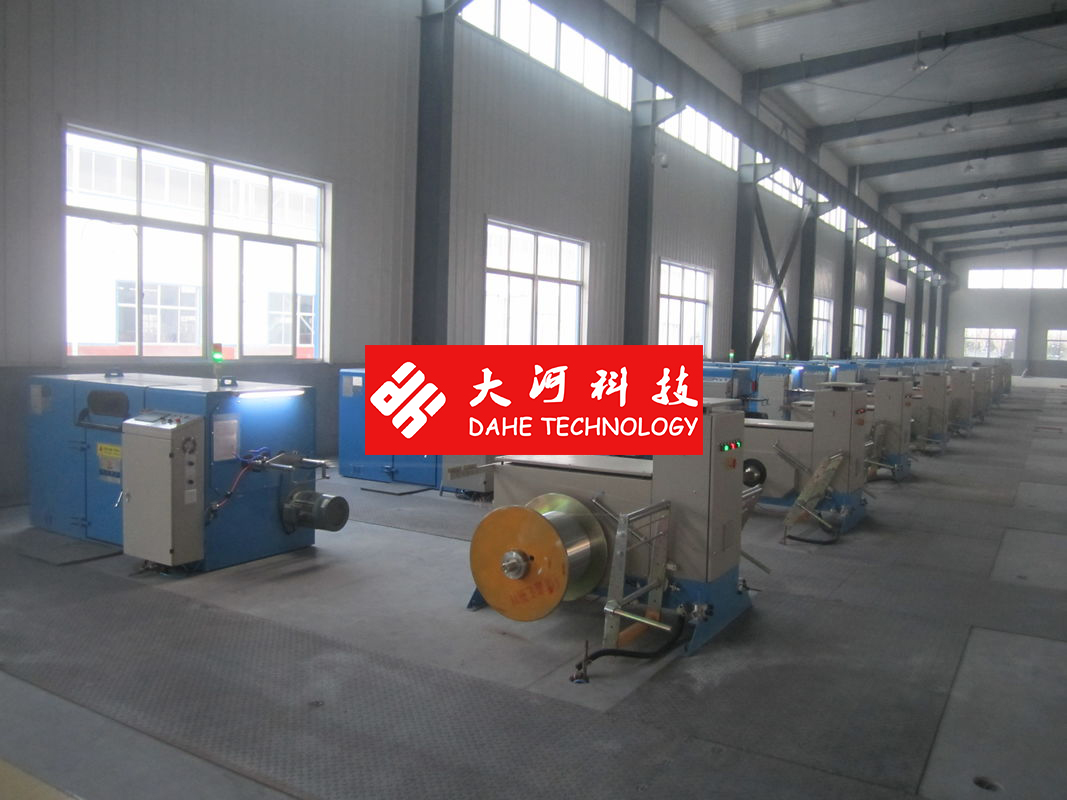

High Accuracy Cable Bunching Machine / Touch Screen Cable Extrusion Line

Cable Bunching Machine Merits:

1. High speed, good stability

2. Automatic tension control: When stranding, the reel take-up from the empty to the full , the tension must be increased (With the touch screen Free Set the data) The machine can automatically adjust the tension smoothly, keep the tension uniform variation ,Can achieve tension setting while working .

3. Over-line system: The latest structure, the wire from the spindle directly across the guide wheel to the bow belt, the bow (with) a unique semi-circular groove design, with the bow with a semicircle porcelain ring line to avoid high-speed operation due to wind resistance Caused by stranding scratch, jump shares phenomenon

4. Spindle lubrication: butter lubrication (Oil lubrication defects: the oil’s temperature increases while high-speed operation , and the oil mist will concentrate into beads on the wall , falling to the reel and pollute the conductor, cause blister when conduct insulating )

5. Security protection: If the door contact is not in place, lift contact is not in place, internal and external wire broken error display in the touch screen on the automatic alarm or can not start to work

6. Meter counting way: the latest domestic design, with spindle meters; the same machine twisted with a conductor specifications, meter error in one ten thousandth

main performance parameters

1. Application: over 7 pcs alloy wires, tinned wire, enameled wire and etc. 1 + 6 can replace twisting with stranding

2. Mono-filament diameter range: φ0.025 ~ φ0.08mm

3. Twisted wire diameter range: φ0.075~ φ0.24mm

4. Stranded cross-sectional area: 0.0034~ 0.035mm²

5. Spool specifications: φ200mm ×31mm×φ135mm(or customerized with client’s drawings)

6. Max speed : 3000RPM(Design speed);

7. Cable laying: φ15mm light rod bearing type ,rolling lay length and distance can be accurately adjusted

8. Strand lay length: 0.8~ 4.0mm 14 class

9. Main motor: 2.2KW AC motor

10. Direction: left hand machine, i.e, facing to the front door,pay-off on the right (can be customization according to customer requirements)

11. Body and door seal: plastic seal

12. Spindle bearing Seal: Mechanical oil retaining ring

Mechanical Performance

1. Body structure:

1) Material: low carbon steel welded together.

2) Structure: the body by annealing and aging, to eliminate internal stress, and then boring by a precision boring machine to forming a molding.

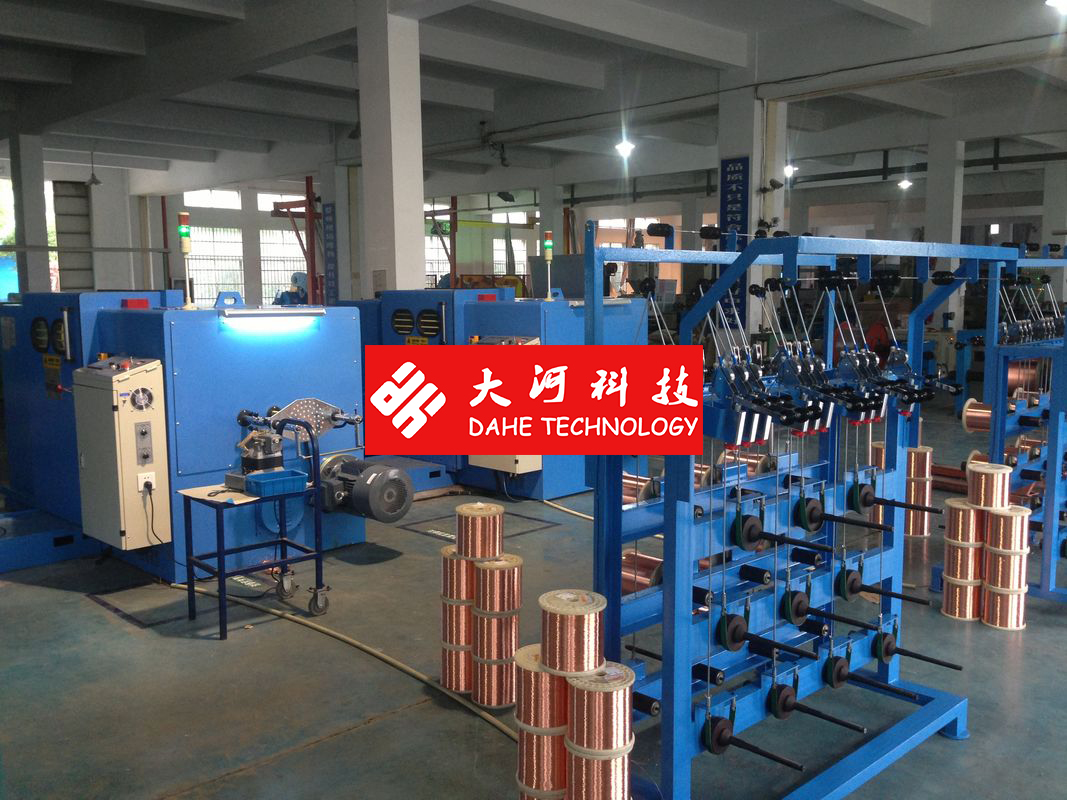

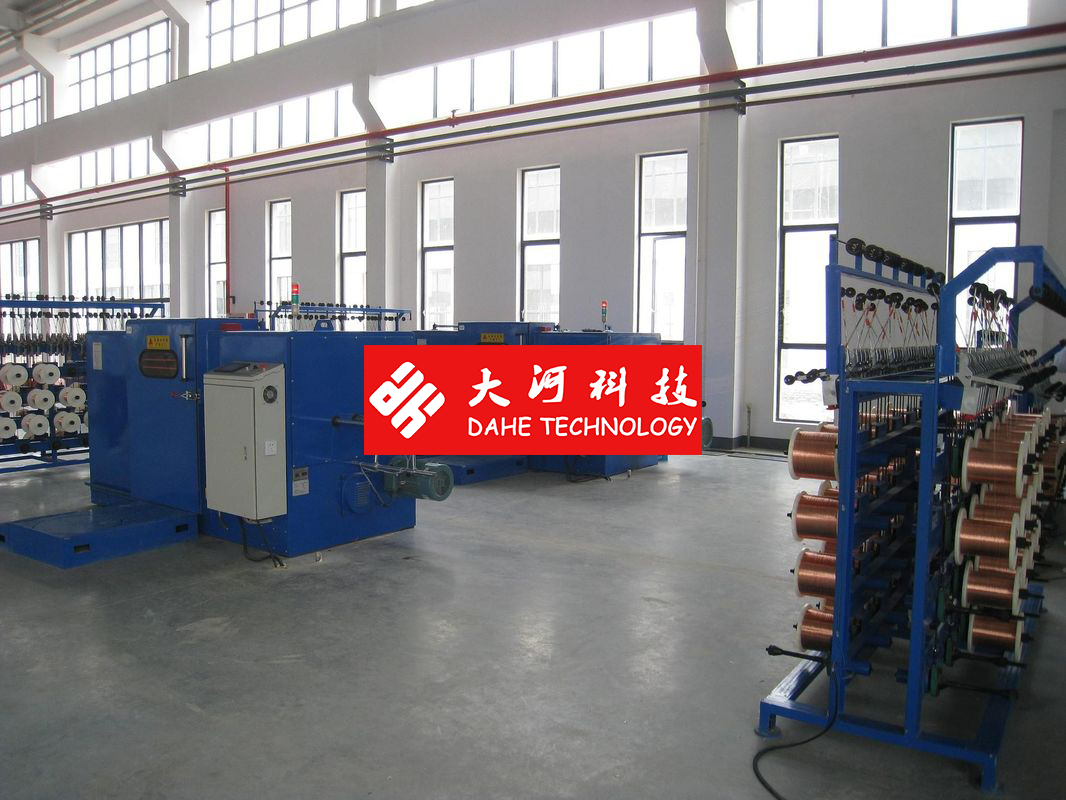

2. Bunching Entry part:

1) Bunching Entry position: facing to the front door, at the right side of the machine (can be customization according to customer requirements to change to the left side).

2) Bunching Entry Mode : from the pay-off device through the disconnection sensing area, first to the total sub-line board (sub-hole by 1 +6 +12 + ... distribution), through first pressure mold, then the second Pressure mold, after entering the right spindle within the wire guide wheel. From the aluminum arch with porcelain ring and then into the left spindle within the wire guide wheel, and then through the center corner’s guide wheel to the leading wheel, Final to the aligner’s guide wheel to cable laying (see wire bunching entry pattern diagram)

3. Spindle bearing lubrication system:

1) Lubrication method: butter lubrication

2) Butter Model: LGMT2

3) Sealing method: mechanical oil retaining ring, keep the machine clean inside

4.Take up:Tensile tension control: through the magnetic clutch control thread tension, by the PLC program controller automatically adjust the tension, keep tension constant

5. Cable laying:Special two-way cable laying device, φ15mm light rod bearing type,lay length and distance can be accurately adjusted

6. Spool Size:

(Can be customerize)

7. Dynamic power : 1KW

8. Installed power : 2.2KW
