Good Stability Wire Binding Machine , Automatic Double Twist Buncher

Good Stability Wire Binding Machine , Automatic Double Twist Buncher

Wire Binding Machine Merits:

1. High speed, good stability

2. Automatic tension control: When stranding, the reel take-up from the empty to the full , the tension must be increased (With the touch screen Free Set the data) The machine can automatically adjust the tension smoothly, keep the tension uniform variation ,Can achieve tension setting while working .

3. Security protection: If the door contact is not in place, lift contact is not in place, internal and external wire broken error display in the touch screen on the automatic alarm or can not start to work

4. Change the lay length: easy to operate, just change the leading wheel according to the lay length sheet

5. Pressing device: equipped with two pressing devices to ensure the roundness of the conductor after twisting, to protect the product characteristics of thin-walled insulation line, effectively reduce the wear and tear of insulating materials.

6. Meter counting way: the latest domestic design, with spindle meters; the same machine twisted with a conductor specifications, meter error in one ten thousandth

Wire Binding Machine Mechanical Performance

1. Spindle:

1) Material: 40Cr steel forging after quenching and tempering treatment.

2) Accuracy: The shaft core outer face diameter and the bearing end face are ground to ensure concentricity and verticality with the axis.

3) Dynamic balance: Standard of G2.5 (0.03 grams of weight difference)

2. Aluminum plate:

1) Material: ZL104

2) Accuracy: All end faces are positioned relative to the locating holes(less than 0.03 grams)

3) Dynamic balance: Accuracy of G2.5 (0.03 grams of weight difference)

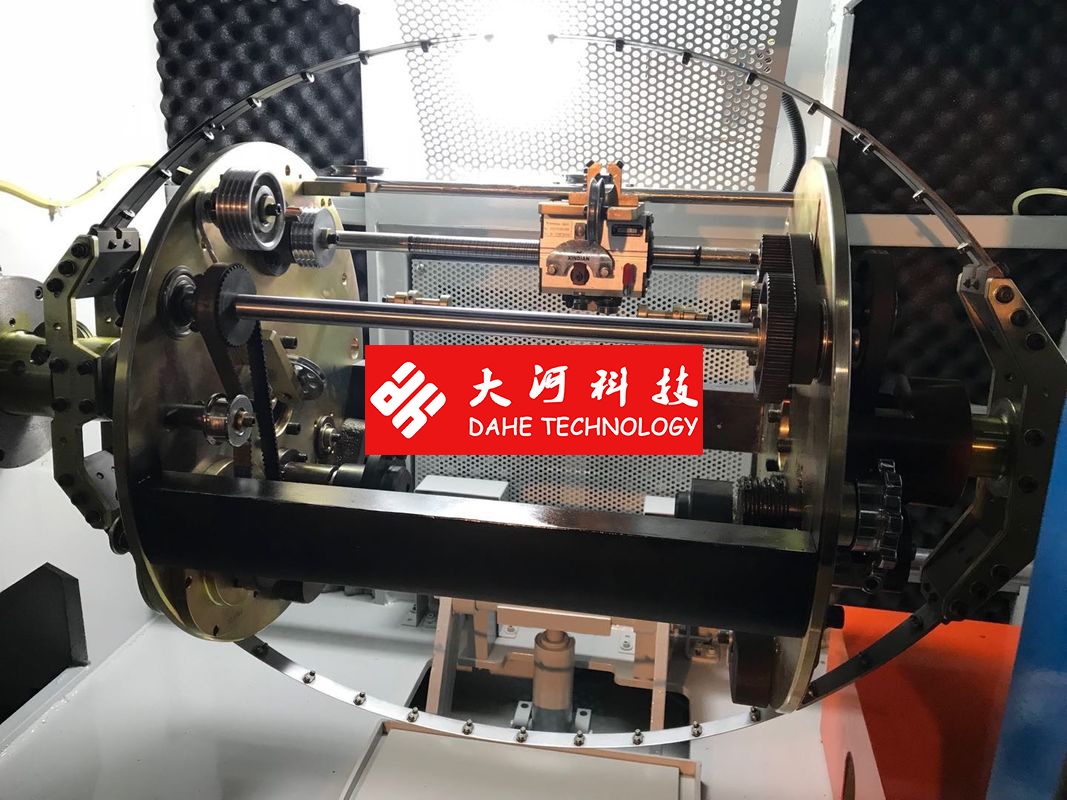

3. Bow

1) Material: Japan imported SK5.

2) Shape: special appearance, reduce the wind resistance.

3) Weight tolerance : less than 0.03 grams per pair

4. Transmission part: with imported synchronous belt drive, laying length accurate

5. Wire entry wheel:

1) Material: # 45 steel finished with heat treatment HRC30-40.

2) Hard chrome plated on the surface, not easy to wear

6. Spindle housing:

1) Material: ductile iron QT42-10.

2) Processing: CNC machine tooling

3) Accuracy: one processing hole end molding, to ensure concentricity.

7. Spindle bearing lubrication system:

1) Lubrication method: butter lubrication

2) Butter Model: LGMT2

3) Sealing method: mechanical oil retaining ring, keep the machine clean inside

8.Take up:Tensile tension control: through the magnetic clutch control thread tension, by the PLC program controller automatically adjust the tension, keep tension constant

9. Cable laying:Special two-way cable laying device, φ15mm light rod bearing type,lay length and distance can be accurately adjusted

10. Spool Size:

(Can be customerize)

11. Dynamic power : 1KW

12. Installed power : 2.2KW

Wire Binding Machine Detail Specification:
