Product Details:
Payment & Shipping Terms:
|
| Fit For Wire: | 19pcs Copper Wires φ0.16mm - φ0.64mm In One Time | Fit For Bobbin: | Diameter 630 Or 250mm |
|---|---|---|---|
| Wire: | 19pcs Of Copper Wire | Max Speed: | 2000(4000twist) |
| Pay Off Motor Power: | 5.5kw | Take Up Motor Power: | 7.5kw Cable Braiding Machine |
| Pay Off Bobbin: | Diameter 500mm | Mainly: | 0.41/0.52/0.64mm |
| High Light: | automatic wire twister,wire twist machine | ||

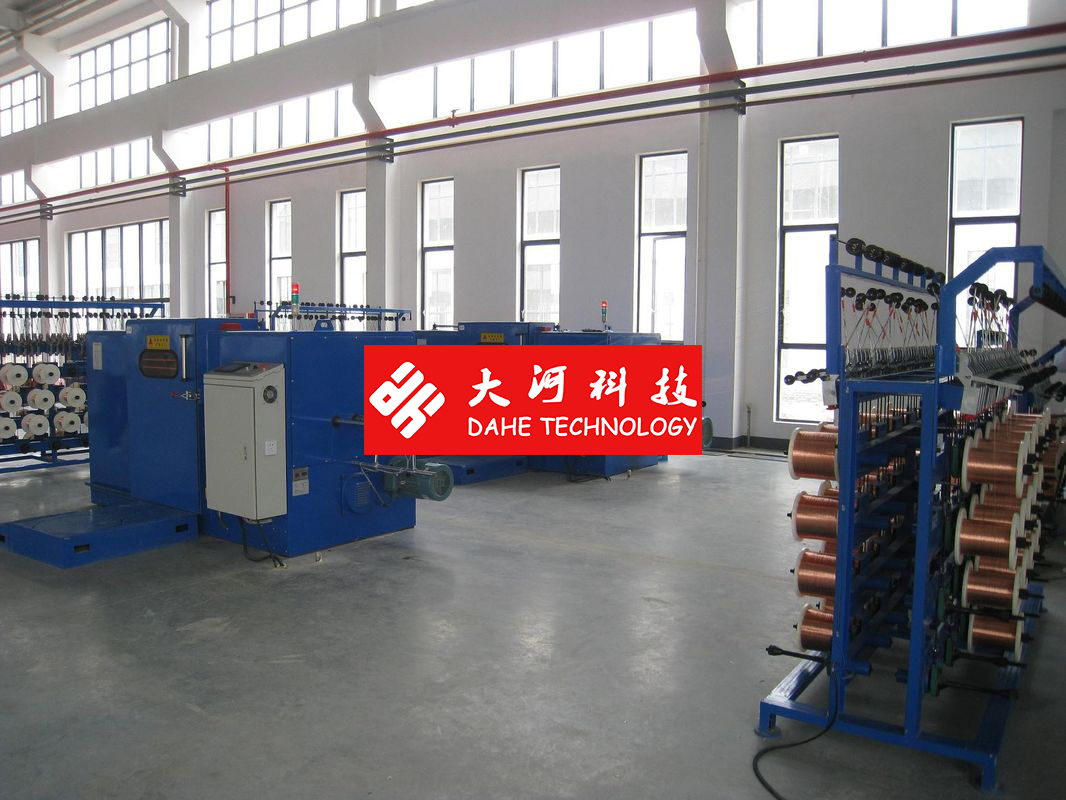

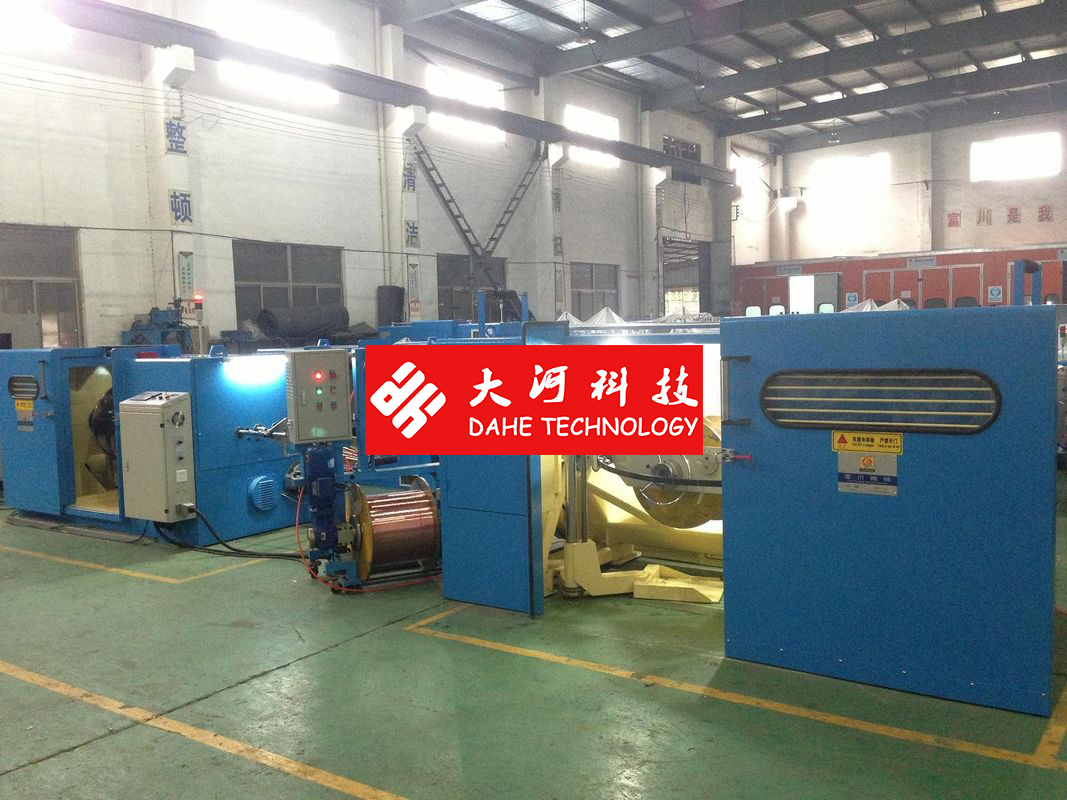

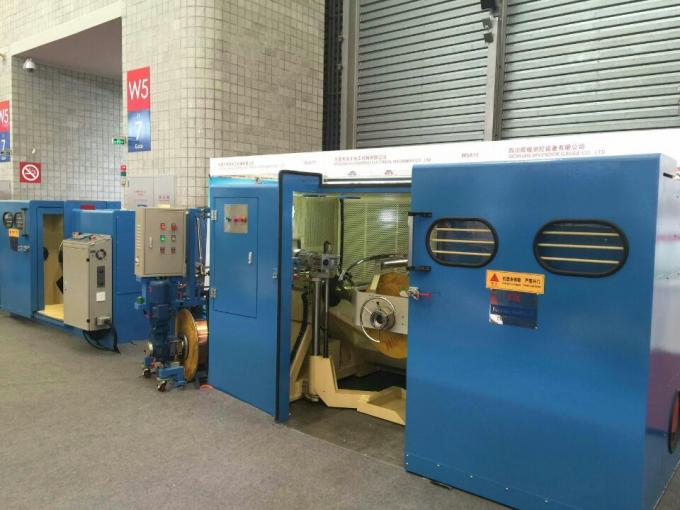

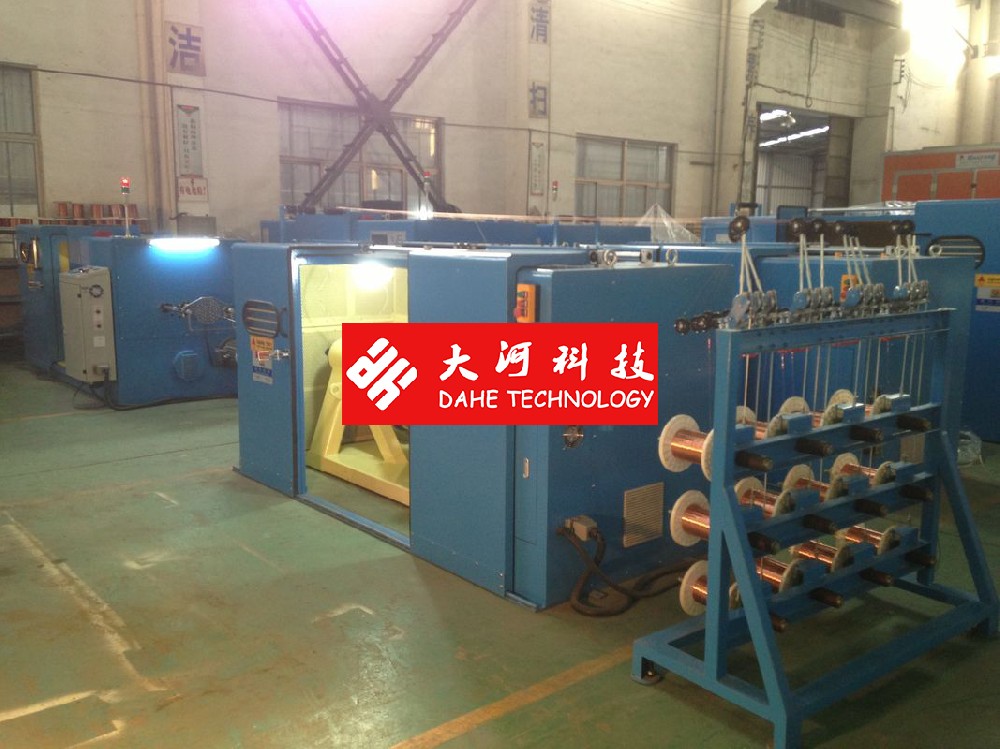

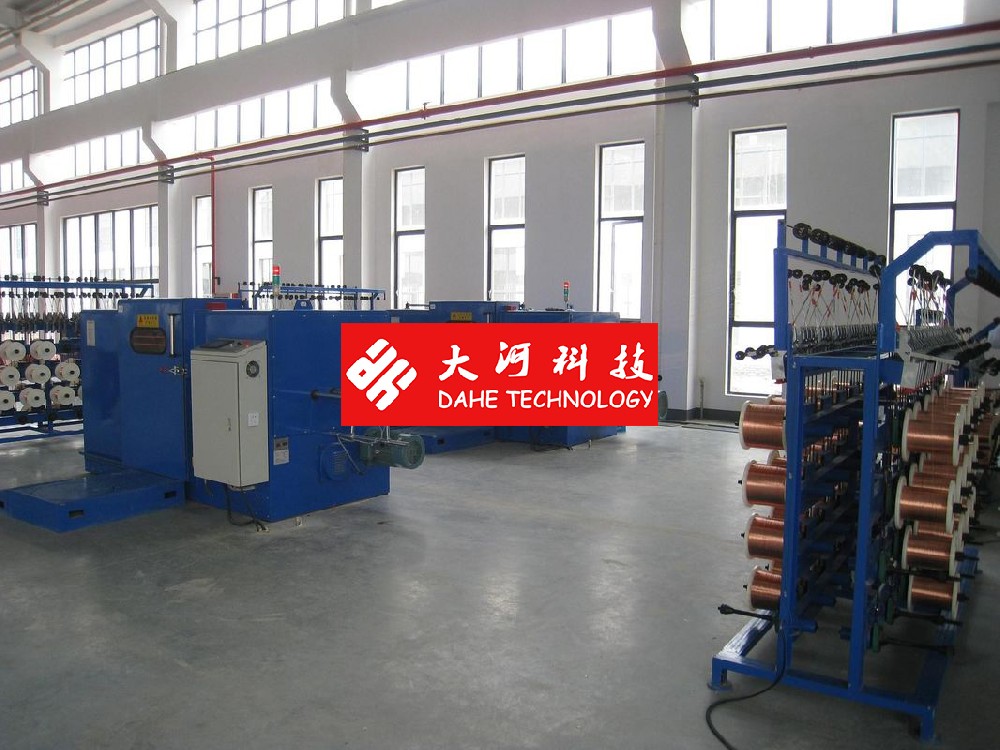

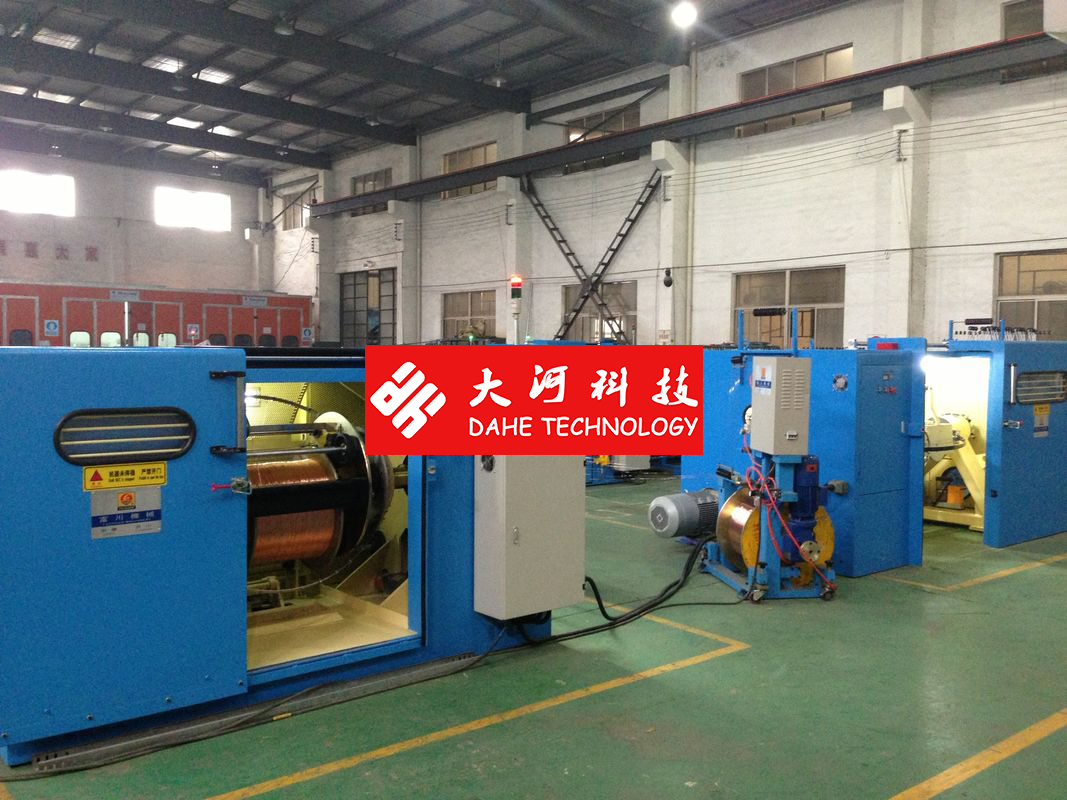

DAHETEC Copper Wire Bunching Machine With Electromagnetic Brake 0.41 / 0.52 / 0.64mm
Quick Details:
Series for 1+6+12 bunching machine 19pcs copper wires φ0.16mm - φ0.64mm in one time
Characteristics:
It is the latest developed machine. This machine replace the model 200 tube bunching machine with the high productivity(It is 4.5times than tube machine for the 1+6+12 conductors normal bunching)low power, small floor place, low noise and other merits.
Specifications:
| Equipment models | 1+6+12(200bobbin) | DHT-1+6+12(630bobbin) |
| Twisting usage | It is applicable to bunching 19pcs copper wires in one time | |
| Single wire dia(mm) | φ0.16-φ0.64 | |
| Stranding section area (mm²) | 0.38-6.0 | |
| Pitch(mm) | 11.6-100(34zones) | |
| Direction of lay | Optional for right or left | |
| Pay off bobbin size | 8inch,9inch | φ630*φ125*475 |
| Max rotating speed | 2000(4000twist) | 2000(4000twist) |

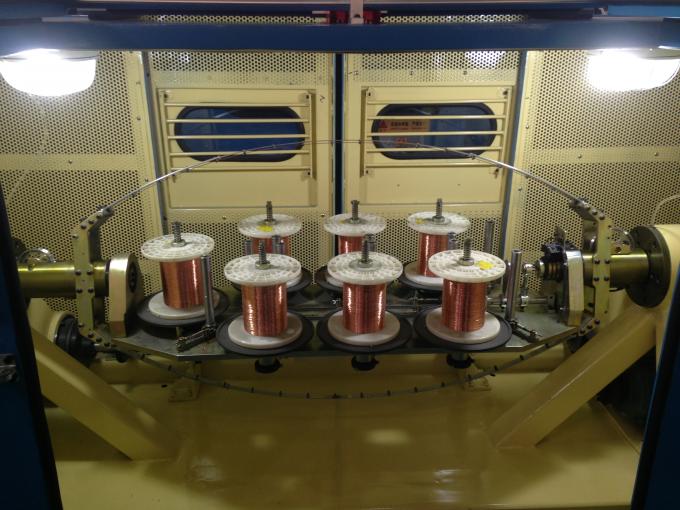

| Pay off type | Mechanical friction | Magnetic tension |
| Pay off machine power | 5.5KW | 7.5KW |
| Take up bobbin size | φ630*φ125*475 | φ630*φ125*475 |
| Pay off Inverter power | 7.5KW | 7.5KW |
| Main motor power | 7.5KW | 7.5KW |
| Take up inverter power | 7.5KW | 7.5KW |
| Tension control method | Touch screen+PLC+magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin | |
| Magnetic powder clutch | 5.0kgf | 5.0kgf |
| Protection | Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived. | |
| Brake mode | Electromagnetic brake | |
| Traversing method | Rolling ring drive units, winding pitch and breadth are adjustable | |
| Operation mode | Touch screen operation | |
| Dimension(mm) | 10000L*2500W*1650H | 10000L*2500W*1650H |
