Product Details:
|
| Color: | Sky Blue | Pay Off Bobbin: | Diameter 500mm |
|---|---|---|---|
| Material: | Low Smoking Non-halogen Flameresistant | Screw Dia: | 50 |
| Operation Mode: | Touch Screen | Also Material: | PP.PE.PVC.HFFR.LSZH.LSOH |
| High Light: | wire stranding machine,cable stranding machine | ||

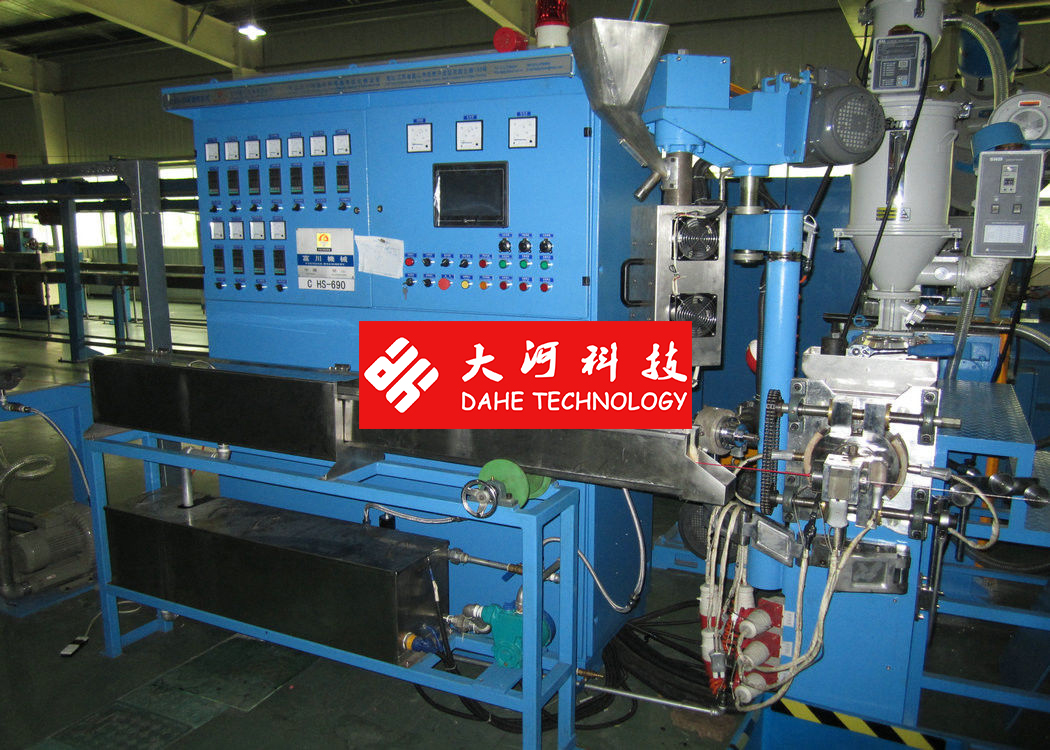

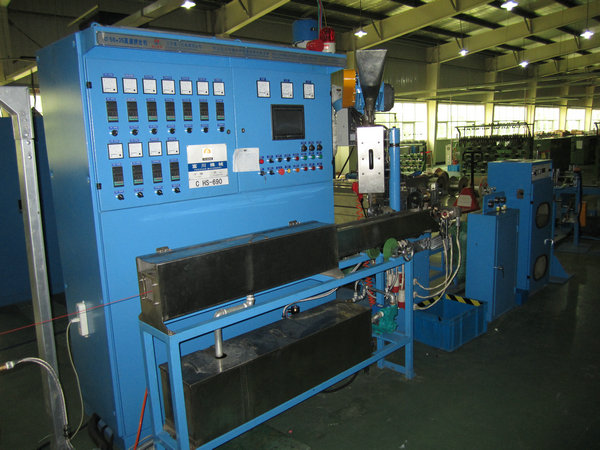

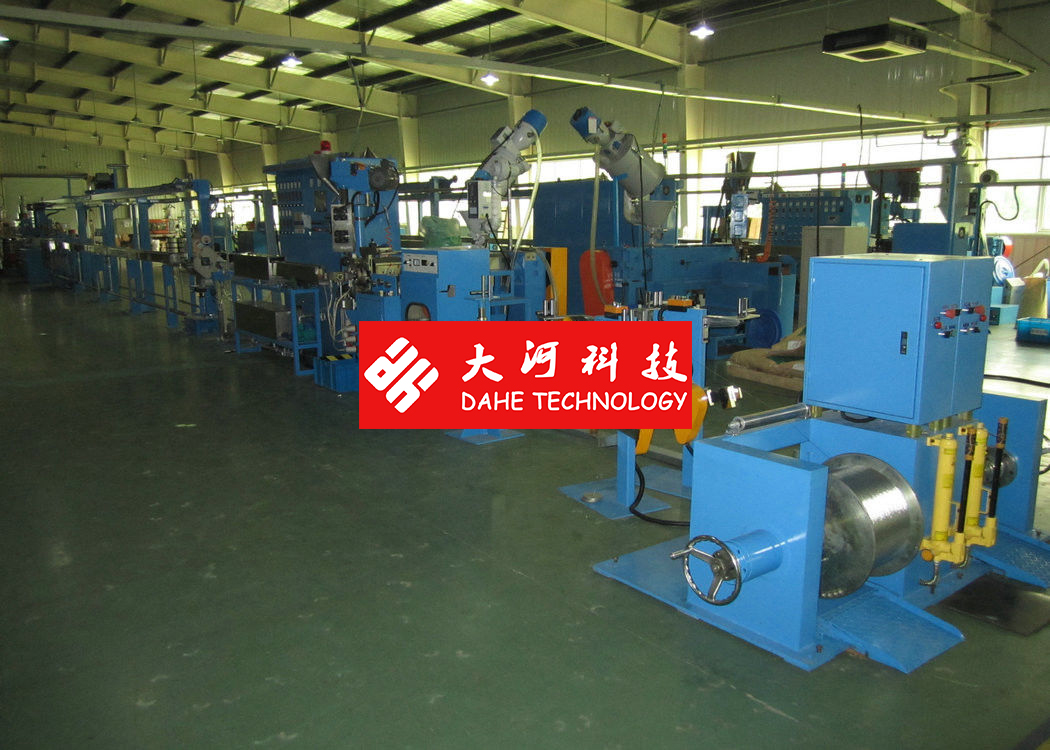

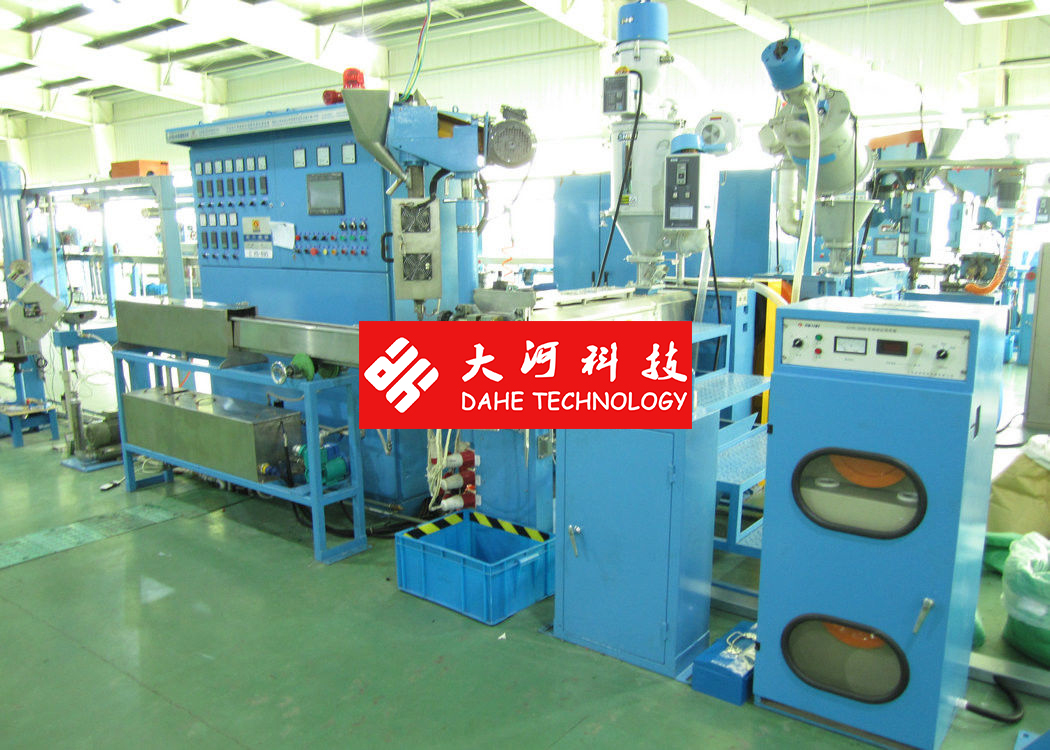

Photovoltaic 50 Cable Extrusion Line Non - Halogen Flame Resistant
Quick Details:
Low smoking, non-halogen extruder line
Photovoltaic extruder line
Usage:
It is applied to PU,NYLON jacket, low smoking non-halogen flame-resistant environmental building wire.
Specification:
| Model | DHT-50 |
| Screw Diameter | Φ50 |
| Screw L/D Ratio | 26:1 |
| Feed wire type | Active pay off or tension pay off |
| Max speed(m/min) | 300 |
| Extrusion output | 70 |
| Power for main machine(KW) | 15 |
| Wire diameter | Φ0.6-4.0 |
| Max accumulator length(m) | 220 |

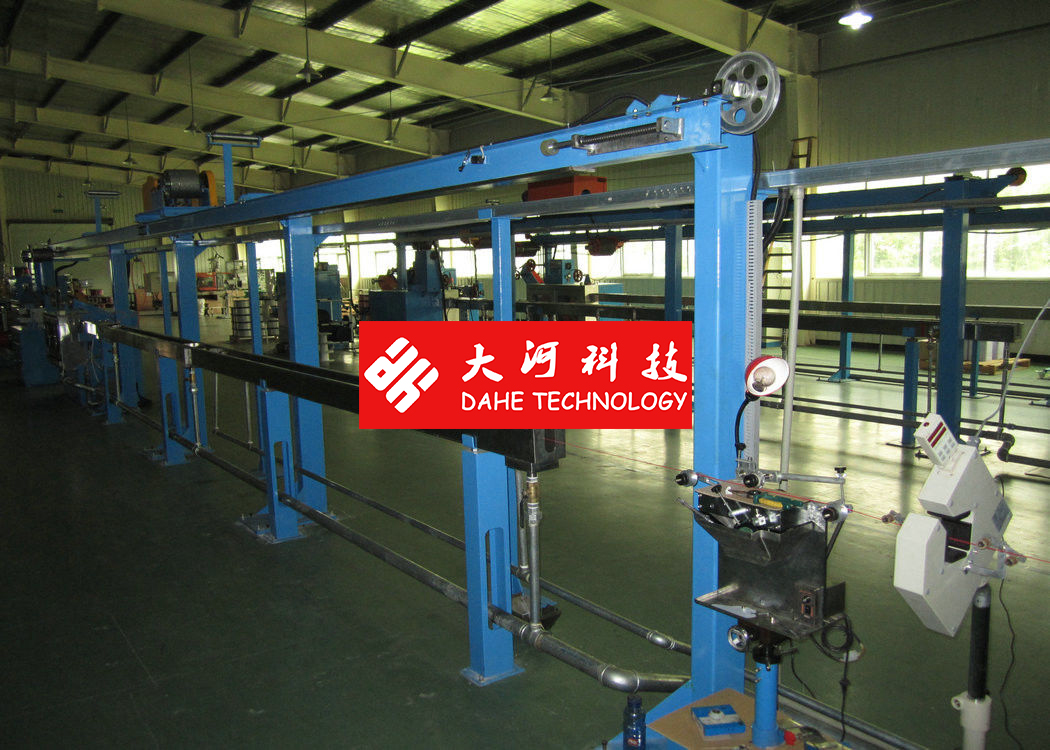

| Accumulator | Horizonal accumulator |

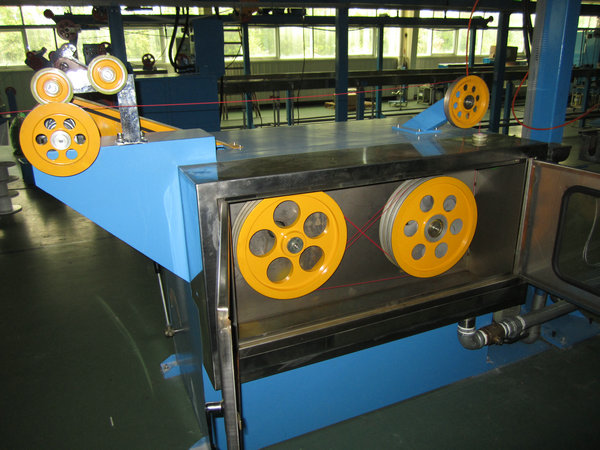

| Cooling channel | Folding W type or U type |
| Capstan diameter | Φ410 |
| Capstan power | 5HP |
| Take up power | 3.7KW |
| Take up type | Double shaft take-up or shaftless take up |
