Product Details:
|
| Color: | Sky Blue | Pay Off Bobbin: | Diameter 500/630/800/1000mm |
|---|---|---|---|
| Material: | PVC,PP,PE,SR-PVC | Screw Dia: | 70 |
| Screw Ratio: | 25:1 | Extrusion Output: | 150 |
| Max Speed: | 800m/min | ||
| High Light: | wire extrusion machine,cable stranding machine | ||
Sky Blue PVC PP Wire Extruder Machine 22Kw 800M / Min Max Speed
Quick Details:

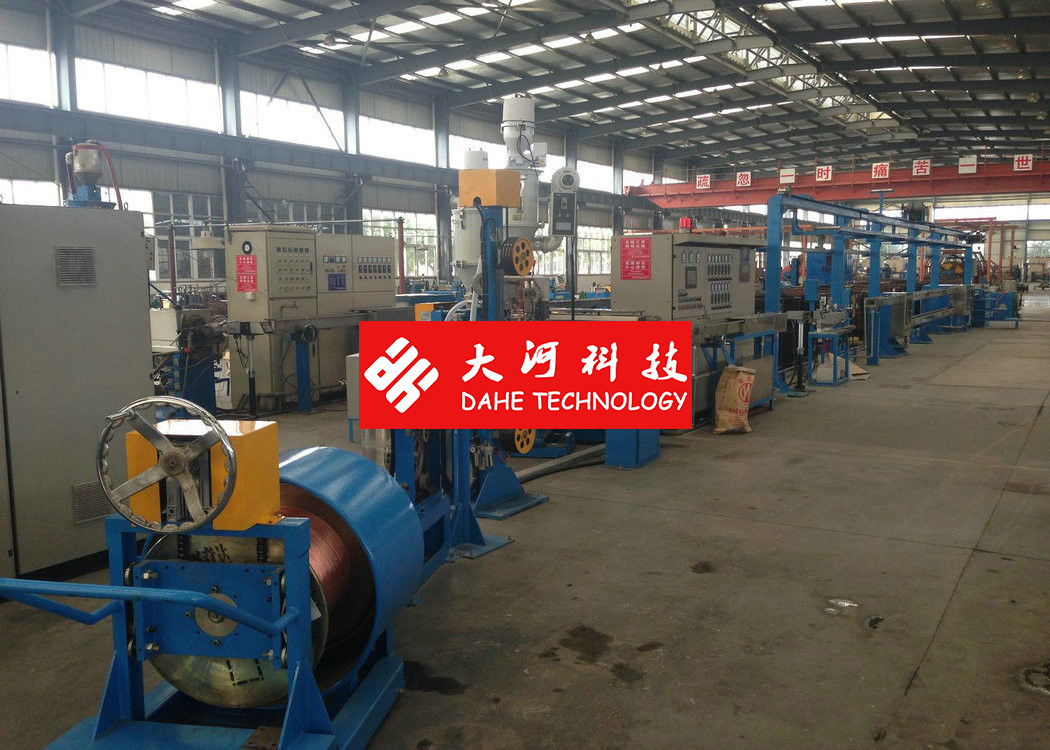

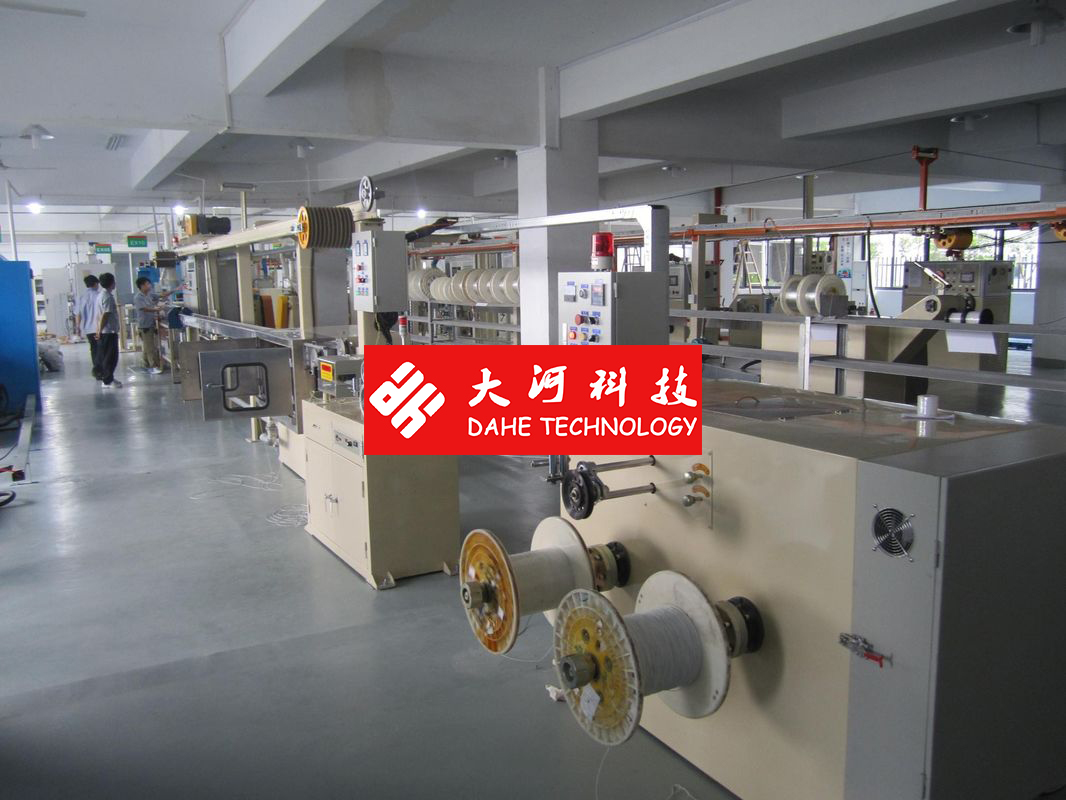

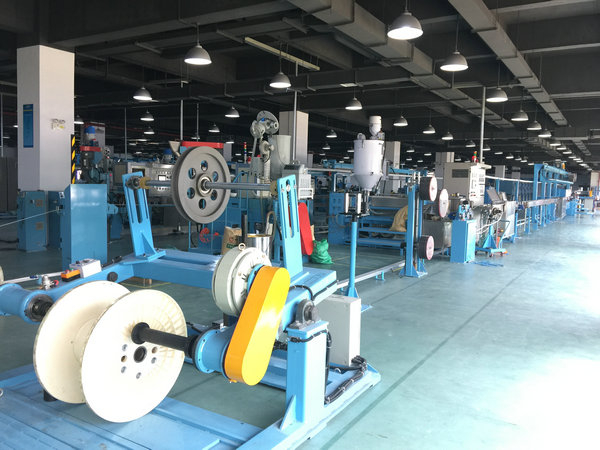

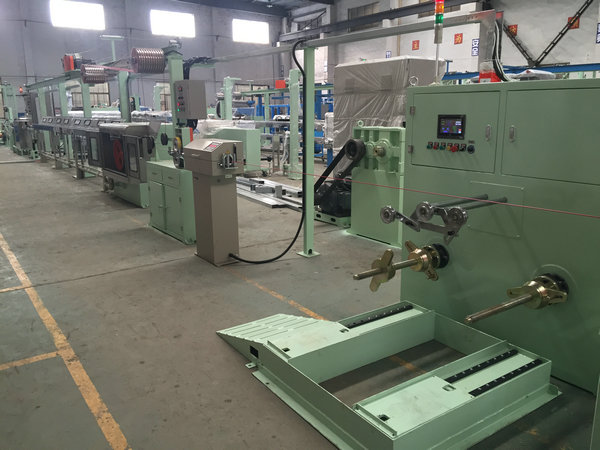

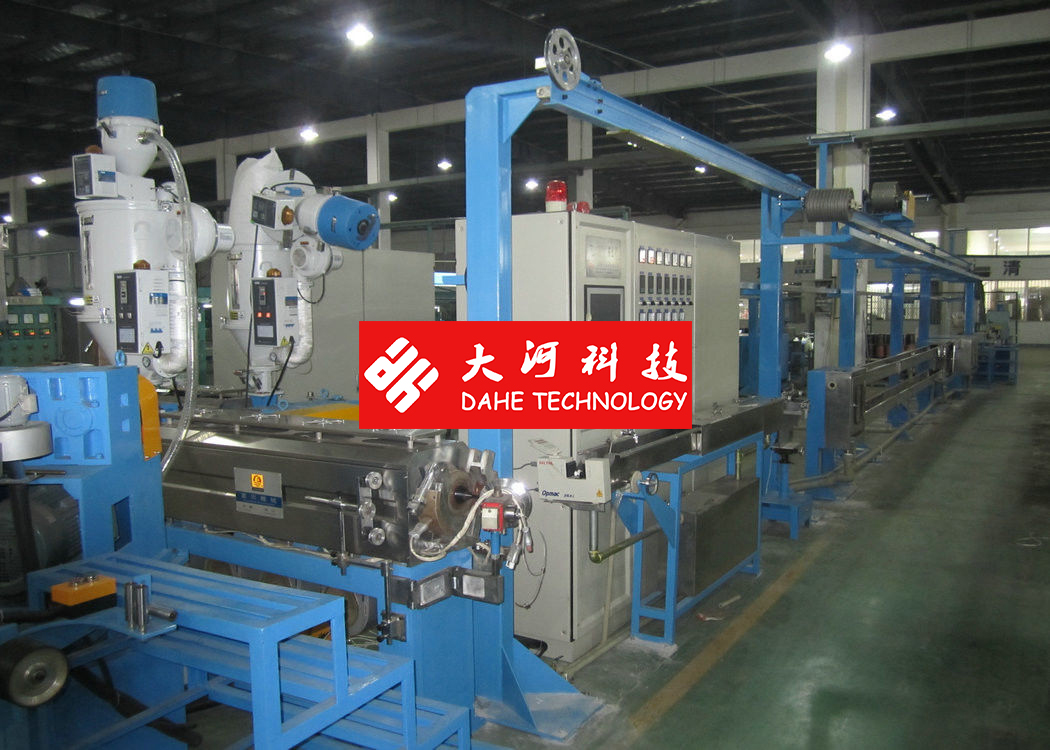

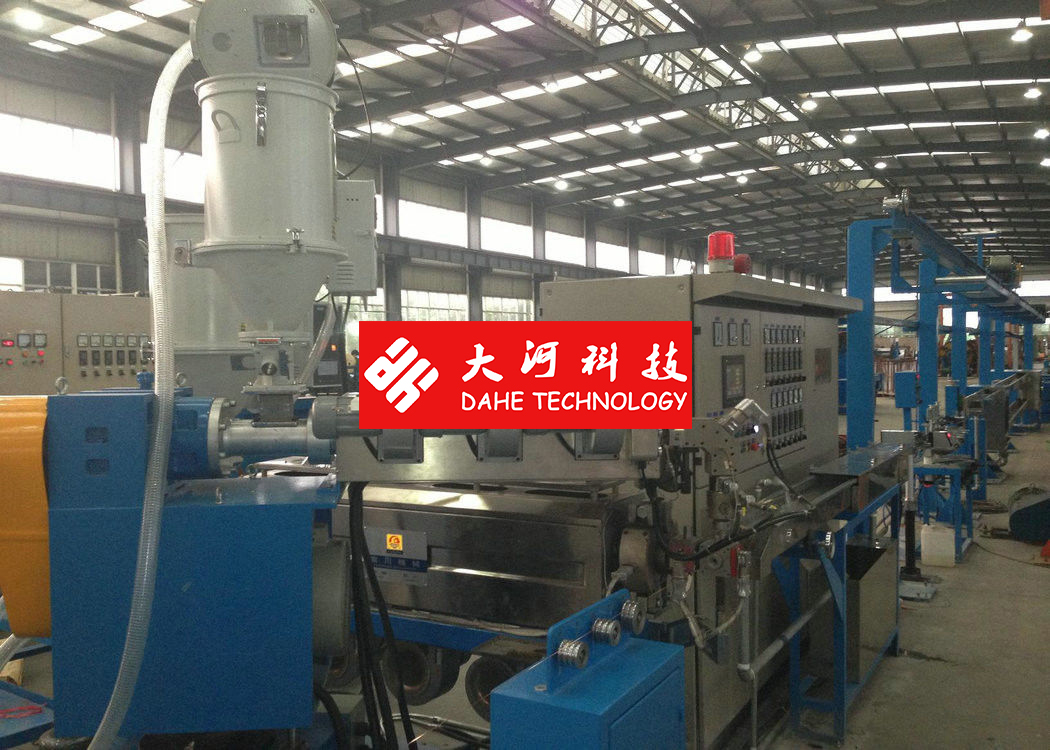

Serial insulating production line
Usage:
It is applied to drawing and extrude BV building wire, LAN cable and local cable.
Characteristics:
Specification:
| Usage | BV building wire |
| Inlet copper wire diameter | Φ2.5-3.0mm |
| Outlet copper wire diameter | Φ0.8-1.78mm |
| Extrusion finished wire diameter | Φ2.0-5.0mm |
| Max speed | 300 |
| Max die number | 17 |
| Mechanical reduction ratio | 20% |
| Capstan reduction ratio | 15% |
| Drawing machine power | 45KW |
| Annealing type | DC 3phase |
| Accumulator | Vertical accumulator |
| Extruder main machine | DHT-70+35 |
| Injection machine | 35horizonal injection machine |
| Extruder main machine power | 22KW |
| printer | Double printer |
| Cooling tank | Double layers |
| Capstan | 510double wheels |
| Accumulator | horizonal |
| Take up | Shaft or coiling machine |
