Product Details:
|
| Color: | Sky Blue Or Grass Green | Pay Off Bobbin: | Diameter 500/630/800/1000mm |
|---|---|---|---|
| Material: | Pvc Wire Making Machine | Screw Dia: | 80 |
| Screw Ratio: | 26:1 | Extrusion Output: | 150 |
| Max Speed: | 700m/min | ||
| High Light: | wire extrusion machine,wire stranding machine | ||
Flexible Wire Extruder Machine , Sheathed Wire Cable Extrusion Machine

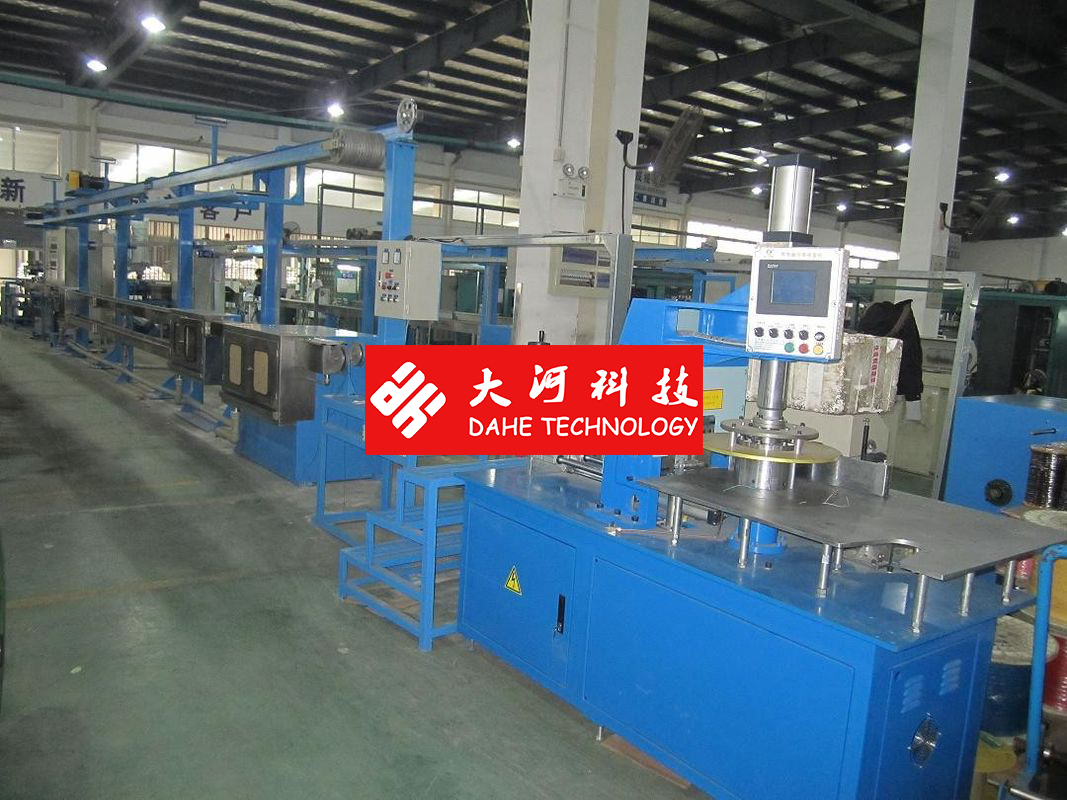

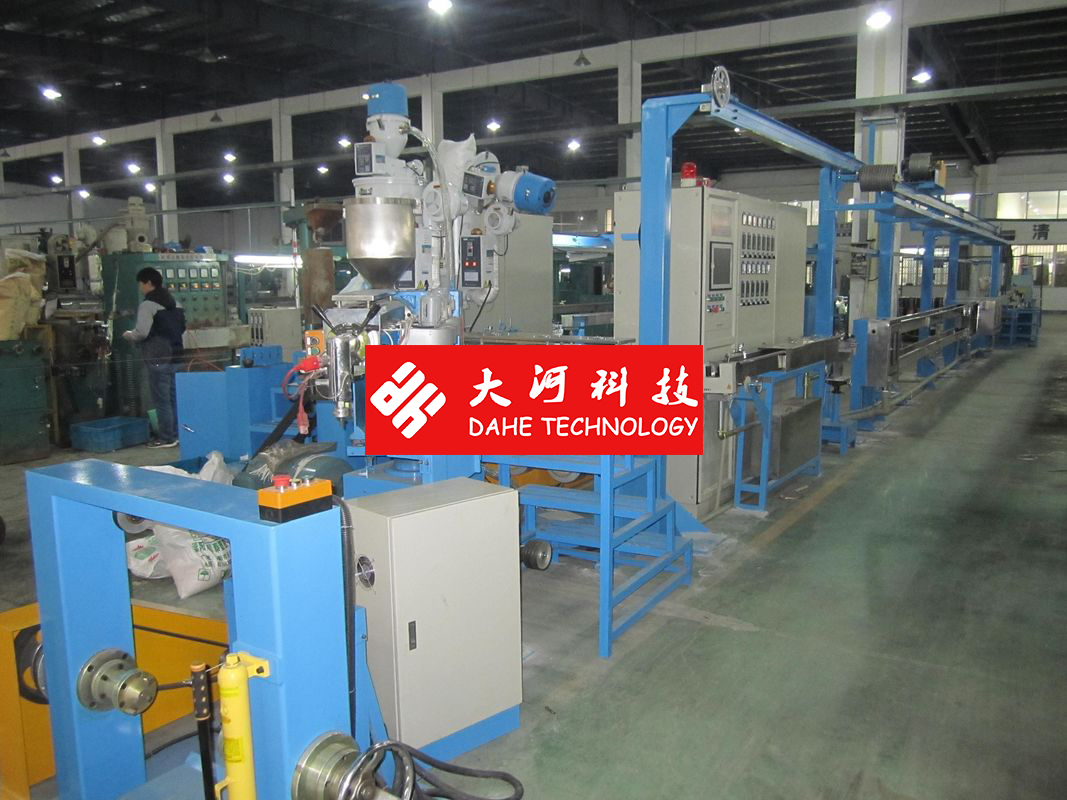

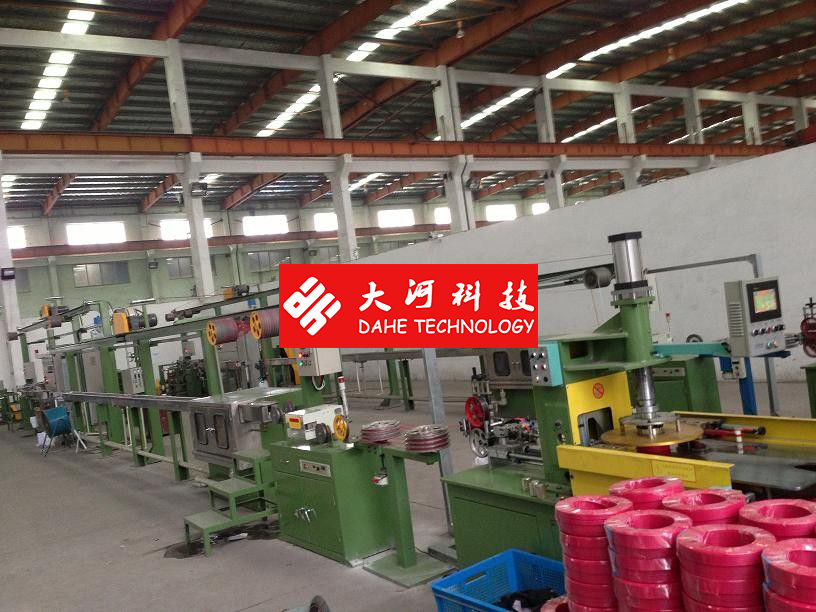

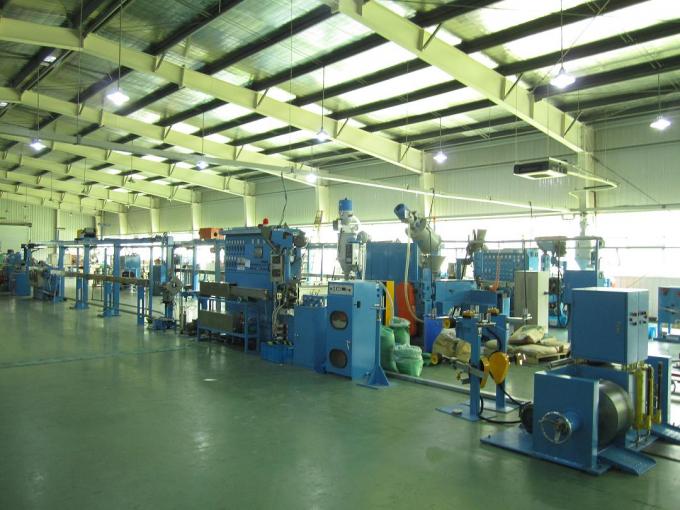

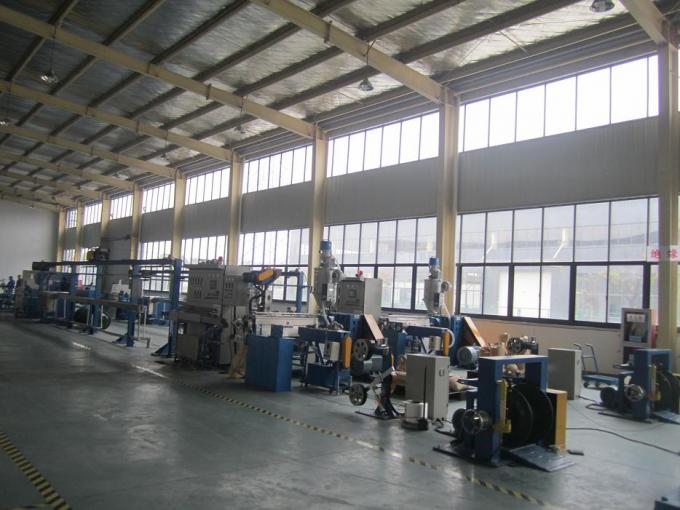

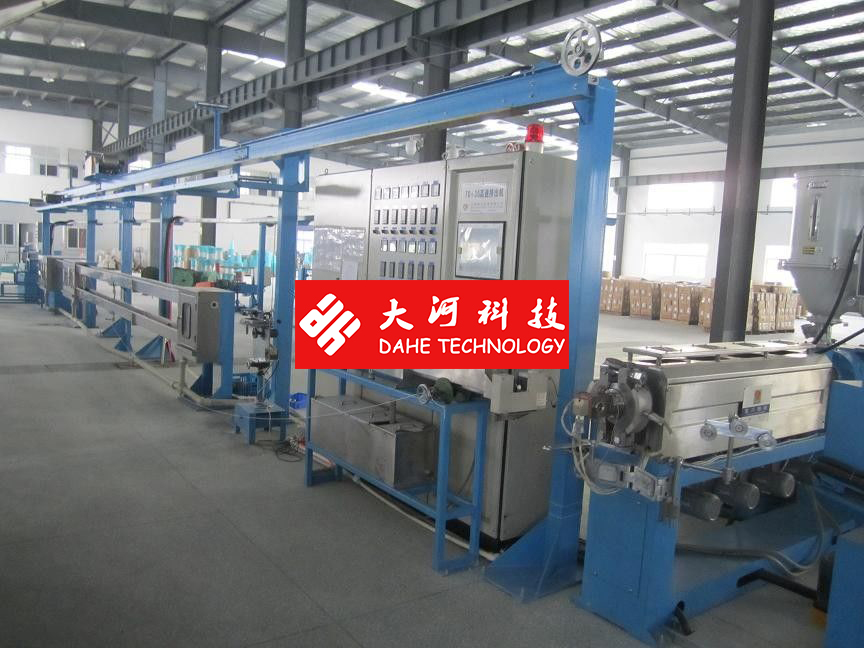

Automobile wire high speed extruder line
Usage:
It is applied to extrude the PVC,PP,PE,SR-PVC and other plastic material for the automobile wire,insulated jacketed.
Device structure:
Lut barrel up pay off machine,straighten ,main machine,injection machine,control case,water tank,double
wheel capstan,accumulator,double shaft take up and other equipments. The choice equipments: copper wire pre-heater,printer,OD measuring instrument,spark tester and PLC control or IPC operation. Save,display and revise technology parameter,remote control.
1. Mechanical model: DHT-70+35
2. Pay off type: 500-630active pay off or lut barrel up pay off
3. Screw dia: 80
4. Screw ratio: 26:1
5. Revolving speed of screw: max 100rpm
6. Extrusion output: 150kg/h
7. Main power: 22kw
8. Wire diameter: 1.0-6.0mm
9. Cooling device: monolayer/double layer model U
10. Take up type:1246 automatic coiling machine,the plum blossom falls barrel machine,shaft type.
